For starters
- Color-wheel with motor for T-36
- Spot and motor delivered with installed power cord and safety plug
- Use with alternative illuminants having differing beam angles (flood) is possible

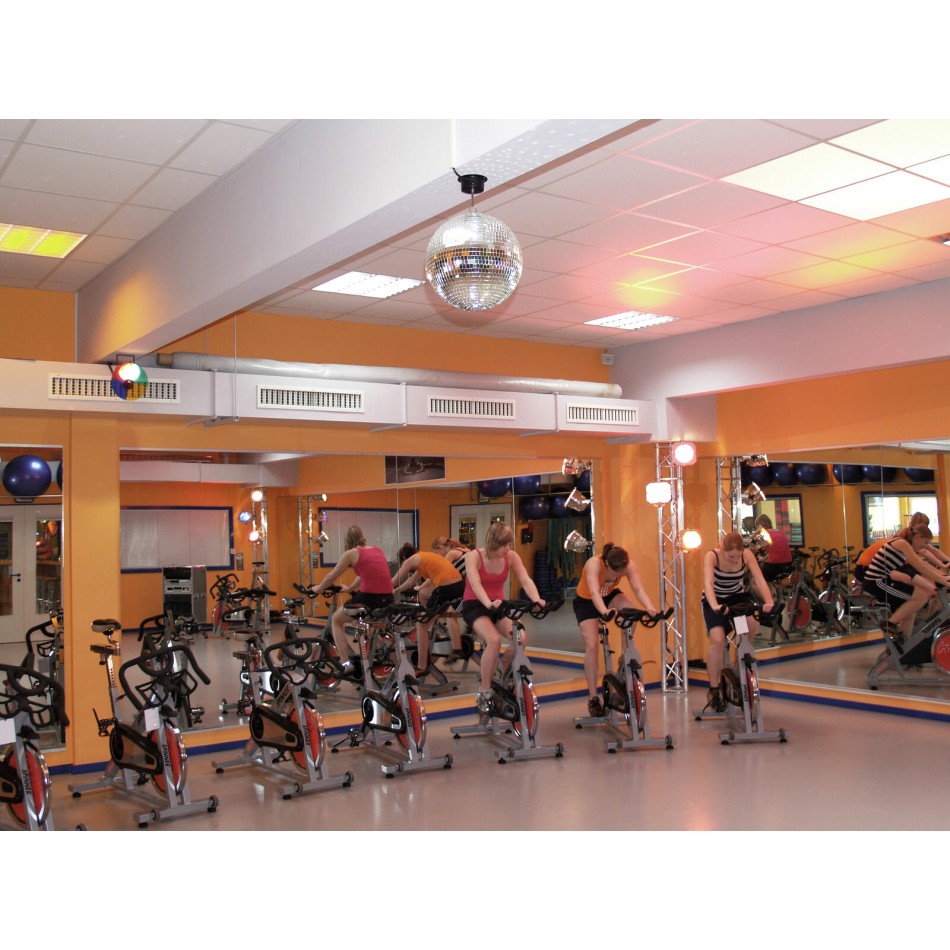

- For application areas such as: Clubs/dancing school; decoration; party room; restaurants, bars and hotels
- Very quiet working noise
color wheel
- Color wheel with red, green, yellow, blue
illuminant
- Dimmable
- Hot restrike
- Very high color rendering index (CRI)
spotlight
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
motor for color wheel
- Control via plug and play

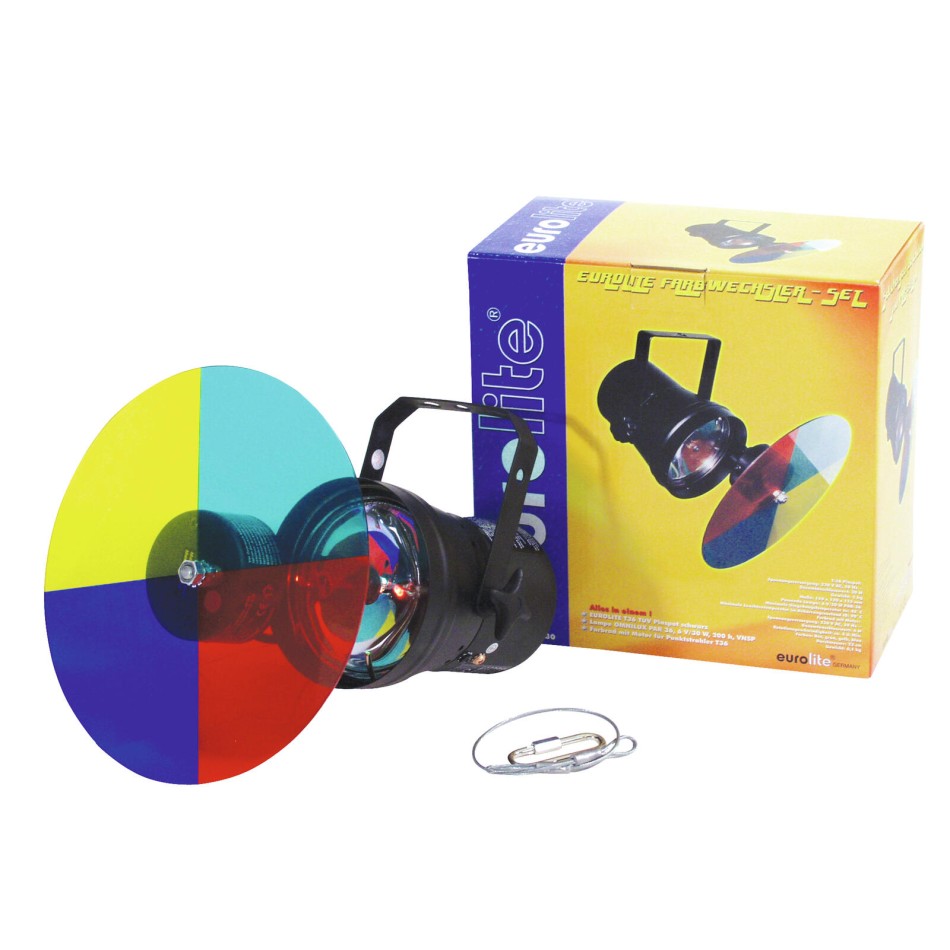

Scope of delivery
- 1 x spotlight
- 1 x illuminant
- 1 x motor for color wheel
- 2 x nut
- 1 x color wheel
- 1 x safety bond
- 1 x chain link
- 1 x lamp clamping ring
- 1 x user manual
| Weight: | 1.55 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Spotlight | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | Max. 6.4 V/30 W PAR-36 G-53 STC |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 0.9 m |
| Base: | Wires |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Output: | 6.4V AC; |
| Dimensions: | Length: 16 cm Width: 15.5 cm Height: 17 cm |
| Weight: | 1 kg |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø10mm; 1 x Ø8mm |
| Material: | Metal, 2 mm |
| Illuminant | |
| Voltage (lamps): | 6.4 V |
| Nominal wattage: | 30 W |
| Base: | G-53 STC |
| Lamp type: | Halogen lamp; clear lamp |
| Lamp specification: | Dimmable Hot restrike |
| Beam angle (1/2 peak): | 6° |
| Color of light: | Warm white WW <3300 K |
| Color rendering index (CRI): | 99 Ra |
| Energy efficiency class (A - G): | G |
| Motor for color wheel | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 0.9 m |
| Speed: | 2.5 RPM |
| Control: | Plug and play |
| Maximum load: | 1 kg |
| Housing color: | Black |
| Dimensions: | Length: 10 cm Height: 7.5 cm |
| Weight: | 0.3 kg |
| Color wheel | |
| Color generation: | Color wheel with red, green, yellow, blue |
| Diameter mounting holes: | 1 x Ø8mm |
| Material: | Plastic |
| Dimensions: | Width: 0.2 cm Diameter: Ø 23 cm |
| Lamp clamping ring | |
| Material: | Metal |
| Color: | Silver |

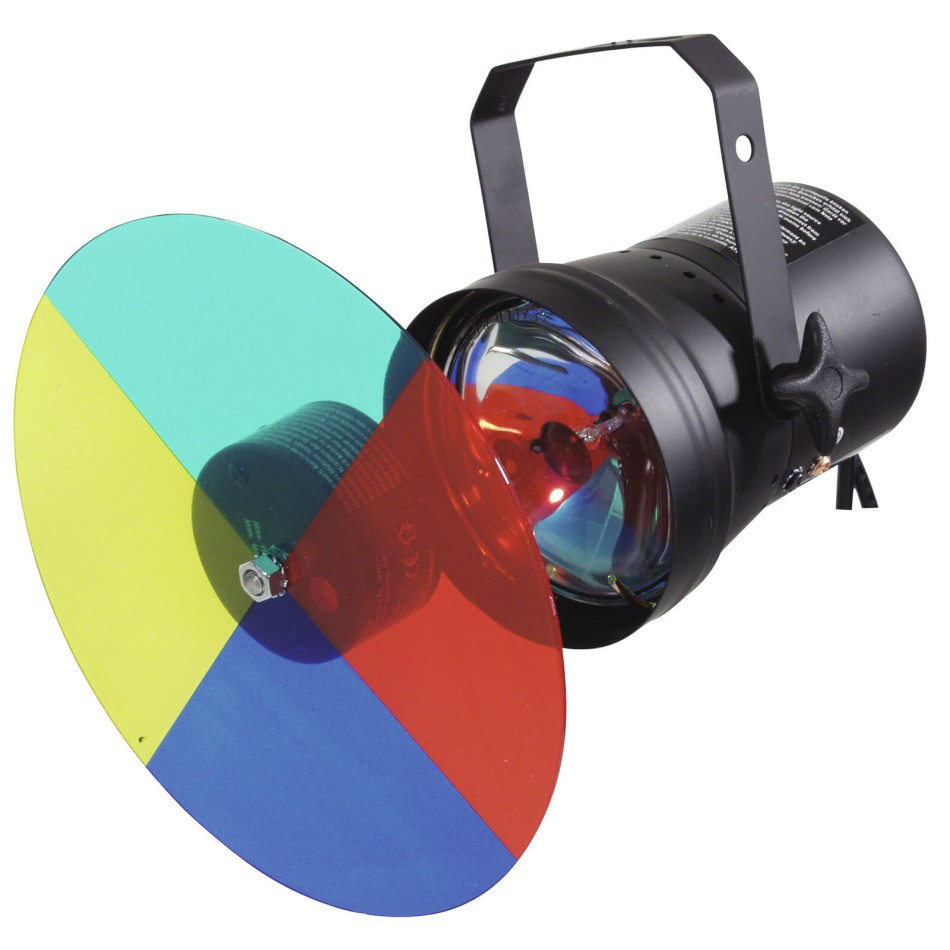

EUROLITE Color Changer Set + PAR-36-pinspot
- Gamintojas: EUROLITE
- Prekės kodas: 50800530
- Pristatymas: Išparduota
- 60.38€
