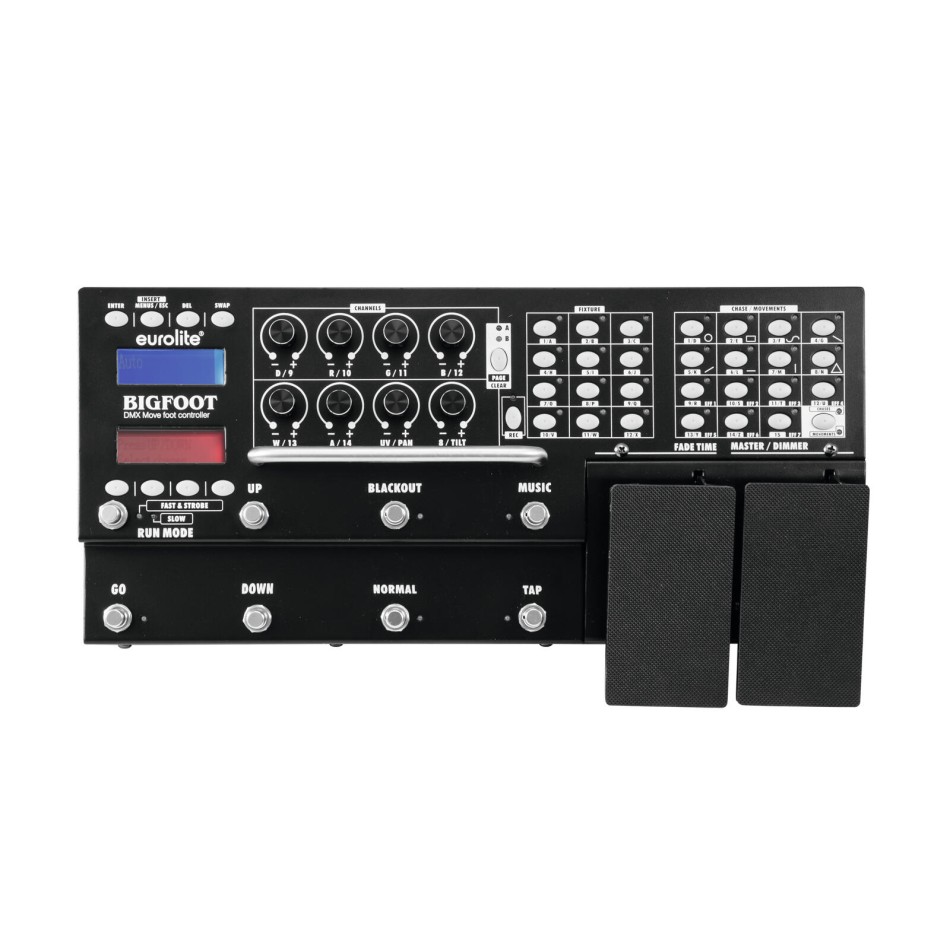

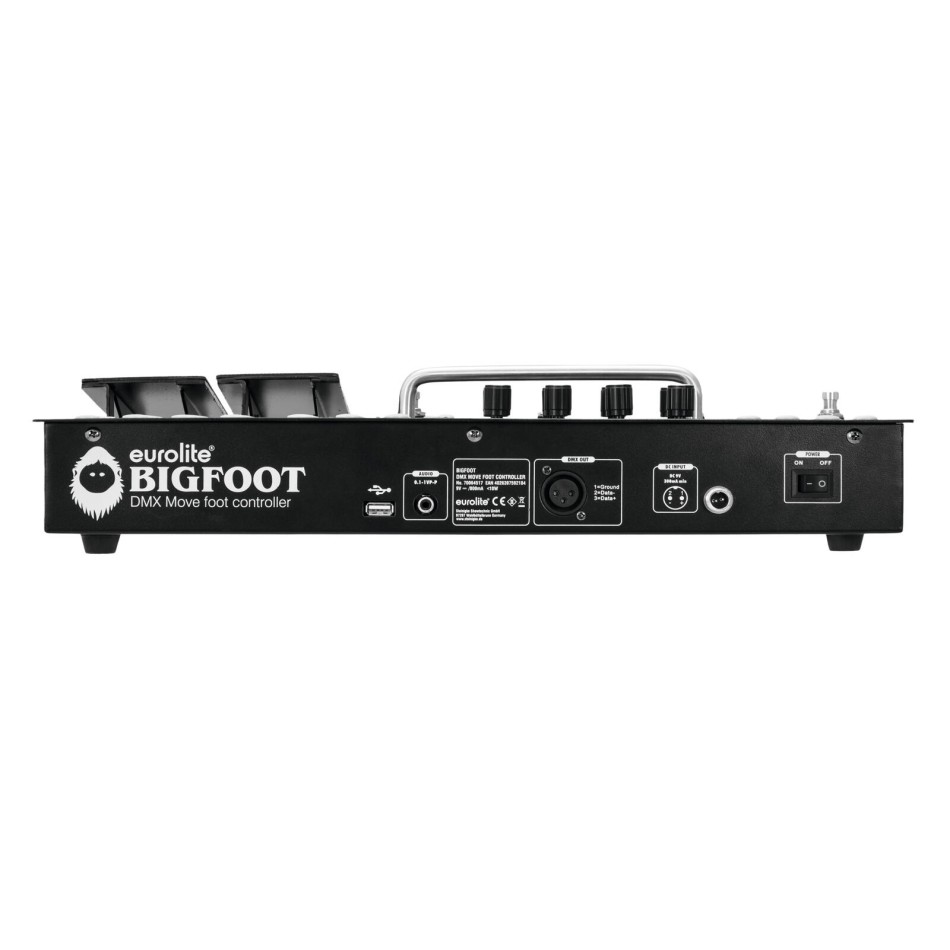

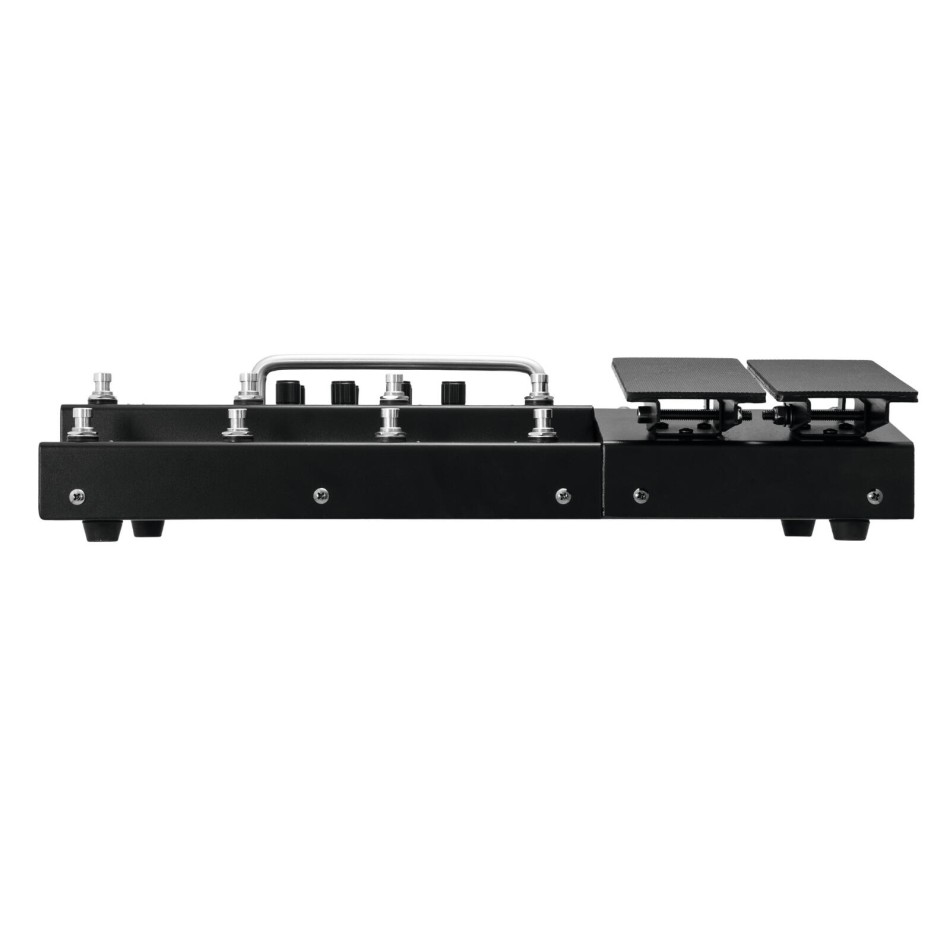

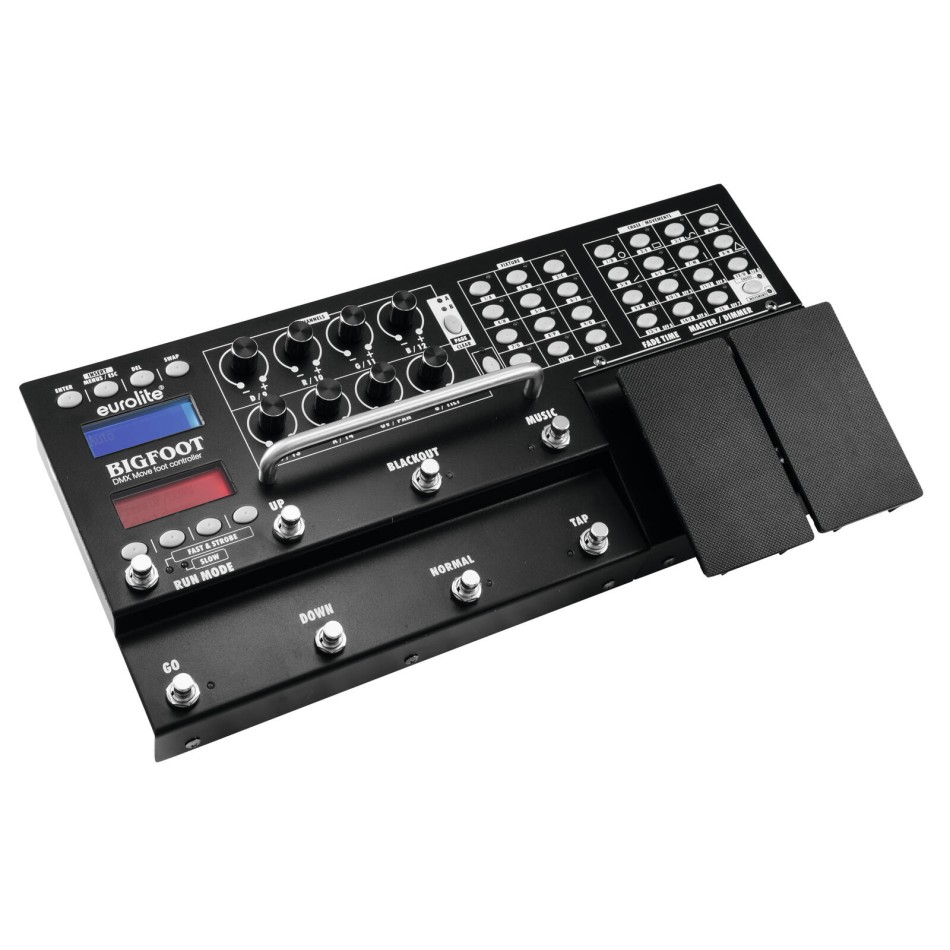

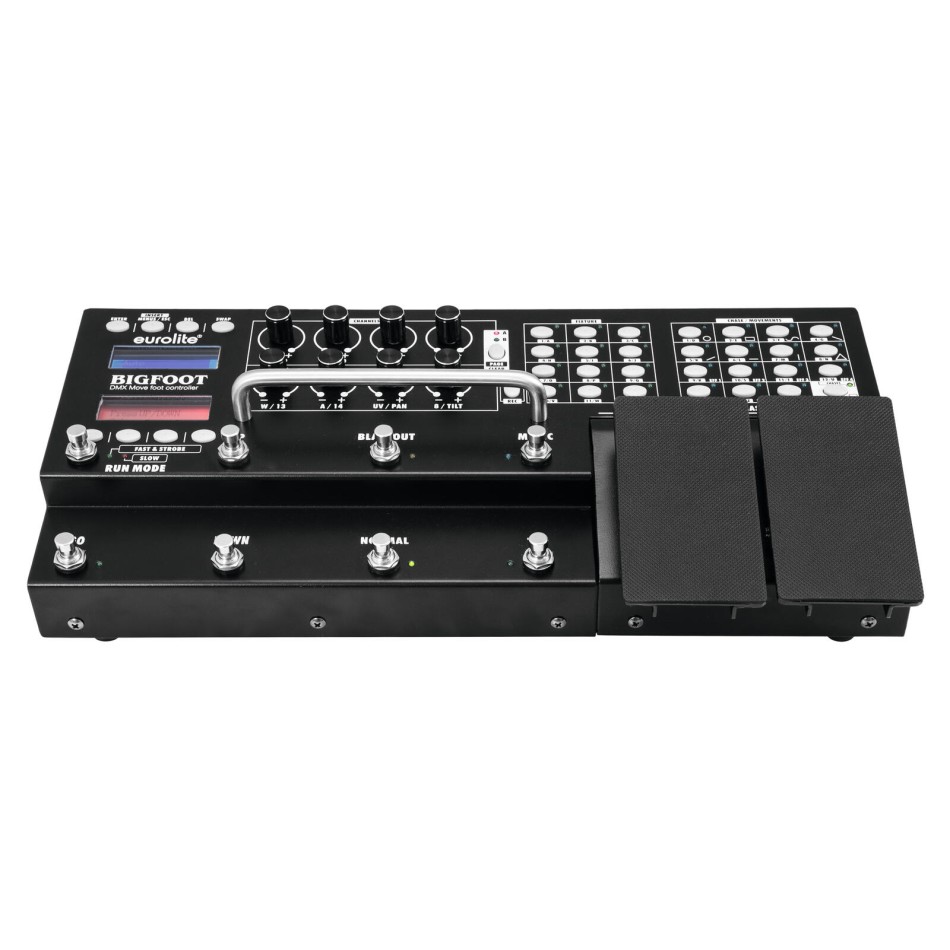

A full-fledged DMX light controller in a foot bar, with FX generator
- Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
- For 12 fixtures with max. 16 control channels each
- USB port for storing program data
- Quick programming thanks to the integrated FX generator with movement patterns and color effects
- Several effects can be used simultaneously
- 15 programmable chases with a total of 100 steps can be stored
- Programs can be freely named
- Simply preselect the desired program and trigger it with GO
- Beat control via music signal or TAP button
- Convenient control of dimmer, fade time and other functions by foot
- 8 encoders on 2 levels for adjusting DMX values
- Blackout function
- 2 x backlit LCD (2 x 16 characters each)
- Sound control via built-in microphone or line input
- RDM support (DMX address setup and identify)
- 3-pin XLR connector
- Firmware update via USB
- Solid metal housing with handle
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | <10 W |
| Number of control channels: | 192 |
| Storable chases: | 15 with 100 steps max. |
| DMX512/RDM output: | 3-pin XLR connector |
| Available storage media: | USB devices (FAT32) |
| Sound control: | via built-in microphone or via audio input |
| Audio input: | RCA |
| Input sensitivity: | 0.1-1 V |
| Dimensions (LxWxH): | 450 x 240 x 100 mm |
| Weight: | 4.5 kg |
| Shipping weight: | 5.00 kg |
EUROLITE DMX Move Bigfoot foot controller 192
- Gamintojas: EUROLITE
- Prekės kodas: 70064517
- Prieinamumas: Sandėlyje
- 301.29€
