2 in/8 out DMX splitter/merger with RDM support and real-time DMX monitoring
- DMX modes: LTP, HTP, merge or backup
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- Control via RDM
- Multicolor OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Installation; stage; theater; rental
- Silent operation
- Application possibility: Standing
Scope of delivery
- 1 x device
- 1 x power cord
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | 1.45 m |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator |
| Control: | RDM |
| Housing color: | Black |
| Attachment system: | M10 thread |
| Display type: | Multicolor OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Mounting depth: | 23 cm |
| Dimensions: | Width: 48.3 cm Depth: 16 cm Height: 4.4 cm |
| Weight: | 2.23 kg |
| Noise classification: | Class 0 (no noise at all) |

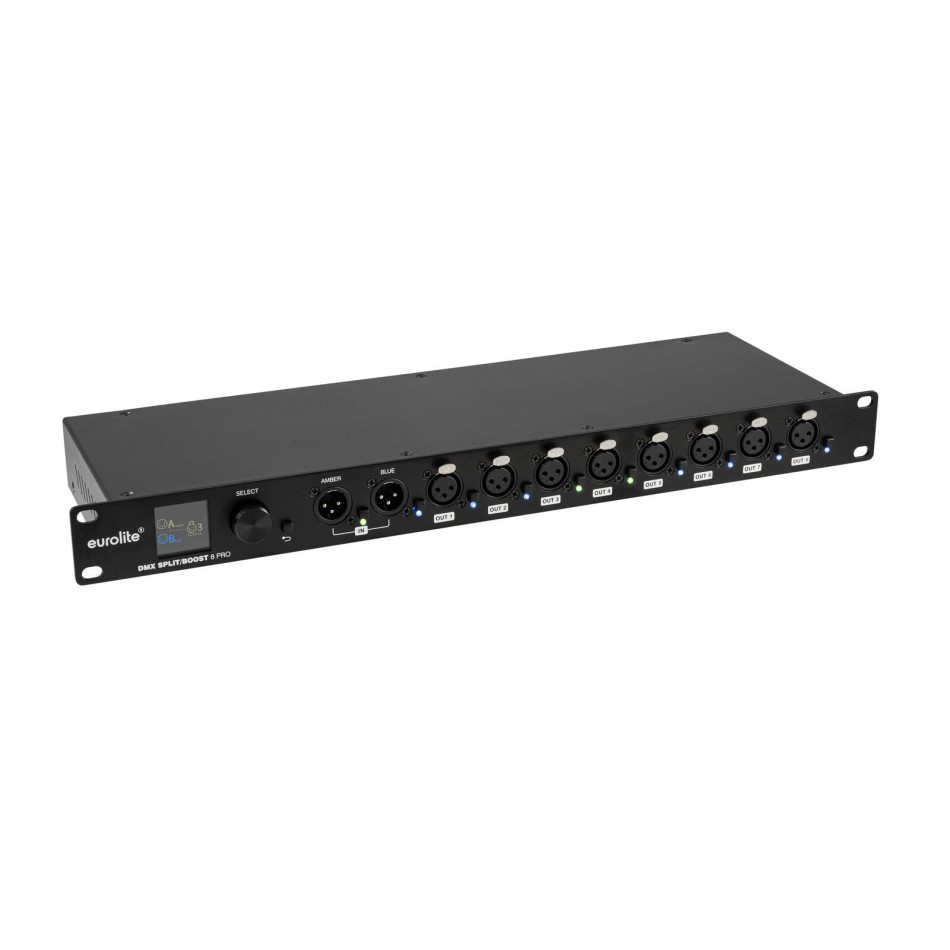

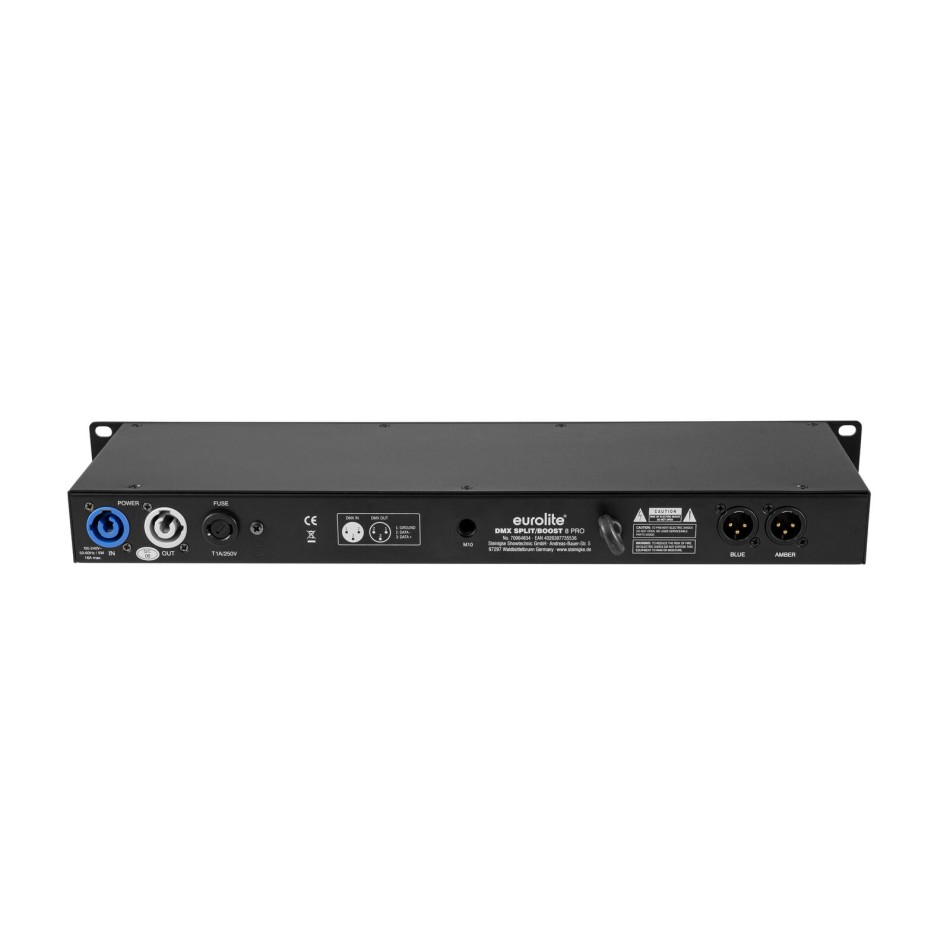

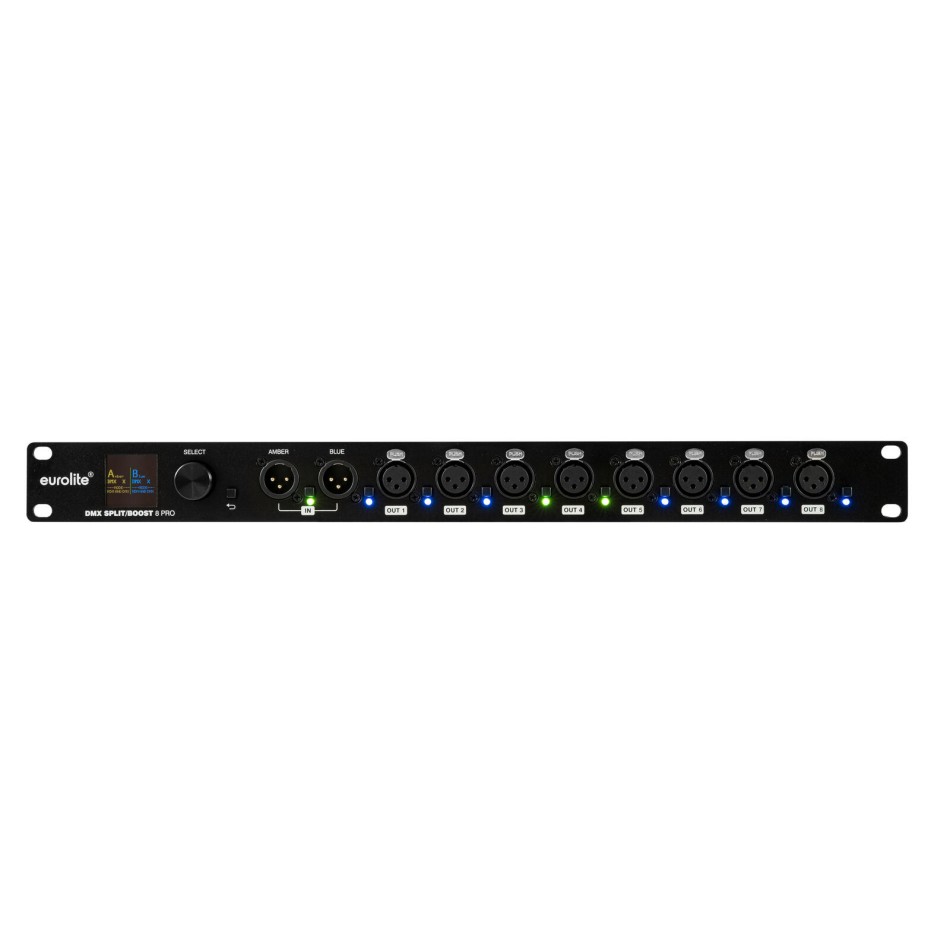

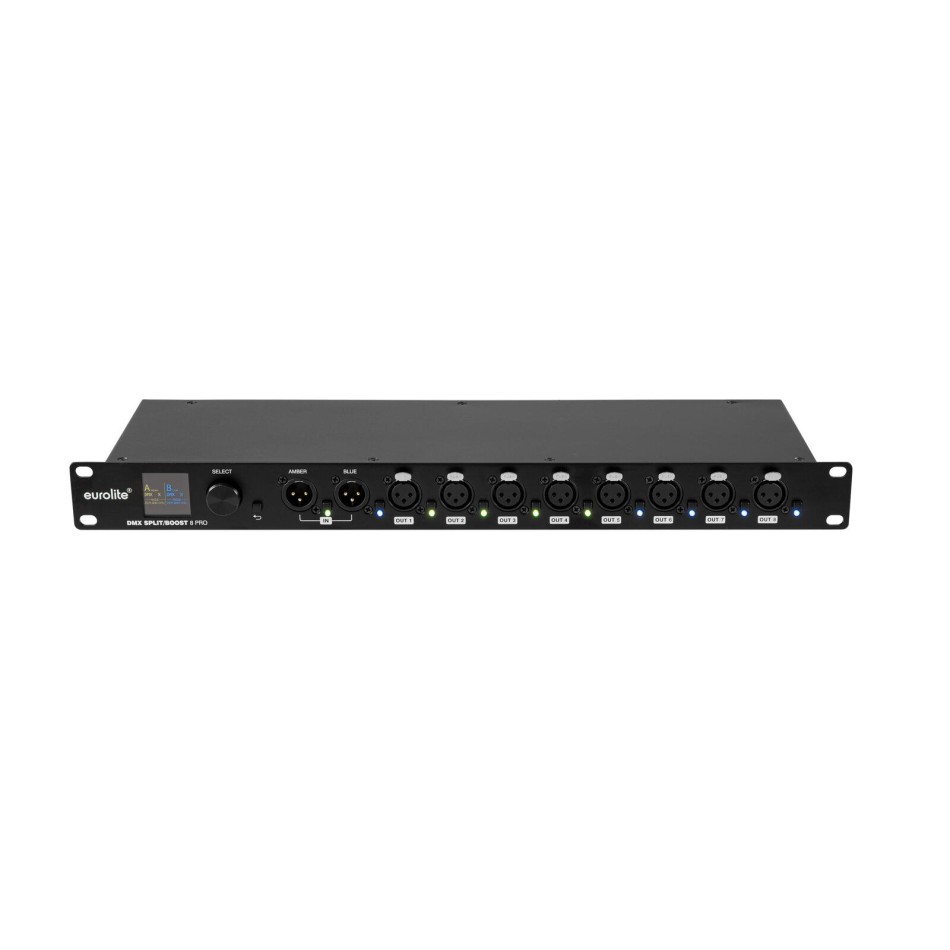

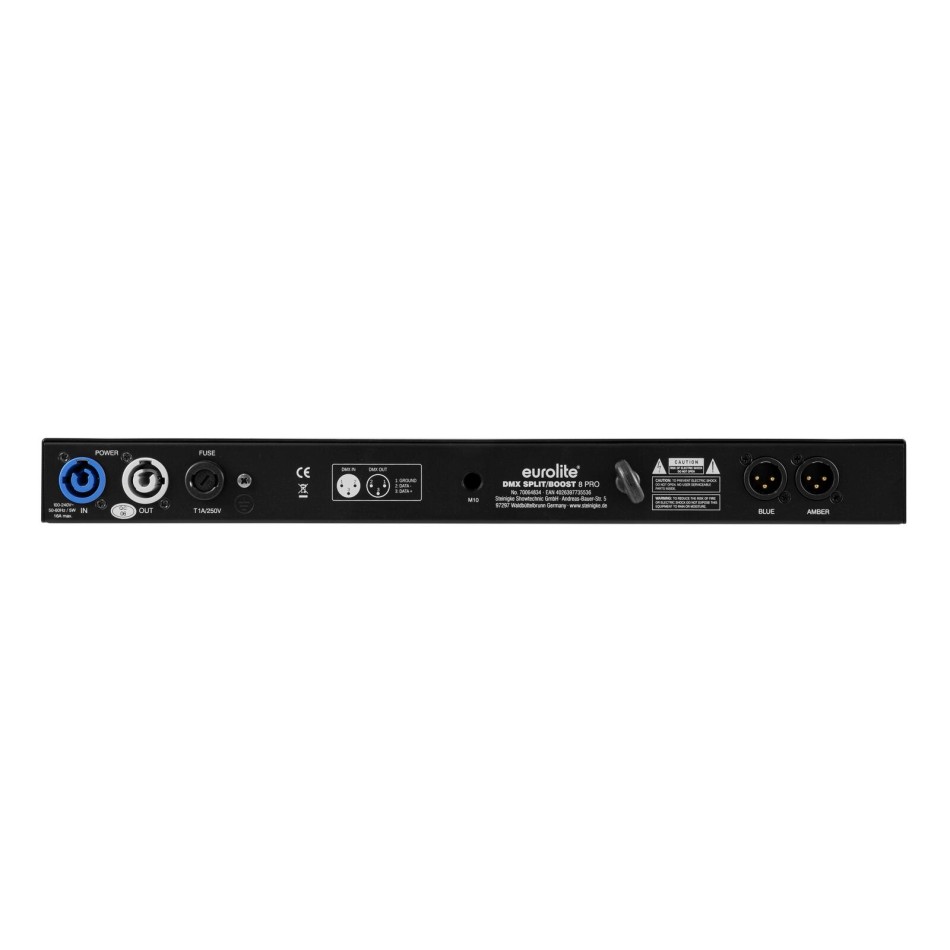

EUROLITE DMX Split/Boost 8 PRO 3-pin
- Gamintojas: EUROLITE
- Prekės kodas: 70064834
- Pristatymas: Išparduota
- 458.59€
