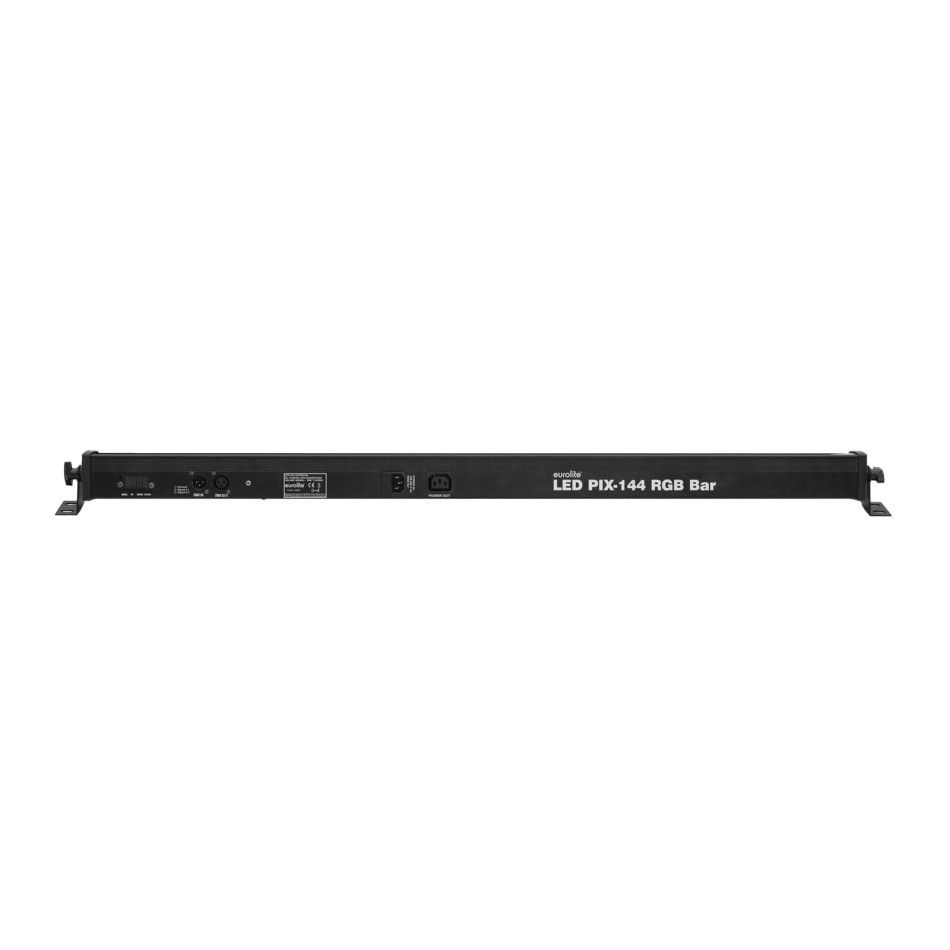

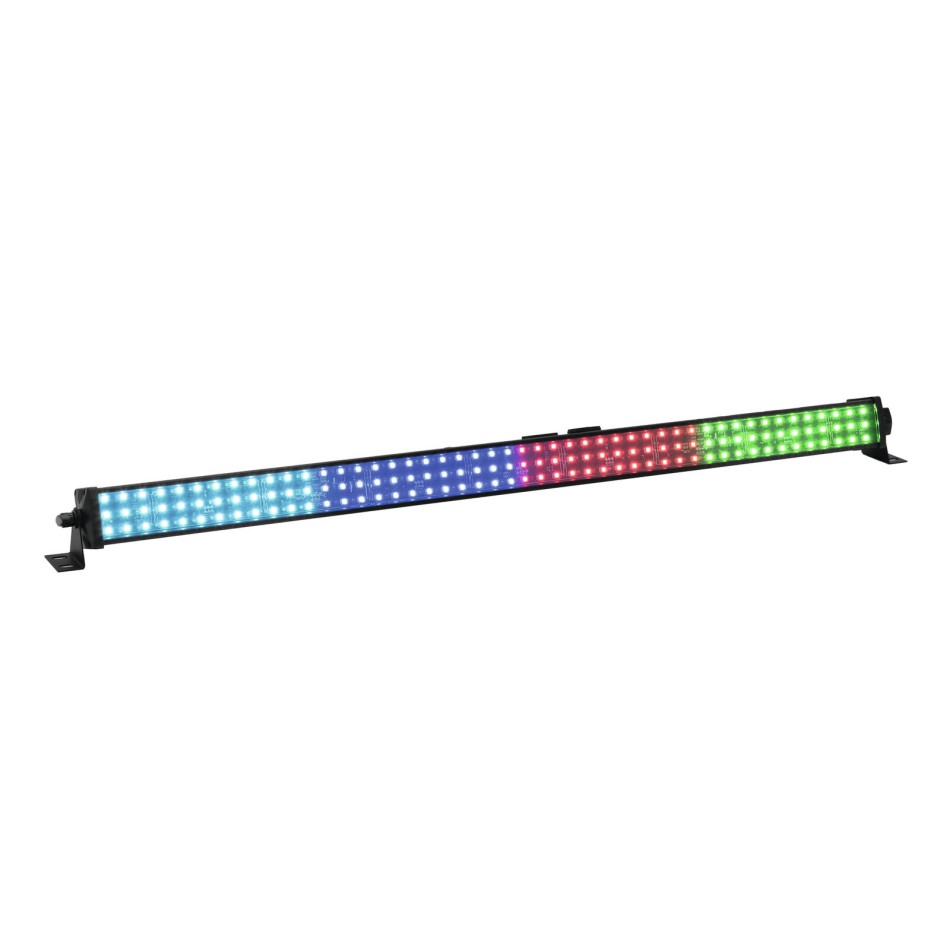

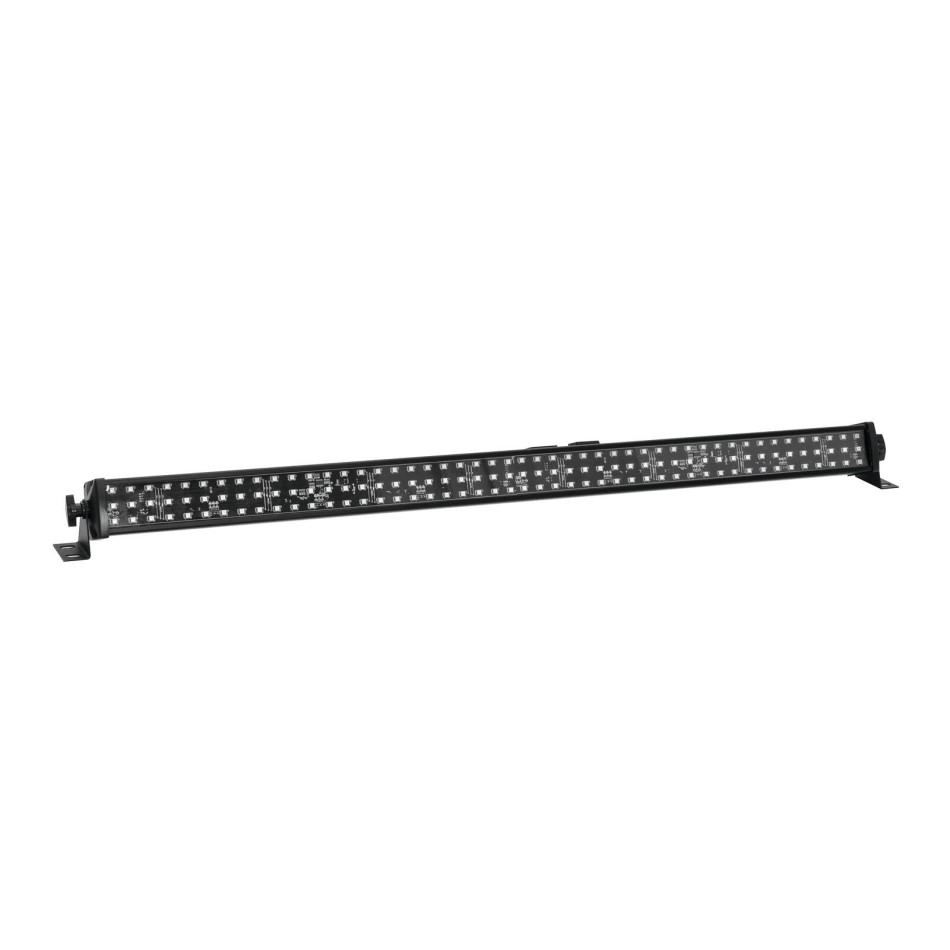

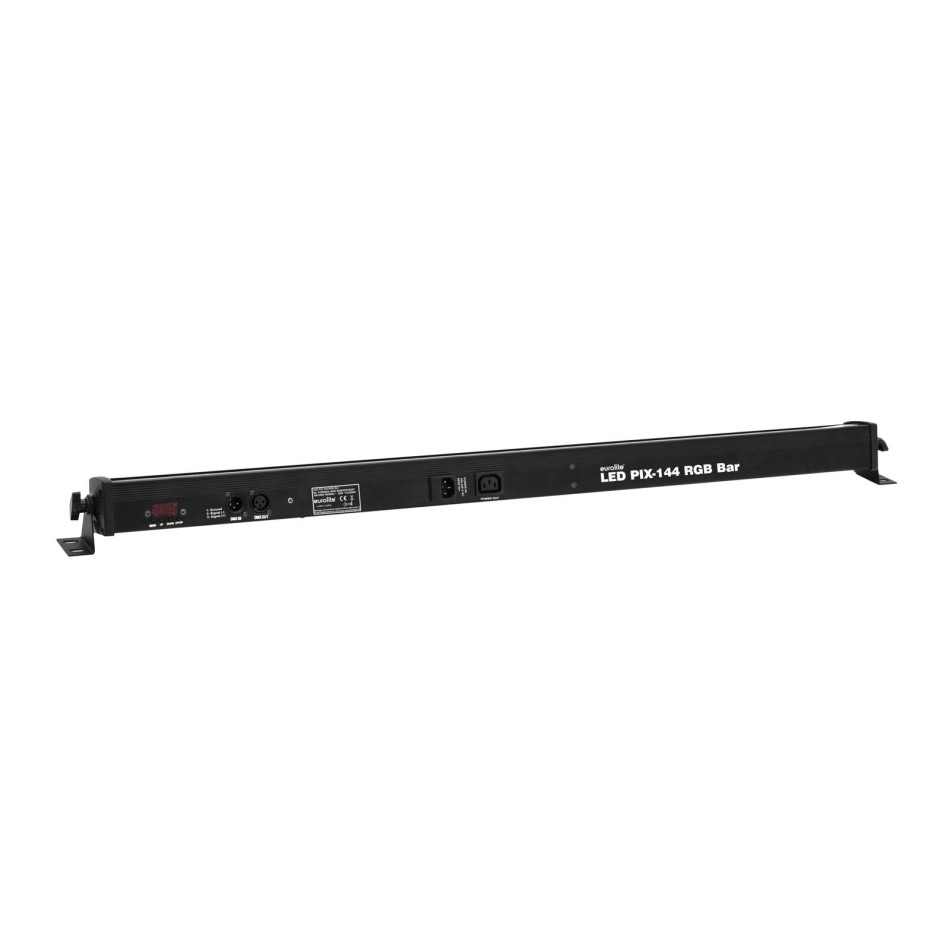

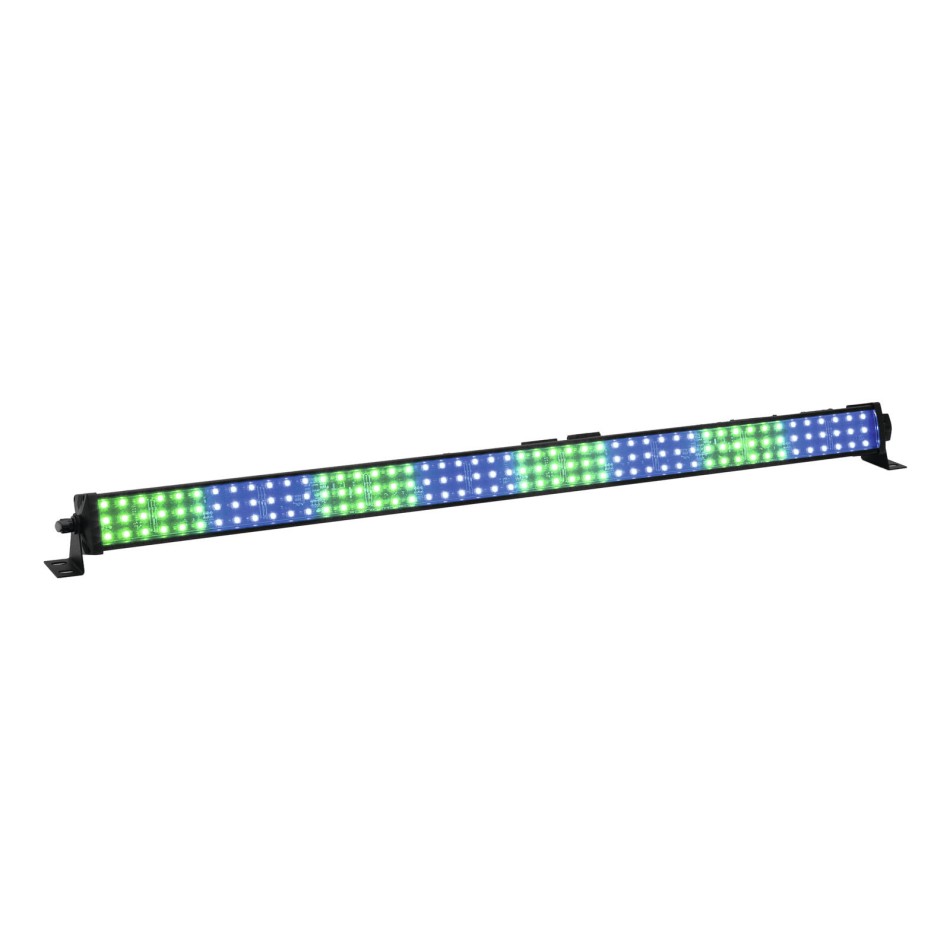

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments
- 144 LEDs SMD 5050 3in1 RGB (homogenous color mix)
8 segments controlled separately - Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- Can be operated in 3; 5; 6; 12; 24; 48 CH mode
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone
- Flicker-free
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; party room; restaurants, bars and hotels; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; wall mounting
knurled screw
- M8 thread
Scope of delivery
- 1 x light effect
- 1 x power cord
- 2 x mounting bracket
- 2 x knurled screw
- 2 x washer
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 144 x SMD 5050 3in1 RGB (homogenous color mix) |
| Flash rate: | 0.8 - 24 Hz |
| DMX channels: | 3; 5; 6; 12; 24; 48 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; sound to light via microphone |
| Fixtures available for: | Light´J; LED PC-Control 512; Light Captain; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 13300 Hz |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Length: 102 cm Depth: 6.5 cm Height: 8 cm |
| Weight: | 1.54 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø8mm; 1 x Ø8.5mm |
| Material: | Metal, 2 mm |
| Knurled screw | |
| Thread: | M8 thread x 16 mm |
| Washer | |
| Material: | Rubber |
| Dimensions: | Height: 0.3 cm Diameter: Ø 2 cm |
EUROLITE LED PIX-144 RGB Bar
- Gamintojas: EUROLITE
- Prekės kodas: 51930439
- Likutis: 5
- Pristatymas: Iki 9 - jų darbo dienų
- 108.78€
