The S200 CMY offers an extensive feature set with solid build quality at a highly attractive price. Equipped with a powerful 200 W LED and a wide zoom range from 4° to 32°, it is highly versatile and can be used as a beam, spot, or washlight.The CMY color mixing system allows for virtually unlimited color options and smooth transitions. This is complemented by a continuously variable CTO filter for adjusting the color temperature. In addition, six color filters provide further colors as well as split-color effects.Creative possibilities are enhanced by a gobo wheel with seven rotating gobos and another with nine static gobos. A rotating 8-facet prism and a frost filter complete the feature set, enabling a wide variety of dynamic lighting effects.
LED moving head hybrid with 200 W COB LED, CMY&CTO color mixing, large zoom range and extensive features
- With a beam angle of 4° - 32°
- Can be used as a beam, spot and wash
- CMY+CTO color mixing for indefinite color variations
- Color wheel with 6 dichroic filters plus open and CTO correction filter
half colors selectable - Half colors selectable
- Gobo wheel with rotating gobos, 7 gobos and open
slot-in gobo system for easy gobo replacement - Gobo wheel with static gobos, 9 gobos and open
shake effect - Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven
- 1 LED 200 W COB (chip-on-board) cold white (CW)
- Flicker-free
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Control via stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
- Application possibility: Standing; suspended
- Can be operated in 22 CH mode
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
- 1 x XLR cable
- 1 x plug (male)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 270 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 200 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven |
| Color generation: | Color wheel with 6 dichroic filters plus open and CTO correction filter Half colors selectable |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19.5mm Image diameter 10mm Slot-in gobo system for easy gobo replacement Shake effect Gobo indexable |
| DMX channels: | 22 |

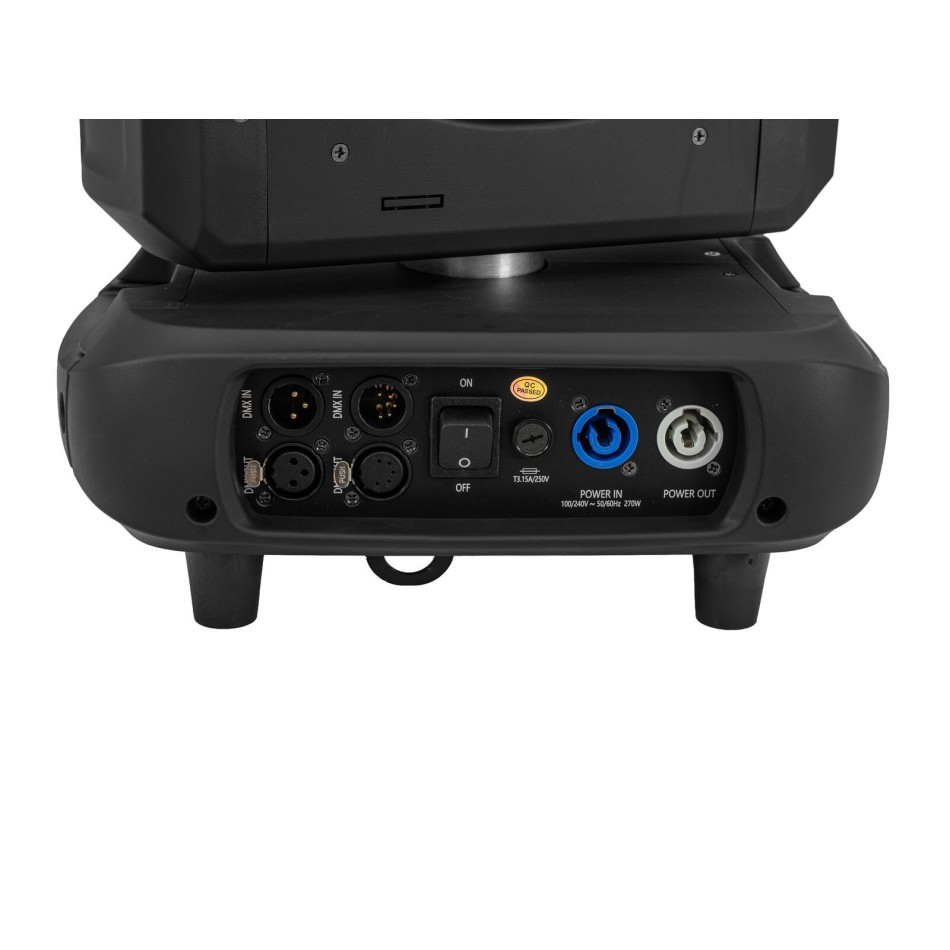

| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | 4 x temperature-controlled fan at the head 1 x temperature-controlled fan at the base |
| Control: | Stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Fixtures available for: | Light Captain; GDTF (GrandMA3) |
| Projection: | Flicker-free |
| PWM frequency: | 23000 Hz |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 4° - 32° |
| Beam angle (1/2 peak): | 4 - 32° |
| Beam angle (1/10 peak): | 4 - 32° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 98862 lx, 6m: 25686 lx Wide cold white (CW) 1m: 31366 lx, 3m: 3246 lx, 6m: 812 lx |
| Lamp life: | 20000 h |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |

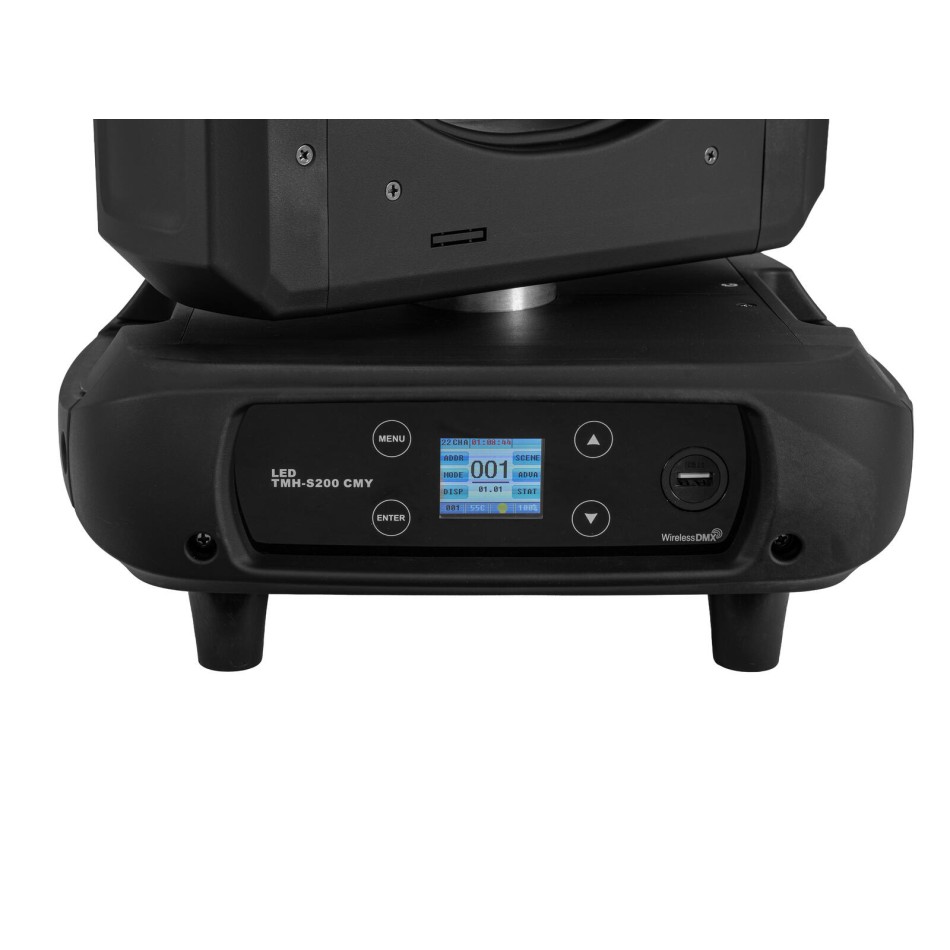

| Display type: | Multicolor LCD display |
| Control elements: | Power switch |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 2 x Ø12mm |
| Material: | Metal |
| Dimensions: | Width: 32.4 cm Depth: 25.5 cm Height: 57.0 cm |
| Weight: | 15.05 kg |
| Noise classification: | Class 2 (slight noise) depending on mode used |
EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash
- Gamintojas: EUROLITE
- Prekės kodas: 51786087
- Likutis: 5
- Pristatymas:
- 1,208.79€
