60 W beam, compact, narrow angle, beautiful RGBW colors
- Compact lightweight
- 1 LED 60 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color selection; color blend stepless; Dimmer electronic
- Beam effect; strobe effect
- Integrated show programs
- Can be operated in 14 CH mode
- The device is cooled by cooling fan
- Control via DMX; stand-alone; sound to light via microphone
- Flicker-free
- With a beam angle of 3°
- Mains input and output for power linking up to 8 units
- OSRAM bulb included
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
- 1 x XLR cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| Protection class: | Protection class I |

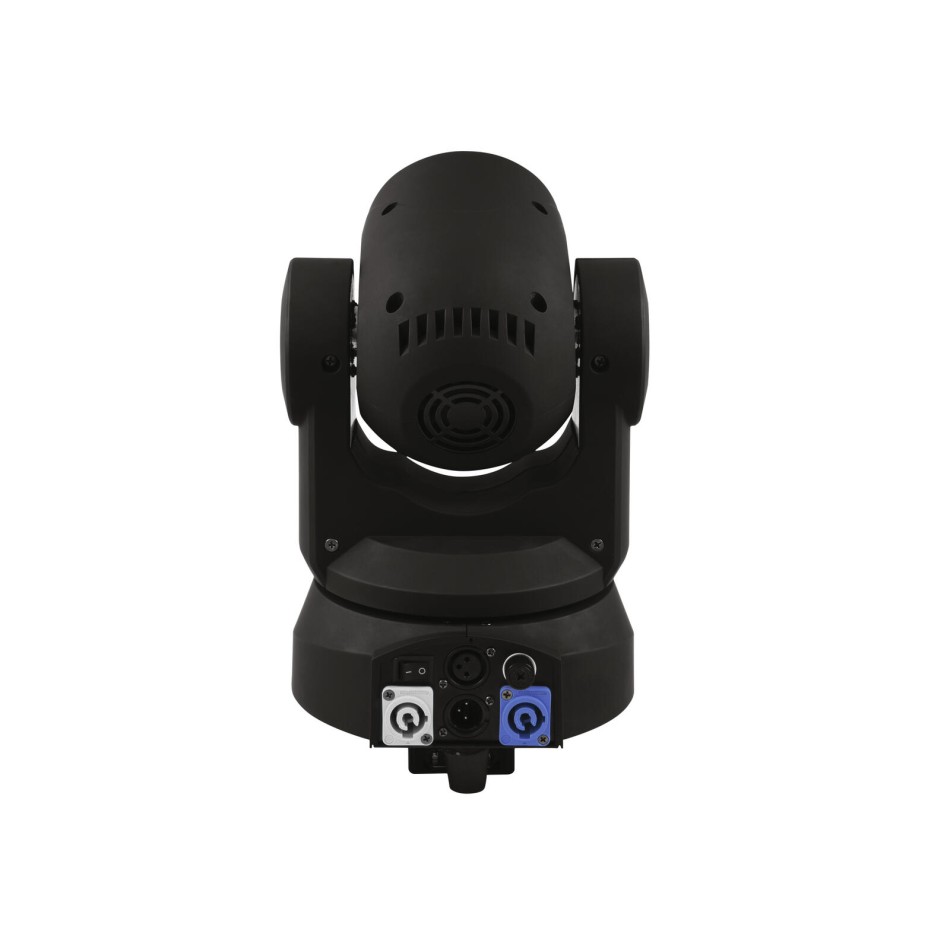

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (grey), mounting version |
| Lamp type: | LED lamp |
| LED type: | 1 x 60 W COB (chip-on-board) 4in1 RGBW (homogenous color mix) |
| Max. TILT movement: | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 0 - 10 Hz |
| DMX channels: | 14 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone |
| Fixtures available for: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in Lux (lx): | Red (R) 3m: 3251 lx, 6m: 712 lx Green (G) 3m: 4684 lx, 6m: 1125 lx Blue (B) 3m: 819 lx, 6m: 220 lx Cold white (CW) 3m: 7909 lx, 6m: 1899 lx All 3m: 15489 lx, 6m: 3655 lx |
| Housing color: | Black |
| Use of brands: | OSRAM bulb included |
| Dimensions: | Width: 20.7 cm Depth: 19.6 cm Height: 31.3 cm |
| Weight: | 4.29 kg |
| Noise classification: | Class 2 (slight noise) |

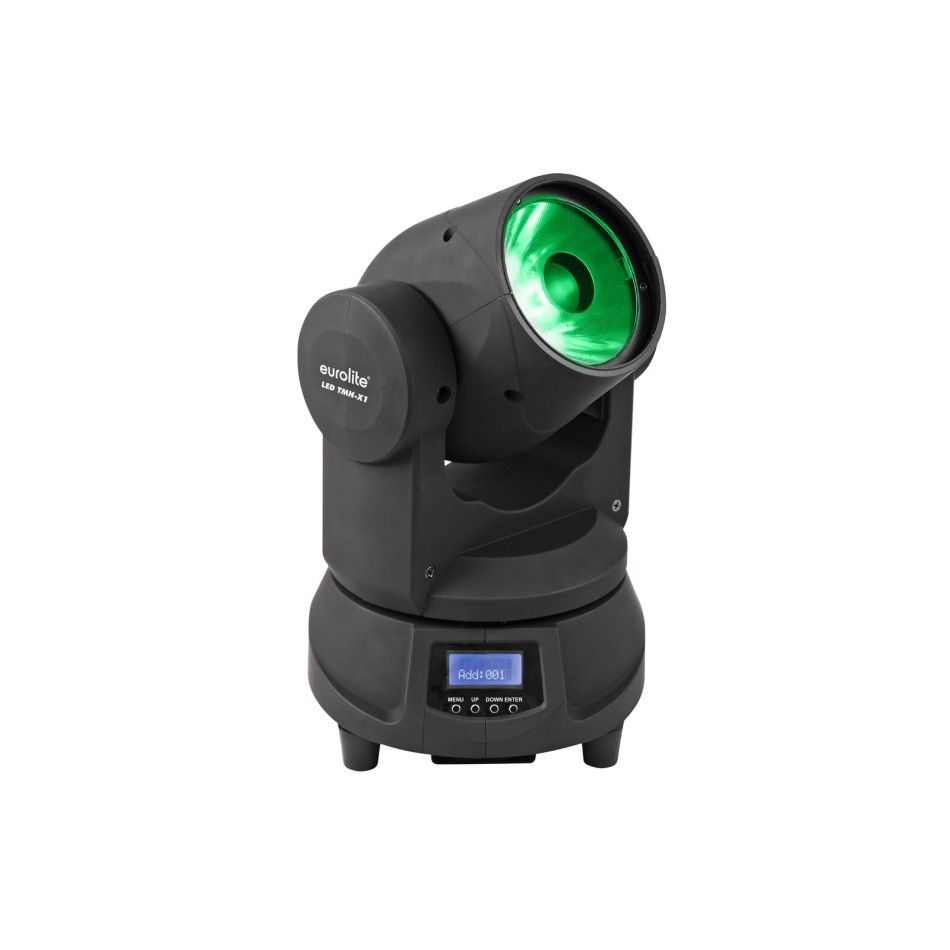

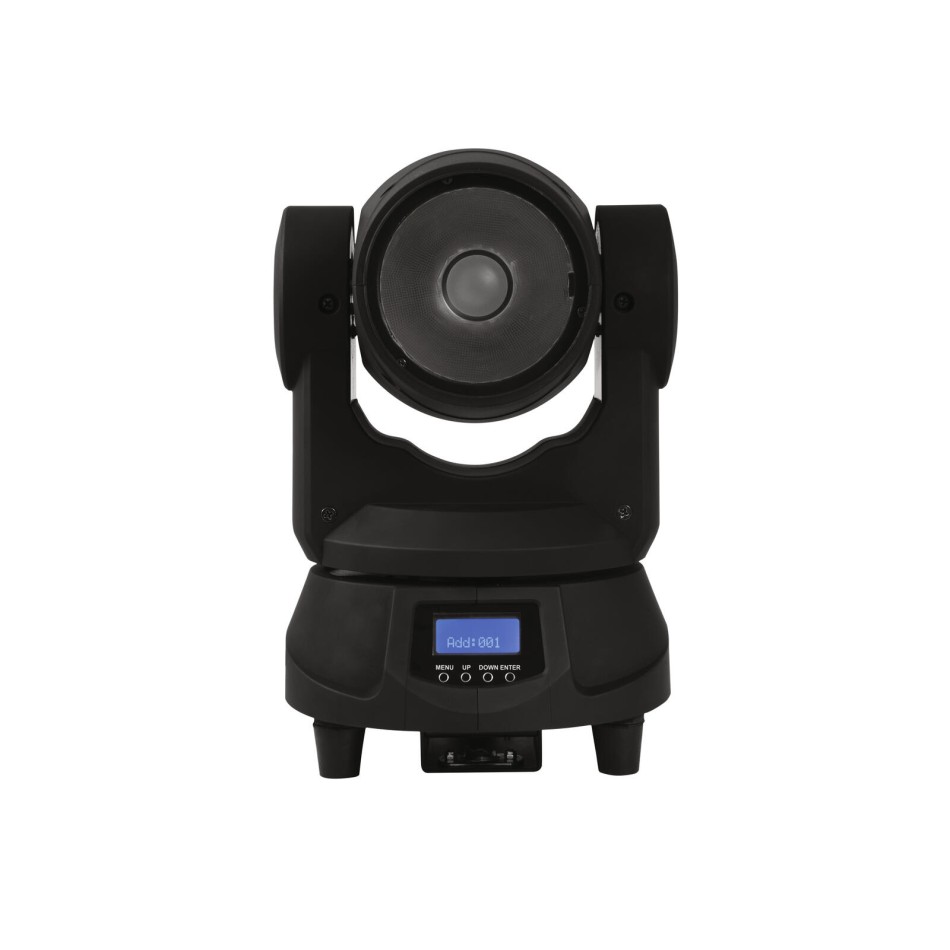

EUROLITE LED TMH-X1 Moving Head Beam
- Gamintojas: EUROLITE
- Prekės kodas: 51785988
- Pristatymas: Išparduota
- 422.29€
