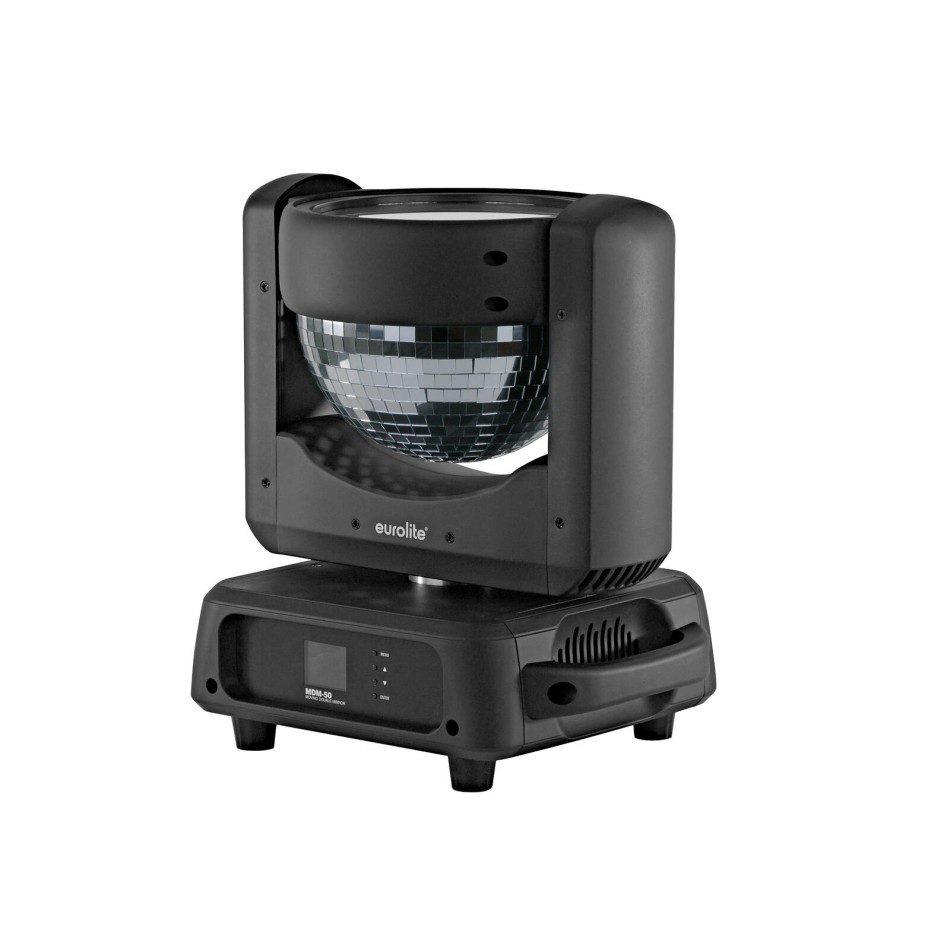

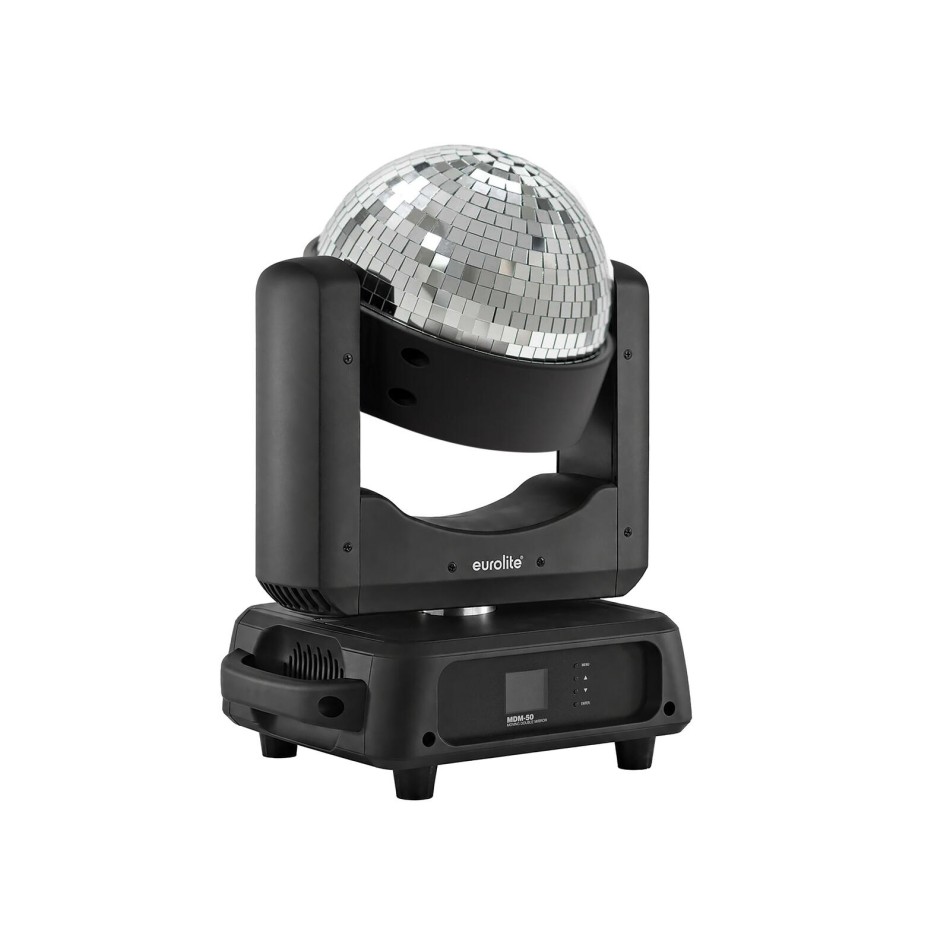

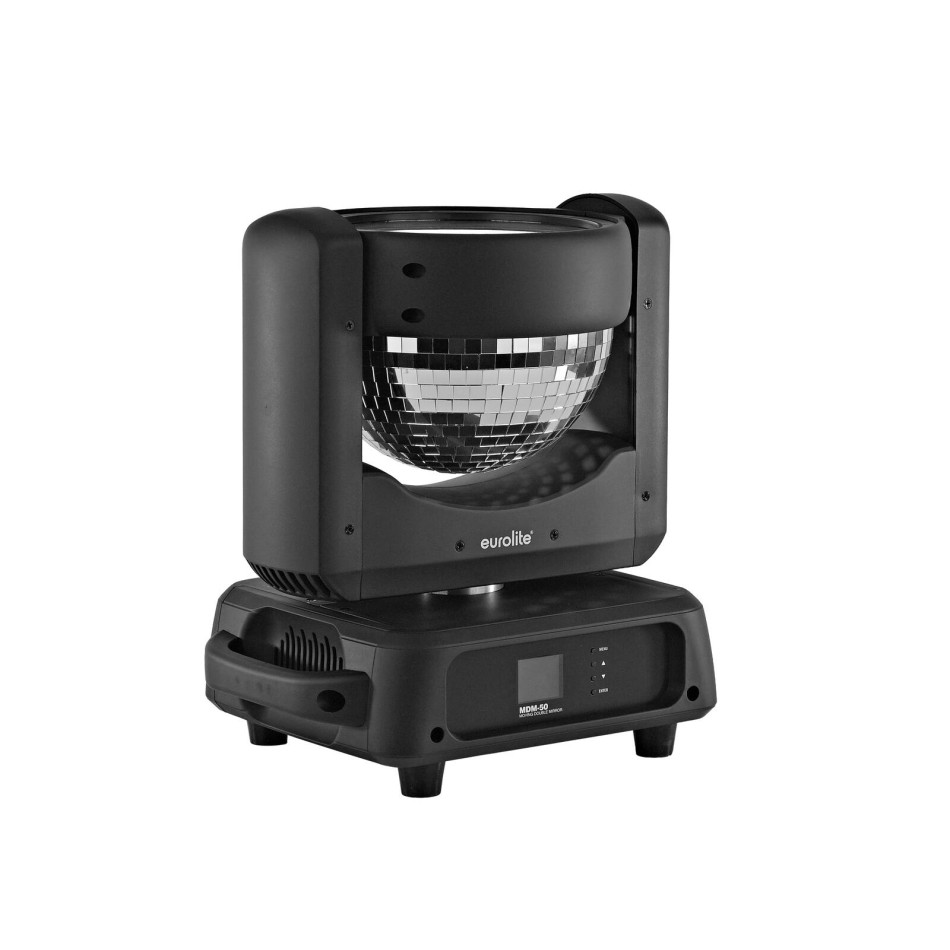

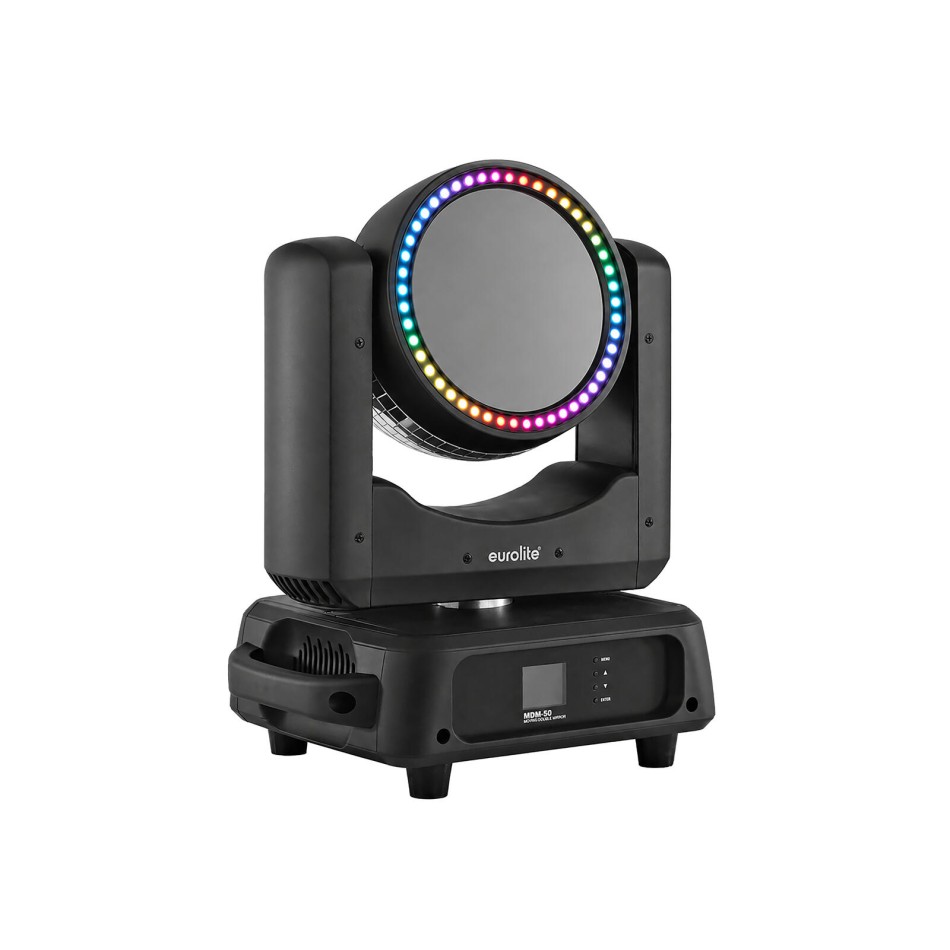

This "moving head" is the ideal partner for pinspots or beam moving heads. On one side of the head, there is a half mirror ball that can rotate endlessly, with adjustable speed and direction; essentially a classic mirror ball in a compact, moving format.On the opposite side, there is a flat mirror. This can be used to direct light further into the room, creating particularly interesting effects in combination with haze. Since the head of the MDM-50 is movable, the beam can also be controlled dynamically.The head can also rotate continuously, creating a constant transition between the flat mirror and the mirror ball. In addition, the flat side features a ring of 50 LEDs, which can be used for colored accents and chase effects.
Moving head with rotating mirror half ball, flat mirror and colored LED ring
- 50 LEDs SMD 5050 3in1 RGB (homogenous color mix)
25 segments controlled separately - Positioning within 540° PAN, 360° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Silent operation
- Flicker-free
- Control via stand-alone; sound to light via microphone; DMX; master/slave function; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Dimmer electronic; color blend stepless; color macros adjustable; Rotation direction adjustable; Rotation speed adjustable
- Can be operated in 10; 14; 16; 25; 88 CH mode
- Multi beam effect
- 4 integrated show programs
- With a beam angle of 120° ambient light
- With omega bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; advertisement/Shop window
- Application possibility: Standing; suspended
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 50 x SMD 5050 3in1 RGB (homogenous color mix) |
| Max. TILT movement: | 360° exact positioning (16 bit resolution) plus infinity auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 0.5 - 34 Hz |
| DMX channels: | 10; 14; 16; 25; 88 |

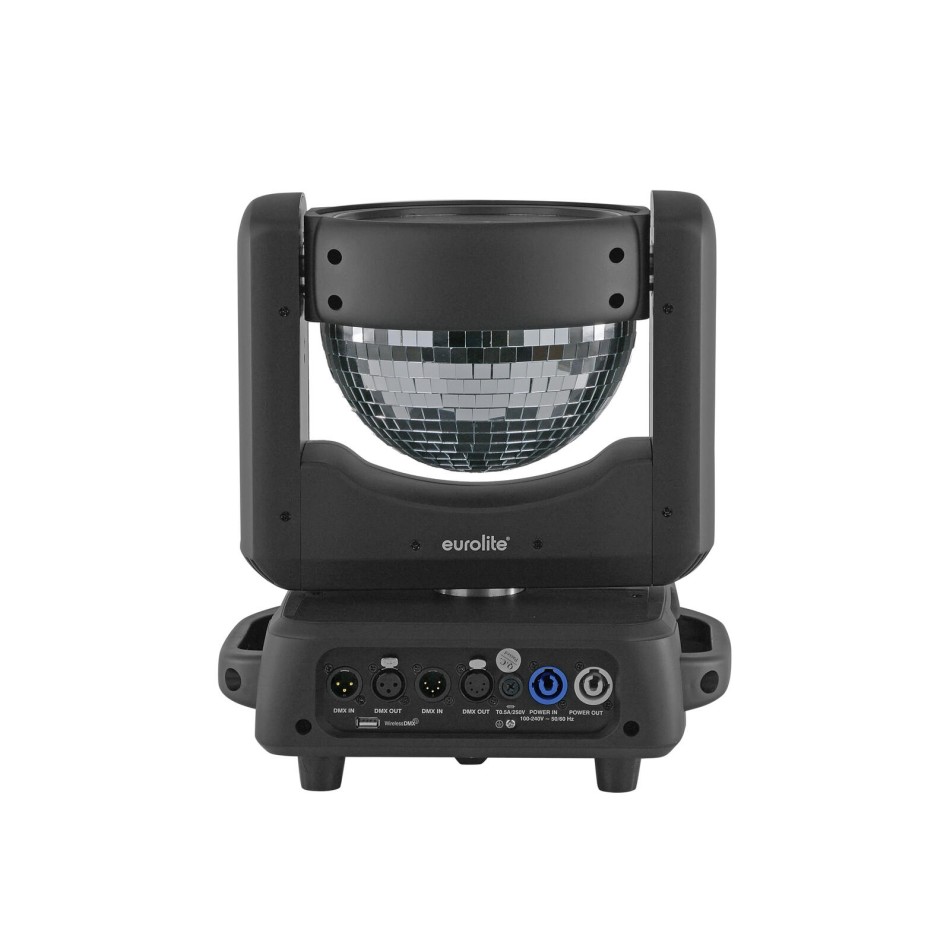

| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; DMX; master/slave function; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 4100 Hz |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 120° ambient light |
| Beam angle (1/2 peak): | Ambient light 120° |
| Beam angle (1/10 peak): | 120° |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | Multicolor LCD display |
| USB port: | Type A |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Dimensions: | Width: 32.60 cm Depth: 24.20 cm Height: 43.61 cm |
| Weight: | 8.70 kg |
| Noise classification: | Class 0 (no noise at all) |
EUROLITE MDM-50 MOVING DOUBLE MIRROR
- Gamintojas: EUROLITE
- Prekės kodas: 51918900
- Likutis: 5
- Pristatymas:
- 482.79€
