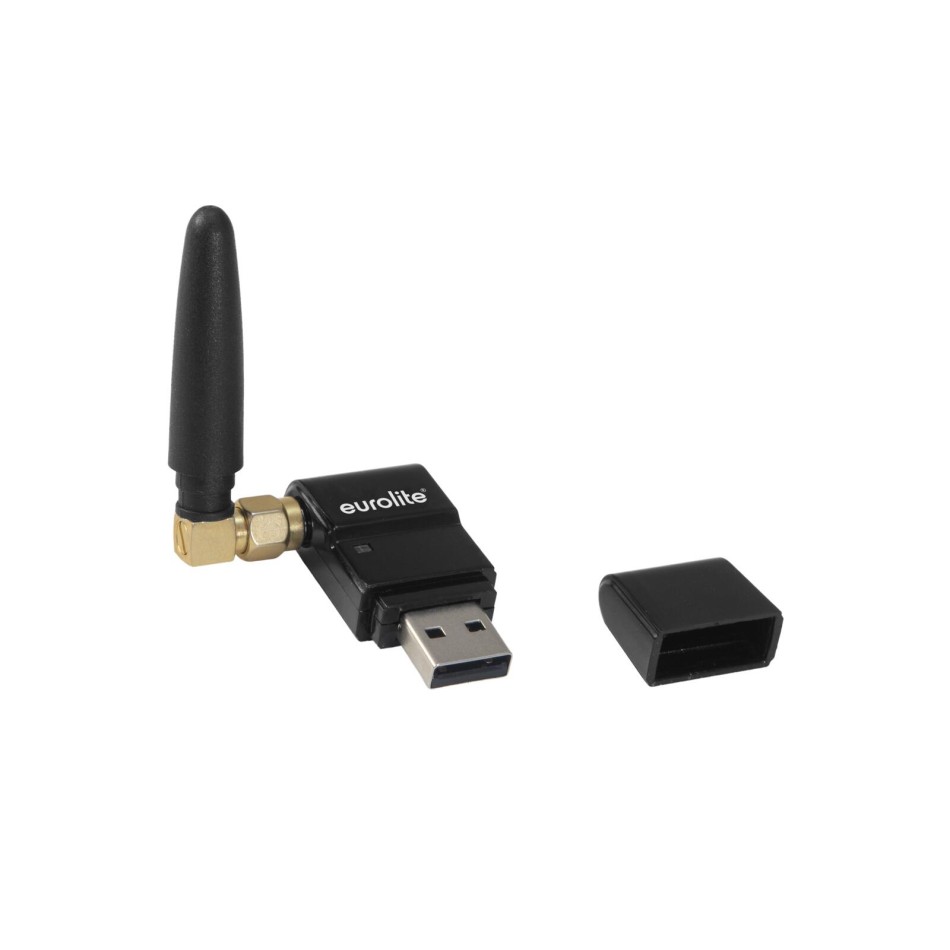

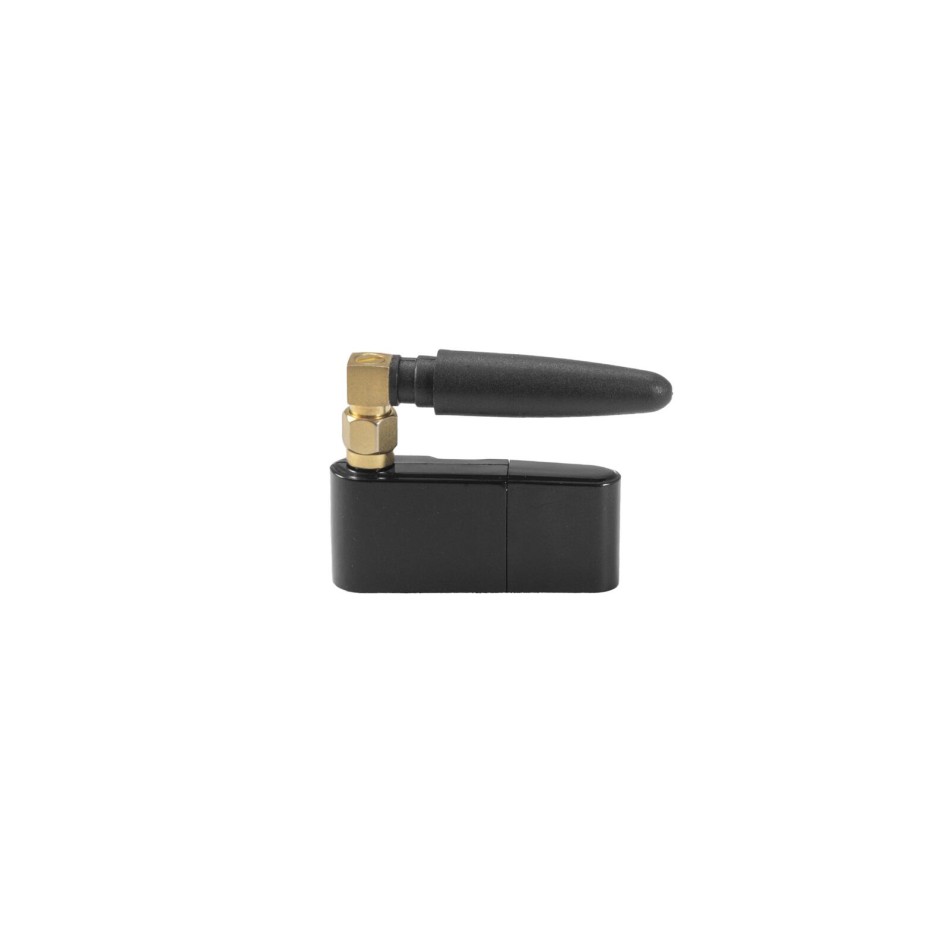

Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
- Up to 6 transmitters can be operated in parallel without interference
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x declaration of conformity
| Power supply: | 5V DC |
| Protection class: | Protection class III |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m with line-of-sight |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Housing color: | Black |
| USB port: | Type A |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 8.6 cm Depth: 4 cm Height: 1.1 cm |
| Weight: | 0.01 kg |
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
- Gamintojas: EUROLITE
- Prekės kodas: 70064704
- Likutis: 5
- Pristatymas: Iki 9 - jų darbo dienų
- 60.38€
