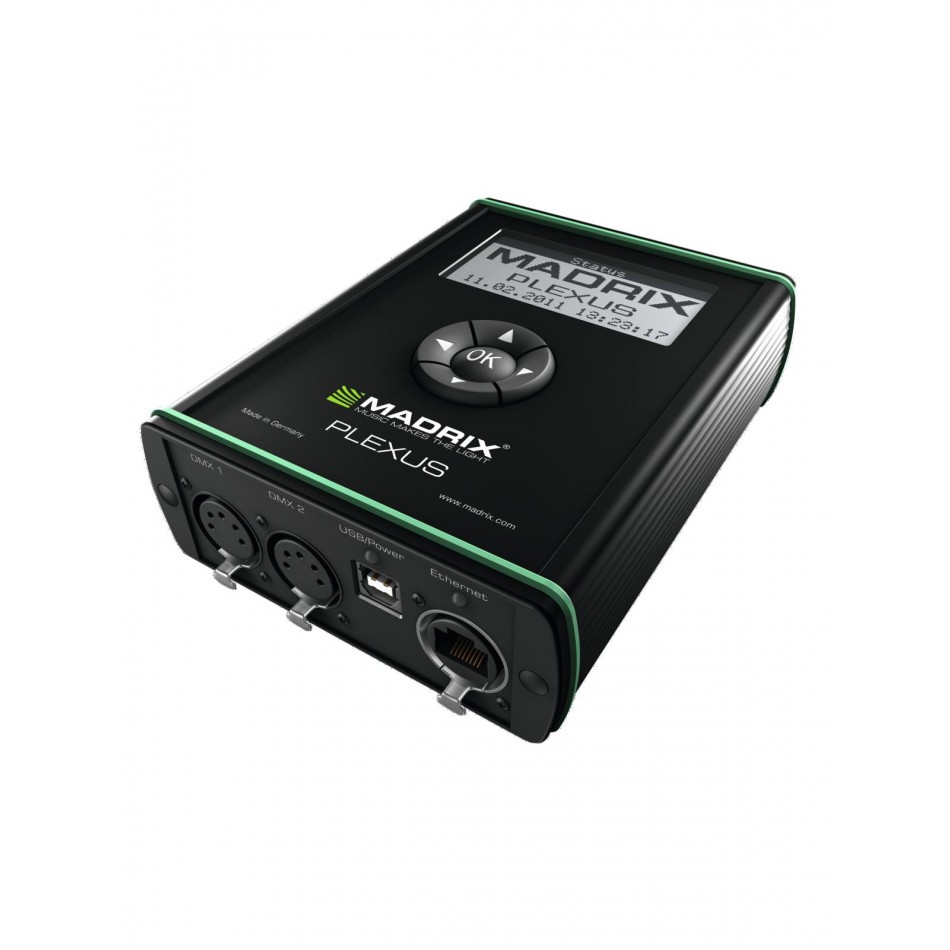

MADRIX PLEXUS with licence

• MADRIX PLEXUS is the next-generation live or stand-alone interface for LED lighting control
• Includes the MADRIX PLEXUS DMX512/Art-Net interface as well as the feature-rich MADRIX software for LED control including software license
• Can be used as live interface or for stand-alone playback of MADRIX light shows and effects from SD card
• Supports also time-controlled stand-alone shows
• Powerful LED lighting control software with endless possibilities to create visual effects and lighting scenes
• 1024 DMX channels can be controlled per device via DMX512 and/or Art-Net
• The MADRIX software license for 1024 DMX channels per device is already included and automatically activated when connected to MADRIX
• Additional Master-Slave Synchronization across all DMX universes for seamless lighting effects on the complete LED installation when using multiple devices
• Large backlit 3



  Power supply:	External
  Input:	AC 100 V - 240 V, 50/60 Hz input, DC 5.2 V and 1000 mA max. output over USB
  Power consumption:	2.5 W max. (500 mA max.)
  USB port:	USB 2.0, type B plug, Power over USB
  DMX512:	2x 512 DMX channels, input or output
  DMX512 ports:	5-pin, XLR, female, NEUTRIK
  Ethernet/Art-Net:	RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
  Extension port:	15-pin, D-Sub, US, female
  SD card slot:	SD (2 GB max.) and SDHC cards (32 GB max.) supported
  Case:	Metal enclosure, IP20
  Dimensions:	154 mm x 111 mm x 45 mm (length by width by height)
  Weight:
  Temperature range:	10 °C to 50 °C (Operating) / -10 °C to 70 °C (Storage)
  Relative humidity:	5 % to 80 %, non-condensing (Operating / Storage)
  Shipping weight:	1.02 kg
