51841309 FUTURELIGHT EYE-7 HCL Zoom LED Moving Head Wash
PRO washlight with 6in1 COB LEDs and motorized zoom
- Equipped with 7 x 17 W 6in1 LED in R/G/B/Amber/Lime/Cyan
- Variable PWM frequency (pulse-width modulation)
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- Compact housing
- Supports RDM (Remote Device Management)
- 16, 19, 20 or 33 DMX channels selectable
- 2 different LED segments, which can be controlled individually via DMX
- Exact positioning via 16 bit PAN/TILT movement resolution
- Master dimmer with 16 bit resolution
- Motorized zoom with 2 - 15? beam angle
- Color presets
- Preset color temperatures
- Built-in programs
- Stepless color mixture
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540? and 630?
- Sound-controlled via built-in microphone
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
- DMX-controlled operation or stand-alone operation with Master/Slave function
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- Power connection via Neutrik PowerCon jack and included power cable
- Feed-through output allows to power up to 8 devices
- DMX control via any standard DMX controller
- LED: 7 x high-power 17 W 6in1 HCL RGBALC (homogenous color mix)
- Control: Stand-alone; DMX; Sound to light via Microphone; RDM; Master/slave function; W-DMX by wireless solution upgradeable
- Projection: flicker-free
- Effect: Strobe effect
31005105 ROADINGER Flightcase 4x EYE-7 RGBW Zoom
PRO flightcase for 4 EYE-7 Zoom LED Washer
- Interior seperated in five compartments, four for EYE-7 (51841308) and one for accessories
- High-quality workmanship with wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded edges
- Interior upholstered with foam
- Three-leg, medium-sized steel ball corners
- 2 hinges
- 2 high-quality butterfly locks
- 4 case handles
- On wheels (4 wheels, 2 with brake)
- Transport aid: With wheels
- Made in Germany
| Weight: | 56,90 kg |
| 51841309 FUTURELIGHT EYE-7 HCL Zoom LED Moving Head Wash | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 130 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug |
| Power output: | 1 x PowerCON (gray), mounting version |
| Fuse: | 5 x 20 mm T time-lag, 3,15 A Fuse replaceable |
| LED: | 7 x high-power 17 W 6in1 HCL RGBALC (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270? Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540? Positioning switchable to 630? Auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Zoom motor-driven |
| DMX channels: | 16; 19; 20; 33 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling fan: | Yes, temperature-controlled |
| Control: | Stand-alone |
| DMX | |
| Sound to light via Microphone | |
| RDM | |
| Master/slave function | |
| W-DMX by wireless solution upgradeable | |
| Beam angle (1/2 peak): | 2 - 15? |
| Illuminance in Lux (lx): | Narrow R red 1m: 7036 lx, 3m: 1003 lx, 6m: 248 lx |
| Narrow G green 1m: 14473 lx, 3m: 2193 lx, 6m: 548 lx | |
| Narrow B blue 1m: 2461 lx, 3m: 478 lx, 6m: 122 lx | |
| Narrow A amber 1m: 27460 lx, 3m: 4256 lx, 6m: 1066 lx | |
| Narrow Lime 1m: 44659 lx, 3m: 6773 lx, 6m: 1705 lx | |
| Narrow cyan 1m: 6274 lx, 3m: 1011 lx, 6m: 251 lx | |
| Narrow all 3m: 14976 lx, 6m: 3744 lx | |
| Wide R red 1m: 787 lx, 3m: 95 lx, 6m: 25 lx | |
| Wide G green 1m: 1716 lx, 3m: 215 lx, 6m: 58 lx | |
| Wide B blue 1m: 392 lx, 3m: 51 lx, 6m: 14 lx | |
| Wide A amber 1m: 3202 lx, 3m: 388 lx, 6m: 104 lx | |
| Wide Lime 1m: 4793 lx, 3m: 594 lx, 6m: 160 lx | |
| Wide cyan 1m: 839 lx, 3m: 103 lx, 6m: 28 lx | |
| Wide all 1m: 11196 lx, 3m: 1365 lx, 6m: 362 lx | |
| Housing color: | Black |
| Width: | 24,9 cm |
| Height: | 34,7 cm |
| Depth: | 17,9 cm |
| Weight: | 7,30 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
| 31005105 ROADINGER Flightcase 4x EYE-7 RGBW Zoom | |
| Maximum load: | 100 kg |
| Color: | Dark brown laminated |
| Material: | Birch multiplex 7 mm |
| Width: | 75 cm |
| Height: | 62 cm |
| Depth: | 49,5 cm |
| Weight: | 23,70 kg |

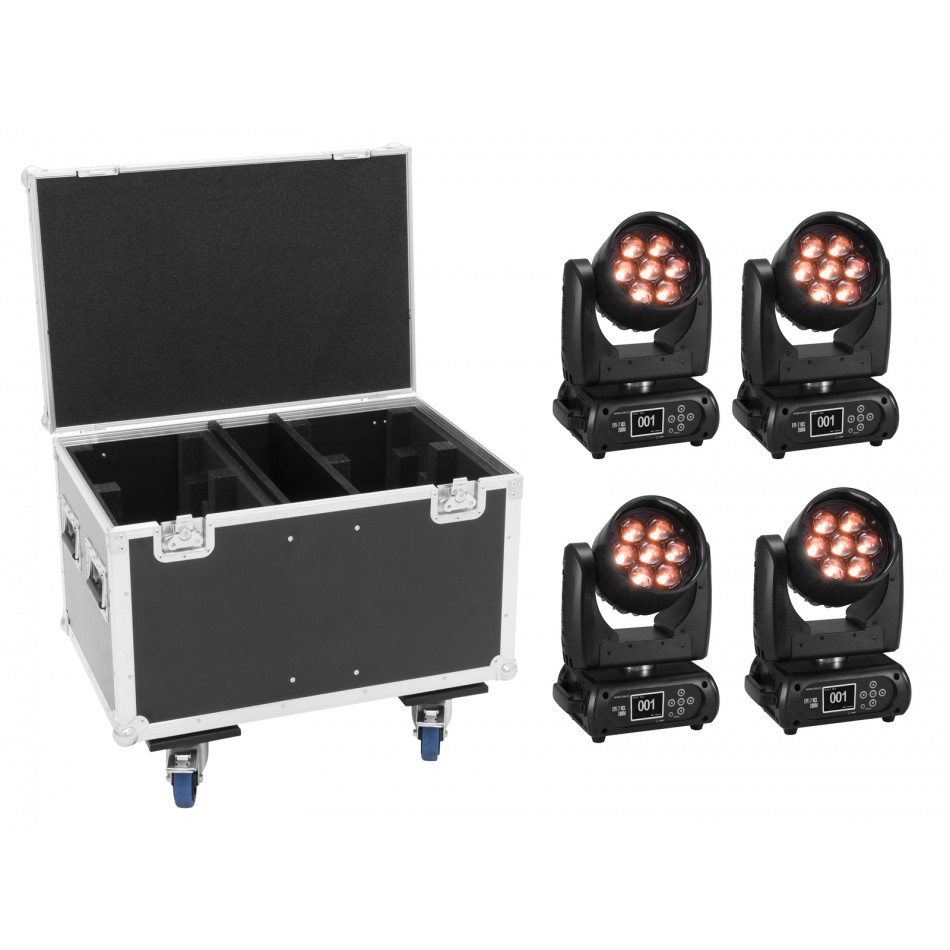

FUTURELIGHT Set 4x EYE-7 HCL Zoom + Case
- Gamintojas: FUTURELIGHT
- Prekės kodas: 20000724
- Pristatymas: Išparduota
- 4,893.90€
