PRO washlight with RGBW color mixing, zoom and Art-Net
- 7 high-power Osram Ostar 40 W RGBW LEDs (4in1)
- Variable PWM frequency (pulse-width modulation)
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- Supports RDM (Remote Device Management)
- Quick and easy control via Art-Net
- Ethernet connectors
- 19, 20, 22, 23 or 52 DMX channels selectable
- Exact positioning via 16 bit PAN/TILT movement resolution
- Master dimmer with 16 bit resolution
- Motorized zoom with 1 - 16? beam angle
- Each color of the 7 RGBW LEDs can be controlled individually
- Preset colors and color temperatures (virtual color wheel)
- Built-in programs
- Animated and static macros
- Stepless RGBW color mixture
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540? and 630?
- Sound-controlled via built-in microphone
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
- Manual, sound, DMX or Art-Netcontrolled operation
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- Neutrik powerCON terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 7 x high-power 40 W 4in1 QCL RGBW (homogenous color mix)
- Control: W-DMX by wireless solution upgradeable; RDM; DMX; ArtNet; Sound to light via Microphone; Stand-alone; Master/slave function
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 235 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Fuse: | Device fuse 5 x 20 mm T time-lag, 3,15 A Fuse replaceable |
| LED: | 7 x high-power 40 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 265? Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540? Positioning switchable to 630? Auto position correction (feedback) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 19; 20; 22; 23; 52 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| network connection: | protocol: ArtNet 3 via 2x RJ45 (F) mounting version |
| Cooling fan: | Yes |
| Control: | W-DMX by wireless solution upgradeable |
| RDM | |
| DMX | |
| ArtNet | |
| Sound to light via Microphone | |
| Stand-alone | |
| Master/slave function | |
| Beam angle (1/2 peak): | 1 - 16? |
| Beam angle (1/10 peak): | 4 - 32? |
| Illuminance in Lux (lx): | Narrow R red 1m: 11617 lx, 3m: 5390 lx, 6m: 1311 lx |
| Wide R red 1m: 2157 lx, 3m: 288 lx, 6m: 79 lx | |
| Narrow G green 1m: 30644 lx, 3m: 13327 lx, 6m: 3404 lx | |
| Wide G green 1m: 5570 lx, 3m: 740 lx, 6m: 194 lx | |
| Narrow B blue 1m: 3395 lx, 3m: 2204 lx, 6m: 671 lx | |
| Wide B blue 1m: 1233 lx, 3m: 167 lx, 6m: 41 lx | |
| Narrow CW 1m: 40020 lx, 3m: 16766 lx, 6m: 4169 lx | |
| Wide CW 1m: 6541 lx, 3m: 857 lx, 6m: 231 lx | |
| Narrow all 1m: 74589 lx, 3m: 34338 lx, 6m: 8925 lx | |
| Wide all 1m: 14124 lx, 3m: 1902 lx, 6m: 494 lx | |
| Housing color: | Black |
| Width: | 25,0 cm |
| Height: | 45,8 cm |
| Depth: | 34,3 cm |
| Weight: | 14,30 kg |

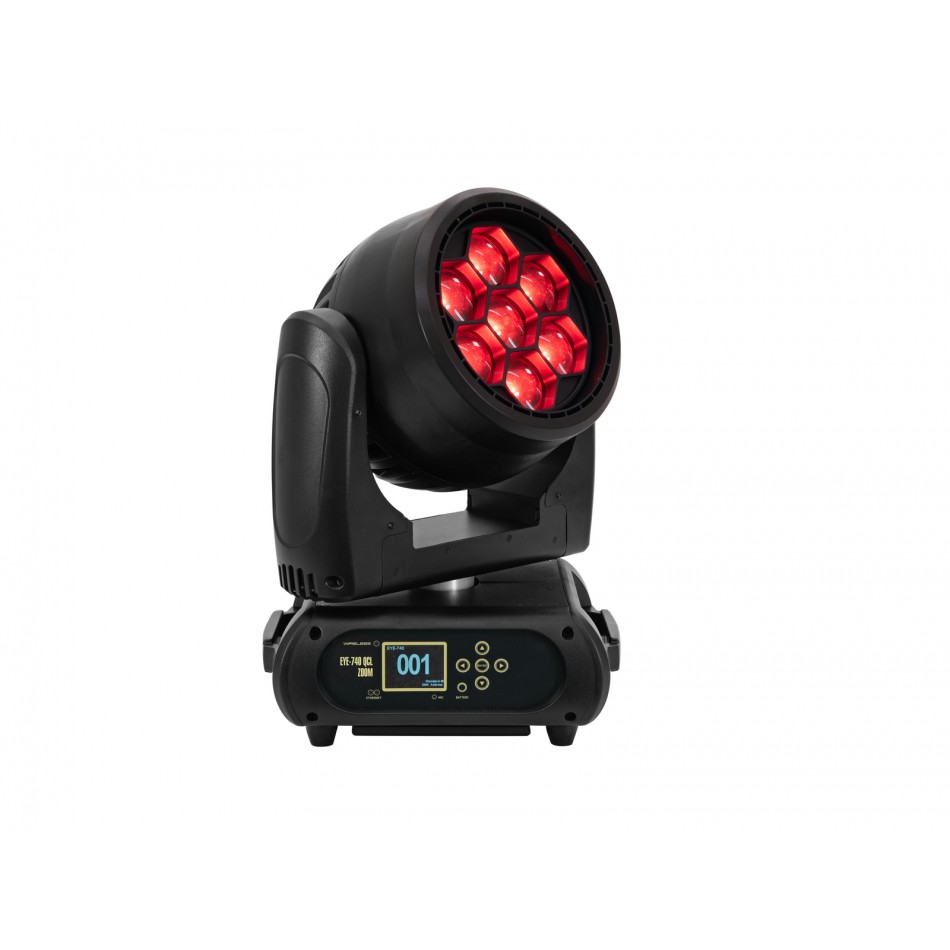

FUTURELIGHT EYE-740 QCL Zoom LED Moving-Head Wash
- Gamintojas: FUTURELIGHT
- Prekės kodas: 51841304
- Pristatymas: Išparduota
- 1,538.90€
