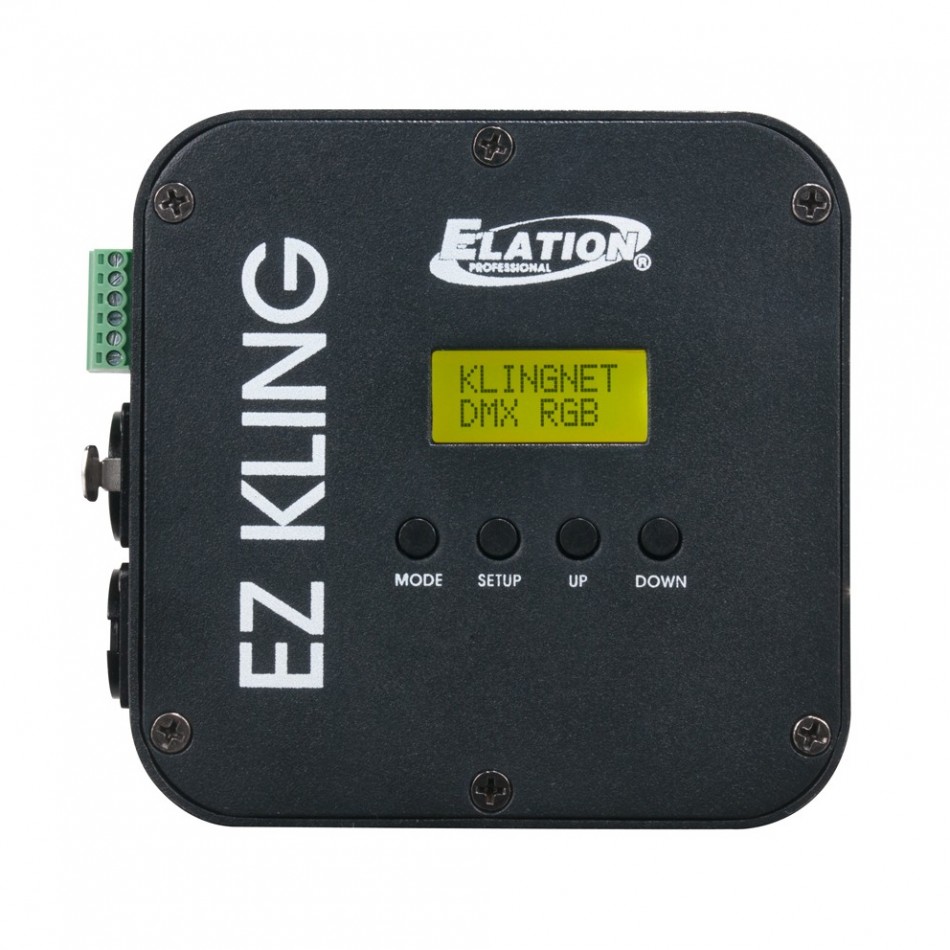

The EZ KLING™ is an RJ45 to DMX, KlingNet™, Art-Net™, and sACN interface, which allows you to pixel map KlingNet™ and DMX compatible fixtures through the KlingNet™ mapper included in Media Master Express™ (not included). Ideal for use with Flex Pixel Tape™ and LED Pixel controllable DMX fixtures. One EZ KLING™ interface will drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol or 170 DMX Pixels via Art-Net™/ DMX control. EZ Kling can also be used as a 1-port Node to convert Art-NET to DMX. Includes a magnet on the back panel for easy metal surface mounting and a mini omega bracket for clamp/truss mounting.

CONTROL / CONNECTIONS

DMX 512, KlingNet™, Art-Net 3™ Multicast and Unicast, sACN

(4) Button Control Panel and LCD Menu Display and Lockout Feature

(6) Bare Wire Terminal Block

(1) 3pin DMX Input / Output

(2) RJ45 Bilateral CAT5e Ports

(1) 5VDC Power Supply Input

SIZE / WEIGHT

Length: 5.31” (134.9mm)

Width: 4.92” (125mm)

Vertical Height: 1.61” (40.9mm)

Weight: 0.95 lbs. (0.43kg)

ELECTRICAL

5VDC

5W Max Power Consumption

INCLUDED ITEMS

5VDC Power Supply

Flex Pixel Tape Jumper First Cable

Back Panel Magnet for Easy Metal Surface Mounting

Mini Omega Bracket For Clamp/Truss Mounting
