Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)
- 2 level controls
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class AB circuitry
- (19") 48.3 cm rack installation possible 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
Scope of delivery
- 1 x amplifier
- 1 x power cord
- 1 x user manual
- 4 x foot
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 710 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 2 x 500 W RMS (4 ohms) 2 x 300 W RMS (8 ohms) 1000 W RMS bridged (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Fuse: | 5 x 20 mm, F 8 A fuse serviceable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >95 dB |
| THD: | <0.05 % at 1 kHz |
| Cooling: | 2 x temperature-controlled fan , air flow from front to rear |
| Impedance: | Input: 10 kOhm , unbal. Input: 20 kOhm , bal. |
| Housing color: | Black |
| Circuitry: | Class AB |
| Slew rate: | >20 V/µs |
| Damping factor: | >200 |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged) |
| Controls: | Softstart; DC voltage; VHF; short-circuit; limiter; overheat |
| Status LED: | Power, signal, clip, protect |

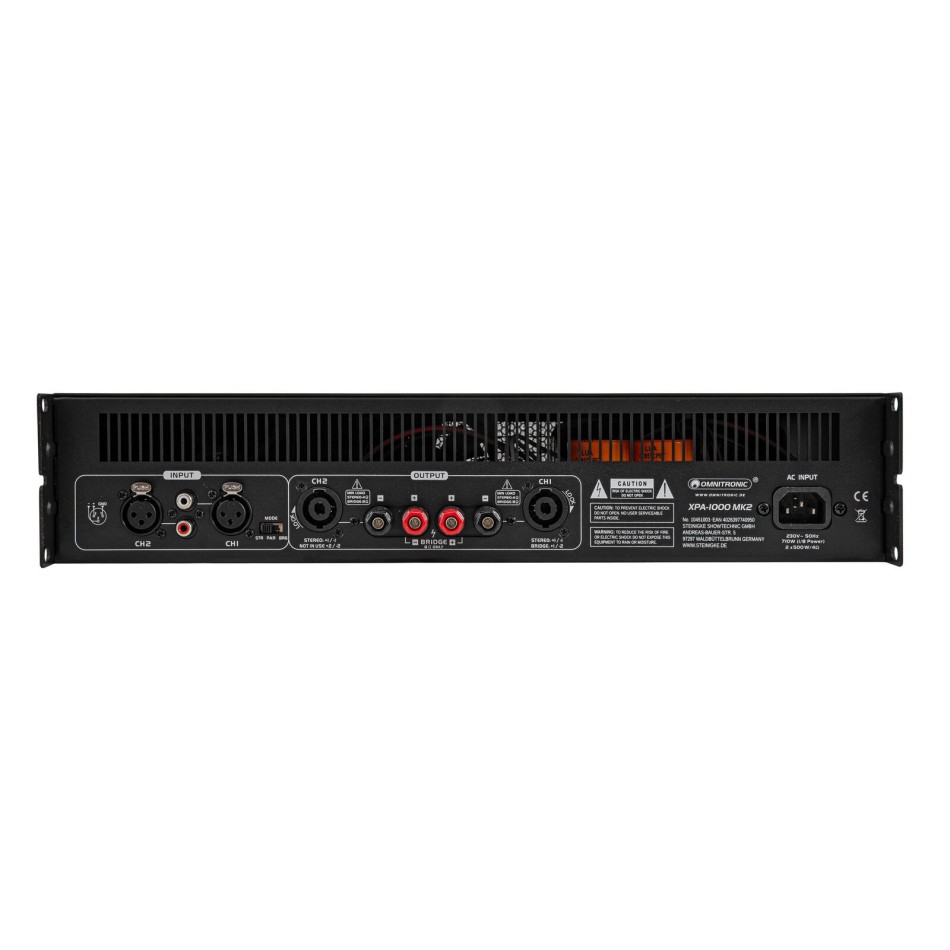

| Connections: | Input: line via 2 x 3-pin XLR (F) mounting version Input: line via stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal |
| Input sensitivity: | 1 V |
| Housing design: | (19") 48.3 cm rack installation possible 2 U |
| Mounting depth: | 33.2 cm |
| Dimensions: | Width: 48.3 cm Depth: 36.8 cm Height: 8.8 cm |
| Weight: | 10.40 kg |
OMNITRONIC XPA-1000 MK2 Amplifier
- Gamintojas: OMNITRONIC
- Prekės kodas: 10451003
- Likutis: 5
- Pristatymas: Iki 9 - jų darbo dienų
- 301.29€
