Antenna distributor
- Active antenna distributor for operating up to four UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors AD-500 can be connected among each other for use of 16 microphones in total
- Directional antennas made of durable glass/copper with 1.5 cm thread (5/8") for stands
- Low-voltage outputs for supplying four UHF receivers, incl. matching connection cables
- Use in the entire UHF frequency range (600 - 900 MHz)
- All antenna connections via BNC jacks
- Rack installation with 1 unit
- Rugged steel housing
- Incl. padded transport case, with aluminum profile frames
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| Frequency range: | 600-900 MHz |
| Impedance: | 50 ohms |
| Antenna connectors: | 2 x BNC |
| Receiver outputs: | 8 x BNC |
| Low-voltage outputs: | 4 x 12 V DC |
| Dimensions distributor: | 482 x 210 x 44 mm |
| Rack installation with 1 U | |
| Weight: | 2 kg |
| Dimensions antennas: | 315 x 336 mm |
| Weight: | 275 g |
| Shipping weight: | 5.80 kg |

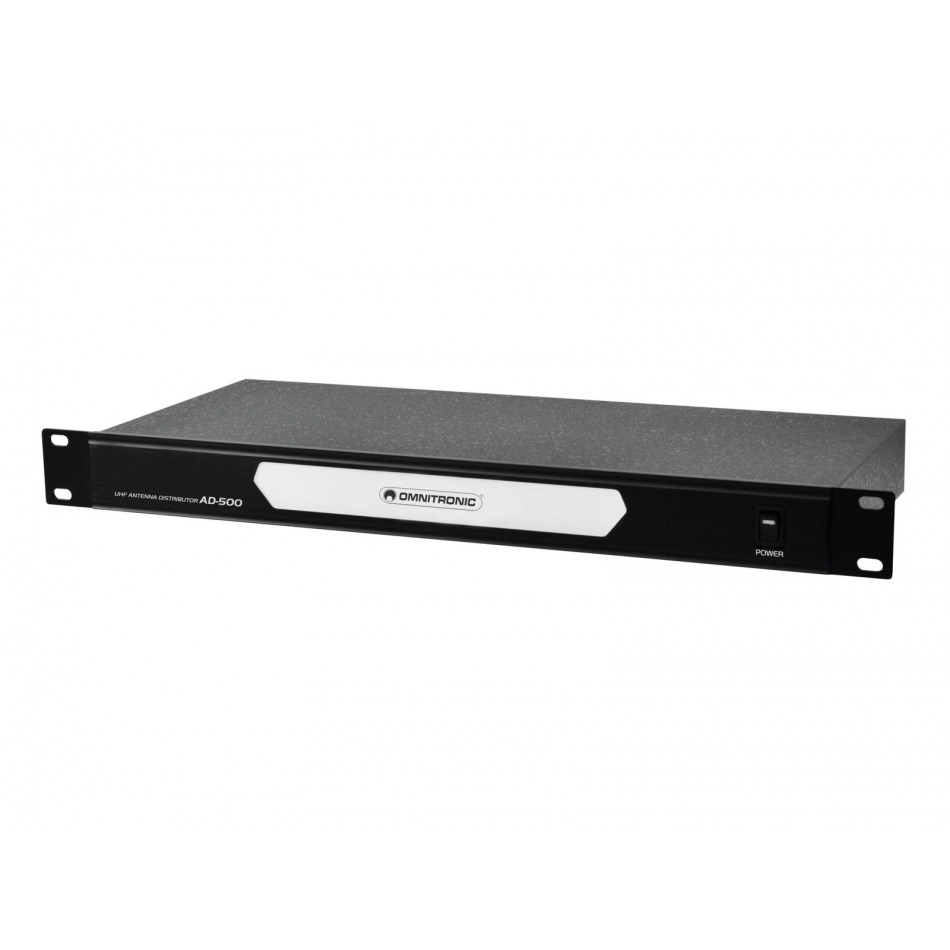

OMNITRONIC AD-500 Antenna distributor set
- Gamintojas: OMNITRONIC
- Prekės kodas: 13063032
- Pristatymas: Išparduota
- 715.04€
