2-channel/24 bit stereo mixer with two USB interfaces
- Digital mixing of audio files from PC and Mac via two USB ports and digital S/PDIF input and output
- Full duplex USB ports: simultaneous recording and playback possible
- 2 input channels with matrix input assignment and crossfader for mixing to 1 stereo output
- Inputs: 2 x line/phono (RCA, switchable), 2 x USB (high-speed 2.0), 1 x digital S/PDIF (RCA)
- Each channel with 2-way tone control (highs and lows), 5-digit LED level meter and level control
- Separate microphone input (6.3 mm jack) on the front panel with level control
- Separate headphones output (6.3 mm jack) on the front panel with level and cue/mix control
- Replaceable crossfader with VCA technology
- Master level control; stereo master out (RCA/XLR, bal.)
- Operation via supplied power unit
- Rack installation, 1 U
| Power supply: | 230 V AC, 50 Hz ~, |
| via supplied power unit | |
| Power consumption: | 5 W |
| Inputs: | |
| MIC: | 6.3 mm jack |
| Impedance: | 600 ohms |
| Gain: | -60 dB (unbal.), -66 dB (bal.); ±2 dB |
| LINE CH A, CH B: | |
| Impedance: | 20 kohms |
| Gain: | +20 dB, ±1 dB |
| PHONO: | stereo RCA |
| Impedance: | 47 kohms |
| Gain: | -55 dB, ±1 dB |
| S/PDIF: | RCA |
| USB: | type 2.0 |
| Outputs: | |
| MASTER: | stereo RCA, stereo XLR (3-pin) |
| Impedance: | 600 ohms |
| Gain: | +20 dB |
| Max. output level: | +24 dBu |
| Headphones: | 6.3 mm stereo jack |
| S/PDIF: | RCA |
| Tone control: | |
| 2 x High: | -12 dB to +12 dB/ 1 kHz, ±1 dB |
| 2 x Low: | -12 dB to +12 dB/ 1 kHz, ±1 dB |
| S/N ratio: | <-65 dB |
| Frequency range: | 20-25000 Hz, ±0.5 dB |
| Distortion: | 0.05% (line/phono) |
| Crosstalk: | <-70 dB (line), <-50 dB (phono)/ 1 kHz |
| Dimensions (WxHxD): | 483 x 200 x 46 mm (19", 1 U) |
| Weight: | 2.5 kg |
| Shipping weight: | 2.75 kg |

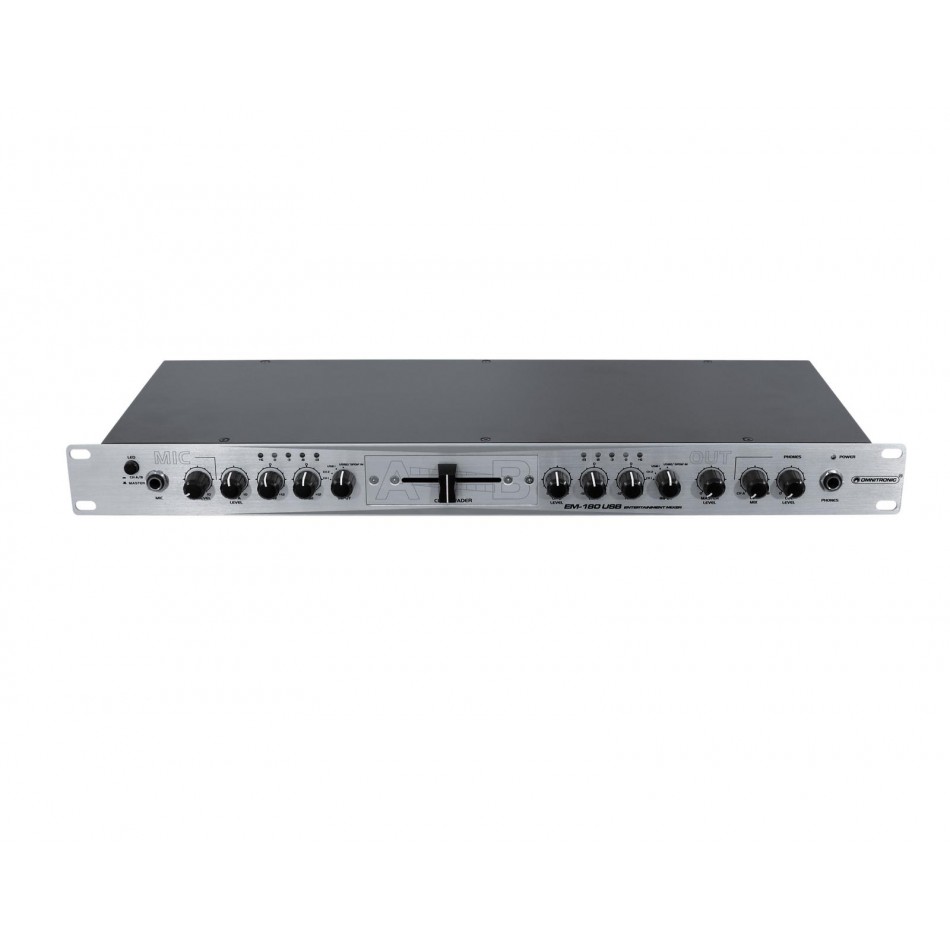

OMNITRONIC EM-180 USB Entertainment mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10007071
- Pristatymas: Išparduota
- 239.35€
