OMNITRONIC Entertainment Mixer Series
The modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.
The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.
The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.
The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.
The modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.
The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.
The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.
The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.
Multifunctional 5+2-channel mixer with 3 zones, Black
- 3 zones with routing facility of all input channels as desired
- 5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders
- 2 microphone channels with level control, LED level meter, 3-way equalizer and talkover button
- Talkover level and response time adjustable
- Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
- Color illuminated rotary controls and rubber buttons
- Zone outputs with level control, 3-way equalizer and 10-digit stereo LED level meter
- 2 record outputs (independent of the master channels) with routing facility of all zone outputs as desired
- Inputs: 8 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
- Outputs: 3 x master (optionally 3-pin XLR or stereo RCA) and 2 x record (stereo RCA)
- Operation via supplied power unit
- Rack installation, 2 U
- Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke)
| Power supply: | 230 V AC, 50 Hz, |
| via supplied power unit | |
| Power consumption: | 35 W |
| Inputs: | |
| Microphone 1.2: | combined XLR/6.3 mm jack (1/4") (bal.) |
| Minimum input voltage: | 1 mV RMS |
| Line 1-8, Aux 1.2: | stereo RCA |
| Minimum input voltage: | 150 mV RMS |
| Phono 1.2: | stereo RCA |
| Minimum input voltage: | 3 mV RMS |
| Outputs: | |
| Master 1-3: | stereo RCA, stereo XLR |
| Output voltage: | 0.75 V/1.5 V RMS (switchable) |
| Record: | stereo RCA |
| Output voltage: | 0.75 V RMS |
| Headphones output: | 6.3 mm stereo jack (min. 8 ohms) |
| Tone control (microphone 1.2; zone 1-3): | |
| 5 x High: | -12 dB to +12 dB/ 10 kHz |
| 5 x Mid: | -12 dB to +12 dB/ 1 kHz |
| 5 x Low: | -12 dB to +12 dB/ 100 Hz |
| Talkover attenuation: | variable |
| S/N ratio: | |
| Frequency range: | 20-20000 Hz |
| Distortion: | 0.03 % |
| Dimensions (WxHxD): | 483 x 117 x 90 mm (19", 2 U) |
| Weight: | 4 kg |
| Length: | 48.3 cm |
| Height: | 9 cm |
| Width: | 11.7 cm |

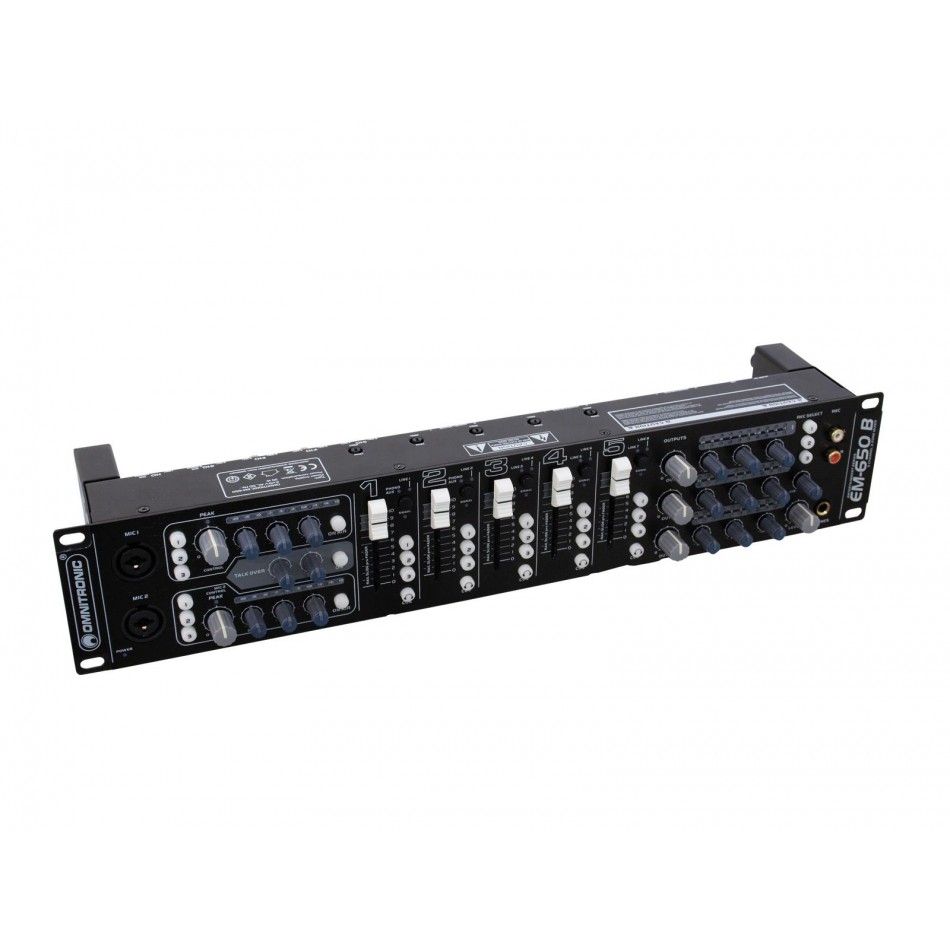

OMNITRONIC EM-650B Entertainment Mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10007111
- Pristatymas: Išparduota
- 540.42€
