Universal powered stage mixer with DSP effects unit
- Low-noise 8-channel mic/line mixer and amplifier with 2 x 350 W/4 ohms output power
- Integrated DSP effect unit with LED display 256 effects
- 8 mono input channels (XLR and 6.3 mm jack) with gain control, 3-band EQ, pan and effect control
- Insert or direct out (6.3 mm jack) per channel
- Aux send per channel for controlling external effectors
- Adjustable aux return input (6.3 mm jack)
- 2 adjustable CD inputs (stereo RCA) with crossfader
- Tape output (stereo RCA)
- +48V phantom power, can be switched centrally
- 2 x 7-band graphic equalizer for fine-tuned sound
- Precise 10-fold stereo LED meter
- 2 Speaker outputs
| Power supply: | 115/230 V AC, 50/60 Hz ~ |
| Power consumption: | 1200 W |
| Inputs: | |
| 8 mono | XLR or balanced 6.3 mm jacks |
| 8 inserts | balanced 6.3 mm jacks |
| 1 aux return | balanced 6.3 mm jacks |
| 2 CD | RCA |
| Outputs: | |
| 2 master | Speaker sockets |
| 1 aux send | balanced 6.3 mm jacks |
| 8 insert | balanced 6.3 mm jacks |
| 1 Tape | RCA |
| Frequency range: | |
| Microphone: | 10 Hz - 60 kHz, ±3 dB |
| Mono: | 10 Hz - 60 kHz, ±3 dB |
| Stereo: | 10 Hz - 55 kHz, ±3 dB |
| Distortion: | 0.01 % |
| S/N-ratio: | 112 dB |
| Tone control/channel: | |
| Treble: | ±15 dB at 12 kHz |
| Middle: | ±15 dB at 2.5 kHz |
| Bass: | ±15 dB at 80 Hz |
| Power output sine: | |
| Stereo 4 ohms: | 2 x 350 W |
| Dimensions (WxDxH): | 540 x 330 x 320 mm |
| Weight: | 13.5 kg |
| Shipping weight: | 17.25 kg |

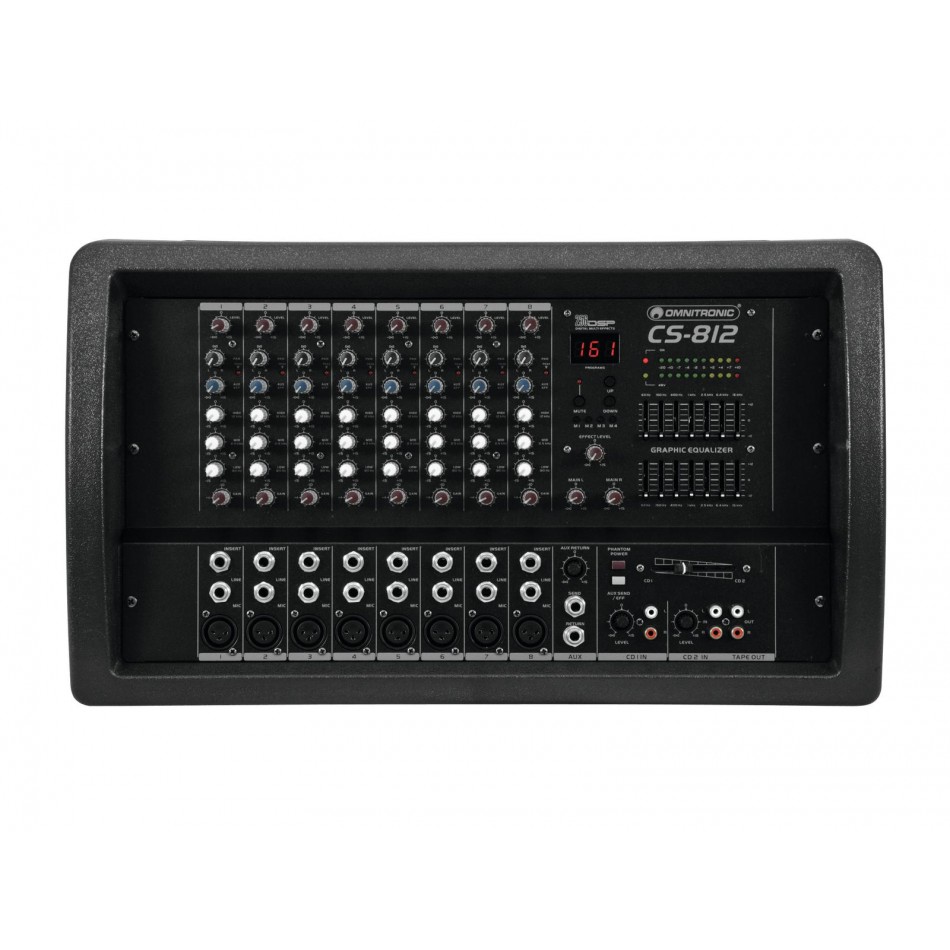

OMNITRONIC CS-812 Powered mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10050150
- Pristatymas: Išparduota
- 600.63€
