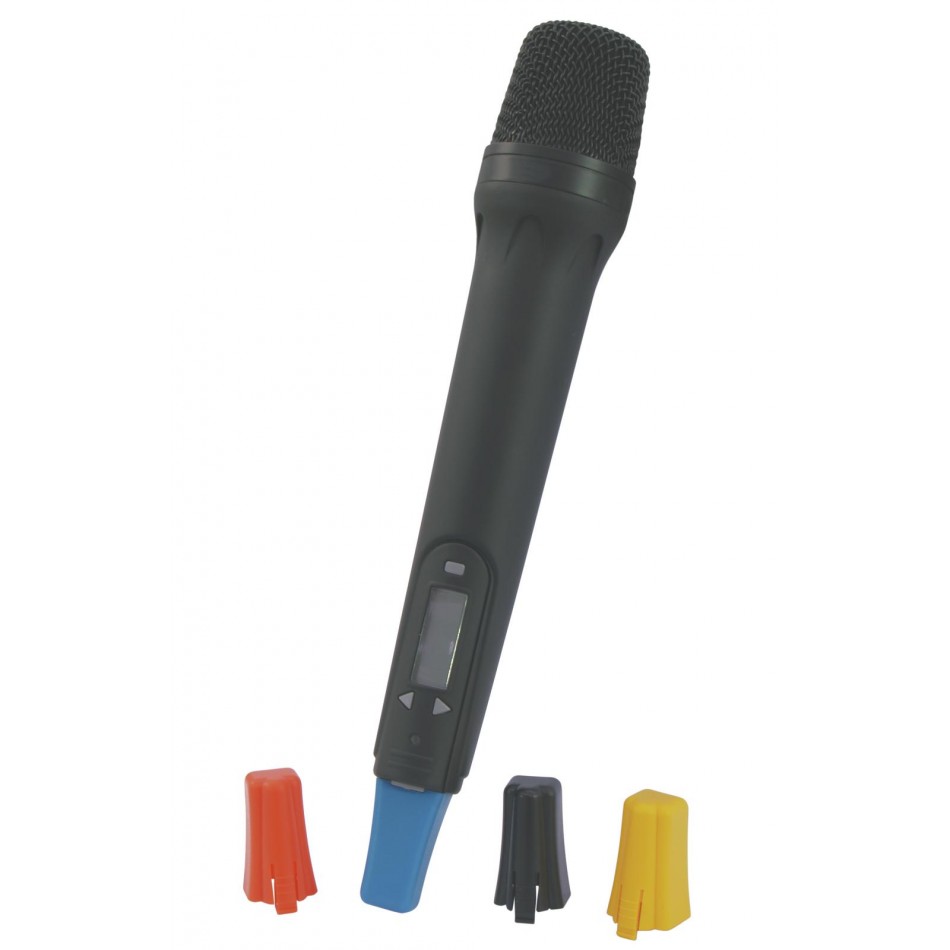

The HM-105 is a dynamic hand-held microphone with PLL multifrequency transmitter which serves for wireless transmission of speech and vocals to the receiving unit RM-105 of the PA system W.A.M.S.-05. The microphone operates in the range of 863.100 - 864.900 MHz. The frequency range is divided into 16 channels, which can be selected as desired. The unit is tuned to the frequencies of the receiver module.
High-quality hand-held microphone for the W.A.M.S.-05
- Integrated multifrequency transmitter with UHF PLL technology, suitable for W.A.M.S.-05 system
- Dynamic microphone capsule
- Cardiodid characteristic
- Operation in the low-interference UHF-band (863.1-864.9 MHz) with 16 frequencies selectable
- LCD for channel, frequency and battery capacity
- Transmitting power 10 mW
- Sensitivity adjustable in 2 steps
- Mute function
- For 2 x 1.5 V mignon batteries or 2 x 1.2 V rechargeable batteries (type AA) (not included)
- With charging port, suitable for optional charger HM-105
- Delivery incl. 4 color caps
- License-free and approved in the EU
| Carrier frequency: | UHF 863.100-864.900 MHz |
| Frequency stability: | ±0.005 % |
| RF power output: | 10 mW |
| Polar pattern: | Omnidirectional |
| Frequency range: | 70-16000 Hz |
| Range: | approx. 30 m |
| Power supply: | 2 x 1.5 V mignon batteries (type AA)/ |
| 2 x 1.2 V rechargeable batteries (type AA) | |
| Battery life: | 13 hours (1.5 V mignon) |
| Rechargeable battery life: | 8 hours (1300 mA) |
| Charging time: | approx. 4 hours (1300 mA) |
| Dimensions (D x L): | 40 x 260 mm |
| Weight: | 250 g |
| Length: | 26 cm |
| Width: | 4 cm |
OMNITRONIC HM-105 Wireless Microphone WAMS-05
- Gamintojas: OMNITRONIC
- Prekės kodas: 13055098
- Pristatymas: Išparduota
- 203.22€
