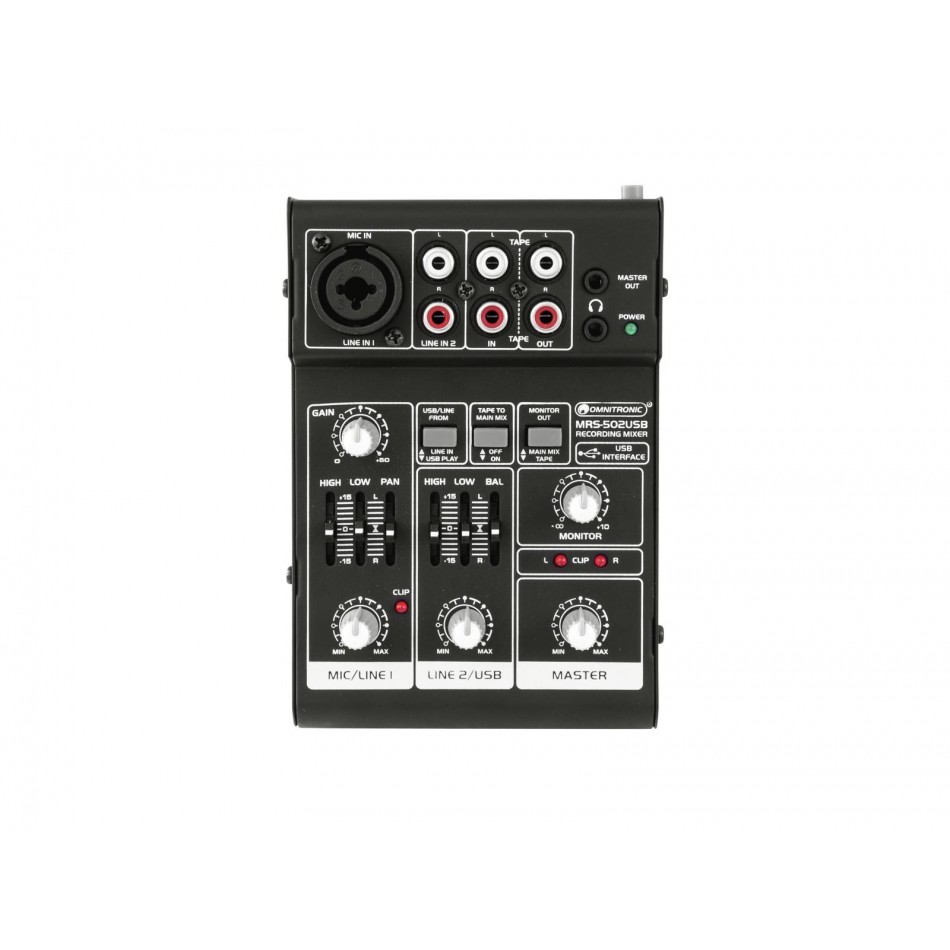

Miniature audio mixer with USB interface
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- Full duplex USB port: simultaneous recording and playback possible
- 1 mono input channel with gain control, 2-band EQ and pan control, clip LED
- 1 stereo input channel with level control, 2-band EQ and balance control
- Tape input and output
- 3.5 mm stereo master output
- Adjustable headphones output
- +20 V phantom power, permanent
- Clip LED L/R
- Operation via supplied power unit or USB port
- Rugged, compact metal housing
| Power supply: | 230 V AC, 50 Hz via supplied power unit |
| 5 V DC, 500 mA via USB port | |
| Power consumption: | 2.5 W |
| Inputs/sensitivity: | |
| 1 x Mic, mono | 0.5 mV, combination XLR/6.3 mm jack bal. |
| 2 x Line In, stereo | 2 mV,150 mV, RCA L/R |
| 1 x Tape In | 420 mV, RCA L/R |
| Outputs/level: | |
| 1 x Main Out: | 6 V max., 3.5 mm jack unbal. |
| 1 x Tape Out | 2 V max., RCA L/R |
| 1 x Headphones | 2 V max., 3.5 mm jack unbal. |
| USB port: | 2.0, type B |
| Frequency range: | 20-20000 Hz |
| Distortion: | 0.05 % |
| S/N ratio: | 81 dB |
| Tone control/channel: | |
| Treble: | ±15 dB at 12 kHz |
| Bass: | ±15 dB at 80 Hz |
| Phantom power: | +20 V |
| Dimensions (L x W x H): | 148 x 103 x 47 mm |
| Weight: | 430 g |
OMNITRONIC MRS-502USB Recording Mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10040270
- Pristatymas: Išparduota
- 75.12€
