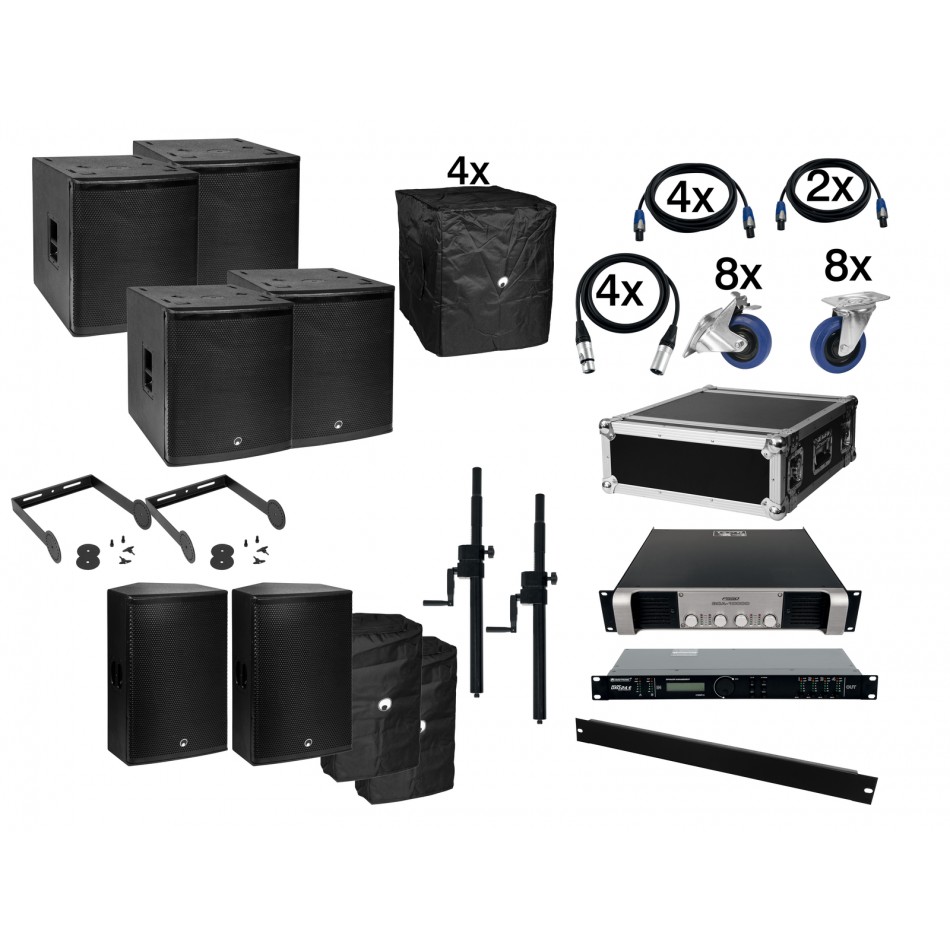

11039482 OMNITRONIC PAS-215 MK3 2-Way Top
Passive speaker with 15" woofer, 1" driver and 400 W RMS
- Rugged full-range top speaker, qualified for suspension
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- 2-way bass-reflex system with 38 cm woofer (8 cm voice coil)
- 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
- Parallel Speaker connections
- Optimized for combination with PAS subwoofers
- Dual flange with 0? and 5? tilt angle enables flexible positioning
- M8 threaded inserts for suspended installation
- Protective grille and recessed aluminum handlebars
- Applications: standing, on a subwoofer or speaker stand, suspended
11039490 OMNITRONIC PAS-181 MK3 Subwoofer
Passive 18" bassreflex subwoofer with 900 W RMS, 8 ohms
- Rugged Pro PA subwoofer, qualified for suspension
- 45 cm (18") bass speaker
- Parallel Speaker connectors
- Rugged multiplex cabinet
- Scratch-resistant lacquer surface
- Recessed aluminum handlebars
- Impact-resistant steel grille with acoustic foam
- Flange for mounting top speakers
- Threaded inserts for suspended installation
- Transport aid: Wheels optional
60004559 OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
Variable distance tube (M20 thread), height adjustable via crank 80-110 cm
- Connecting tube for satellite systems
- Height adjustable via crank 80-110 cm
- M20 thread
- Powder-coated steel version
- Color: black
10451697 PSSO QCA-10000 4-Channel SMPS Amplifier
PA amplifier with SMPS, 4 x 2150 W / 2 ohms, 4 x 2100 W / 4 ohms
- 4-channel PA amplifier with class I circuitry
- 4 x 2100 W/4 ohms
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
- Speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 4 level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
- Highly efficient front-to-rear air routing
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- Neutrik Speakon outputs
- Housing design: (19") 48.3 cm rack installation 2 U
30109784 ROADINGER Amplifier Rack PR-2, 4U, 47cm deep
Flightcase for 483 mm units (19")
- Profile rails with 4 U mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
- Front and rear rack rails
- 2 removable covers (double-door version)
- Max. depth 420 mm (plus 90 mm per cover)
- High-quality workmanship with plywood multilayered glued, black laminated
- Aluminum profile frames (30 mm) with rounded edges
- Three-leg, medium-sized steel ball corners
- 4 high-quality butterfly locks (w/o locking function)
- 2 wooden slide rails on the bottom
- 2 hinged, chrome case handles
- Delivery includes mounting screws
- Available in different height units (1 U = 44 mm)
- Housing design: 4 U
10356321 OMNITRONIC DXO-24E Digital Controller
Digital stereo active crossover with 2 inputs and 4 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 4 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for protecting the program settings
- Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
- DSP: Digital signal processor
- PC connect: DXO Software via USB Firmware can be updated
- Housing design: (19") 48.3 cm rack installation 1 U
30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
U-front panel in different sizes
- 1 mm steel, black, powder-coated
- Weight 465-1350 g (depending on the version)
- Housing design: 1 U
3000400D ROADINGER Swivel Castor RD-100 100mm blue
Swivel castor
- Housing made of steel, zinc-plated
- Blue elastic tyre ? 100 mm, hub width 40 mm
- Hole pattern 80 x 60 mm, clear span 42 mm
- Carrying capacity: 200 kg per set (4 castors)
3000400C ROADINGER Swivel Castor RD-100B 100mm blue with brake
Lockable swivel castor
- Double-action brake (wheel and swivel)
- Housing made of steel, zinc-plated
- Blue elastic tyre ? 100 mm, hub width 40 mm
- Hole pattern 80 x 60 mm, clear span 42 mm
- Carrying capacity: 200 kg per set (4 castors)
30227840 PSSO XLR cable 3pin 1m bk Neutrik
Dependable microphone cable
- High quality connection for microphones etc.
- High conductivity
- Slim and short construction
- Made in Germany
3022790K PSSO Speaker cable Speakon 2x2.5 1.5m bk
High-quality speaker cable
- With Neutrik plugs from Liechtenstein
- Cable from German production
- 2 pole speaker cable
- With Neutrik Speakon cable plugs
- Cable cross-section: 2.5 mm?
- Cable length 1.5 m
- Cable diameter 8 mm
- Weight 0.2 kg
30227912 PSSO Speaker cable Speakon 2x2.5 10m bk
High-quality speaker cable
- With Neutrik plugs from Liechtenstein
- Cable from German production
- 2 pole speaker cable
- With Neutrik Speakon cable plugs
- Cable cross-section: 2.5 mm?
- Cable length: 10 m
- Cable diameter: 8 mm
- Weight: 1 kg
11039534 OMNITRONIC PAS-215 MK3 Cover
15" protective cover
- Suitable for PAS-215 MK3
- Durable black Oxford nylon fabric
11039537 OMNITRONIC PAS-181 MK3 Cover
18" subwoofer protective cover
- Suitable for PAS-181 MK3
- Durable black Oxford nylon fabric
| Weight: | 282.62 kg |
| 11039482 OMNITRONIC PAS-215 MK3 2-Way Top | |
| Rated power: | 400 W RMS |
| Program power: | 800 W |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 127 dB |
| Dispersion angle: | 90? x 60? |
| Crossover frequency: | 3000 Hz |
| Impedance: | 8 Ohm |
| Color: | Black, painted |
| Attachment system: | ? 35mm variable tilt |
| Connections: | Input: 2 x Speakers via Speaker built-in socket (f) |
| Speakers: | 1 x compression tweeter highs (1") approx 2,5 cm with Ferritmagnet basket material Aluminum |
| Voice coil compression tweeter highs (1.5") approx 4 cm | |
| Horn vent (1") approx 2,5 cm | |
| 1 x woofer (15") approx 38 cm with Ferritmagnet | |
| Voice coil lows (3") approx. 8 cm | |
| Material: | Birch multiplex |
| Flying points: | 4 x M10 thread; 6 x M8 thread |
| Width: | 45 cm |
| Height: | 43.5 cm |
| Depth: | 69.5 cm |
| Weight: | 24.20 kg |
| 11039490 OMNITRONIC PAS-181 MK3 Subwoofer | |
| Rated power: | 900 W RMS |
| Program power: | 1800 W |
| Frequency range: | 38 - 200 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 130 dB |
| Impedance: | 8 Ohm |
| Color: | Black, painted |
| Connections: | Input: 2 x Speakers via Speaker built-in socket (f) |
| Speakers: | 1 x woofer (18") approx 45 cm with Ferritmagnet basket material Aluminum |
| Voice coil lows (4") approx. 10 cm | |
| Construction: | Vented |
| Material: | Birch multiplex |
| Width: | 54 cm |
| Height: | 63 cm |
| Depth: | 68 cm |
| Weight: | 42.70 kg |
| 11039547 OMNITRONIC Swing Bracket for PAS-215 MK3 | |
| Weight: | 4.41 kg |
| 60004559 OMNITRONIC Distance Tube Subwoofer/Satellite with Crank | |
| Maximum carrying capacity: | 35 kg |
| Height: | maximum: 1.1 m minimum: 0.8 m |
| Color: | Black |
| Attachment system: | ? 35mm |
| Type (general stands): | Distance tube |
| Weight: | 2.75 kg |
| 10451697 PSSO QCA-10000 4-Channel SMPS Amplifier | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1150 W 1/8 power |
| Output power: | 4 x 2500 W RMS (2 ohms) |
| 4 x 2100 W RMS (4 ohms) | |
| 4 x 1300 W RMS (8 ohms) | |
| 2 x 5000 W RMS bridged (4 ohms) | |
| 2 x 4200 W RMS bridged (8 ohms) | |
| Power connection: | Fixed Power supply cord with safety plug |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >80 dB |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Gain: | 40.3 dB/ 0.775 V |
| 38 dB/ 1.0 V | |
| 35.1 dB/ 1.4 V | |
| Circuitry: | Class I |
| Slew rate: | >10 V/?s |
| Damping factor: | >800 |
| Crosstalk: | >65 dB |
| Control elements: | power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: | overheat; overload; short-circuit; softstart; DC voltage; VHF |
| Indicators: | power, level meter, clip, protect |
| Connections: | Input: 4 x line via 5-pin XLR |
| Output: 4 x line via 5-pin XLR | |
| Output: 4 x Speakers via Speaker built-in socket (f) | |
| Input sensitivity: | 38 dB; 32 dB; 26 dB switchable |
| Input sensitivity: | ca. 0.775 V; ca. 1.0 V; ca. 1.4 V switchable |
| Distortion: | <0.05 % |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48.3 cm |
| Height: | 8.9 cm |
| Depth: | 44.5 cm |
| Weight: | 13.90 kg |
| 30109784 ROADINGER Amplifier Rack PR-2, 4U, 47cm deep | |
| Maximum load: | 25 kg |
| Color: | Black, laminated |
| Material: | Glued plywood, 7 mm |
| Outer dimensions/corners approx.: | 64 mm |
| Mounting width: | 483 mm (ca. 19") |
| Mounting height: | approx. 180 mm (4 U) |
| Mounting depth: | 420 mm |
| Housing design: | 4 U |
| Width: | 54.5 cm |
| Height: | 22 cm |
| Depth: | 64 cm |
| Weight: | 9.40 kg |
| 10356321 OMNITRONIC DXO-24E Digital Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz 6 V DC 800 mA |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Frequency range: | 10 - 30000 Hz |
| DSP: | Digital signal processor |
| Crossover frequency: | 20-20000 Hz |
| Impedance: | Input 10 kOhm |
| Output 50 Ohm | |
| Gain: | Output: -50 dB to +12 dB |
| Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct |
| Delay: | 0 - 5 ms |
| Dynamic range: | Input: 114 dB |
| Output: 110 dB | |
| Sample rate: | 67 kHz |
| Connections: | Input: 2 x line via 3-pin XLR |
| Output: 4 x line via 3-pin XLR | |
| Max. level: | Input: +22 dBu |
| Output: +9 dBu | |
| USB port: | Typ B |
| Distortion: | <0.005 % |
| PC connect: | DXO Software via USB Firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Width: | 48.3 cm |
| Height: | 4.45 cm |
| Depth: | 12.8 cm |
| Weight: | 1.77 kg |
| 30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U | |
| Strength: | 1 mm |
| Mounting height: | approx. 4.45 mm (1 U) |
| Housing design: | 1 U |
| Width: | 48.3 cm |
| Height: | 4.45 cm |
| Weight: | 0.30 kg |
| 3000400D ROADINGER Swivel Castor RD-100 100mm blue | |
| Color: | Blue |
| Diameter: | 100 mm |
| 3000400C ROADINGER Swivel Castor RD-100B 100mm blue with brake | |
| Color: | Blue |
| Diameter: | 100 mm |
| 30227840 PSSO XLR cable 3pin 1m bk Neutrik | |
| Cable construction: | 2 x 0.22 mm? Audio cable |
| Cable length: | 1 m |
| Plug A: | 1 x 3-pin XLR (M) |
| Plug B: | 1 x 3-pin XLR (F) |
| Color: | Black |
| Use of brands: | NEUTRIK |
| Weight: | 0.11 kg |
| 3022790K PSSO Speaker cable Speakon 2x2.5 1.5m bk | |
| Cable construction: | 2 x 2.5 mm? Loudspeaker cable |
| Cable length: | 1.5 m |
| Plug A: | 1 x 2-pin speakON (M) |
| Plug B: | 1 x 2-pin speakON (M) |
| Color: | Black |
| Use of brands: | NEUTRIK |
| Weight: | 0.19 kg |
| 30227912 PSSO Speaker cable Speakon 2x2.5 10m bk | |
| Cable construction: | 2 x 2.5 mm? Loudspeaker cable |
| Cable length: | 10 m |
| Plug A: | 1 x 2-pin speakON (M) |
| Plug B: | 1 x 2-pin speakON (M) |
| Color: | Black |
| Use of brands: | NEUTRIK |
| Weight: | 1 kg |
| 11039534 OMNITRONIC PAS-215 MK3 Cover | |
| Weight: | 0.64 kg |
| 11039537 OMNITRONIC PAS-181 MK3 Cover | |
| Weight: | 1.08 kg |
OMNITRONIC PAS MK3 Band Set
- Gamintojas: OMNITRONIC
- Prekės kodas: 20000746
- Pristatymas: Išparduota
- 677,256.97€
