Universal 12-channel live mixer with 2 x 300 W/4 ohms
- Low noise 12-channel mic/line mixer
- 8 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
- Insert or Direct Out for every mono channel
- 2 stereo inputs via balanced jacks
- Echo effect
- 4-band EQ for all inputs
- Peak LED per input
- 2 Aux Send (1 pre, 1 post) per channel for controlling the effects and for monitoring
- 2 mono Aux Return with balanced 6.3 mm jack sockets
- Separate Main Mix, Group and headphones outputs
- Tape inputs and outputs
- 7-band equalizer for fine-tuned sound
- Precise 10-digit LED meter
- Output power 2 x 300 W/4 ohms
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 800 W |
| Inputs: | |
| 8 mono | XLR or balanced 6.3 mm jacks |
| 8 inserts | 6.3 mm jacks |
| 2 stereo | balanced 6.3 mm jacks |
| 1 Aux Return: | balanced 6.3 mm jack |
| Tape In | RCA |
| Outputs: | |
| 1 Main Out: | XLR or balanced 6.3 mm jacks |
| 1 Headphone | balanced 6.3 mm jack |
| 1 Aux Send: | balanced 6.3 mm jack |
| 8 Direct Out | 6.3 mm jacks |
| Tape Out | RCA |
| Frequency range: | |
| Microphone: | 10-60000 Hz, ±3 dB |
| Mono: | 10-60000 Hz, ±3 dB |
| Stereo: | 10-55000 Hz, ±3 dB |
| Distortion: | 0.01 % |
| S/N ratio: | 112 dB |
| Tone control/channel: | |
| Treble: | ±15 dB at 12 kHz |
| Middle: | ±15 dB at 2.5 kHz |
| Bass: | ±15 dB at 80 Hz |
| Power output sine: | |
| Stereo 4 ohms | 2 x 300 W |
| Dimensions (W x D x H): | 550 x 390 x 125 mm |
| Weight: | 13 kg |
| Length: | 55 cm |
| Height: | 12.5 cm |
| Width: | 39 cm |

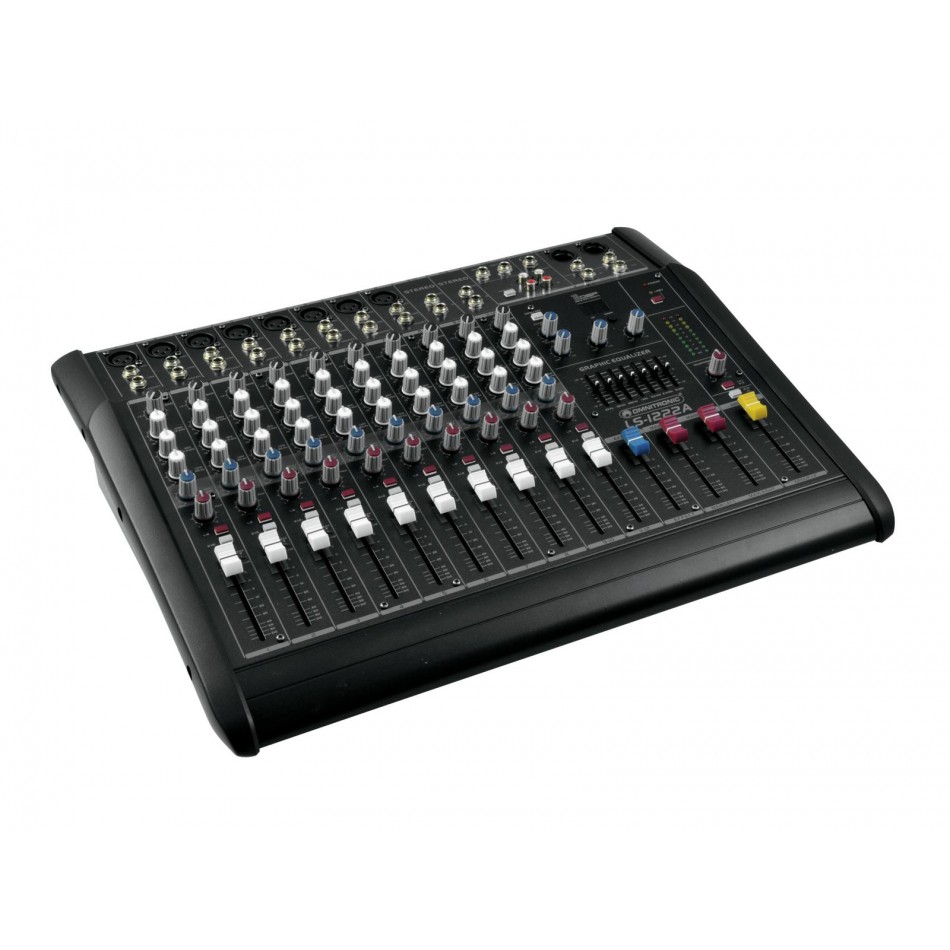

OMNITRONIC LS-1222A Powered Live Mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10060200
- Pristatymas: Išparduota
- 600.63€
