10603060 OMNITRONIC DD-2520 USB Turntable bk
Direct-driven record player with phono/line switch

Digitize your old vinyl treasures in a few steps – with the direct-driven turntable Omnitronic DD-2520 USB.

Copying is a child’splay

Thanks to the integrated USB interface and software you can record your favorite vinyls on your PC. You don’t need any drivers, the player is identified automatically. A phono pre-amp is inbuilt and helps you to digitize your music without the need of additional hifi amps or DJ mixers.

Phono/line switch
You can also simply play and enjoy your records with the DD-2520. The switchable phono/line output enables you to connect the player to almost any sound system with phono or line input.

Fully-fledged DJ turntable
As the DD-2520 shows a precision drive, a rugged housing and shock-absorbing feet, it is perfectly suited to as player in your DJ set at home.

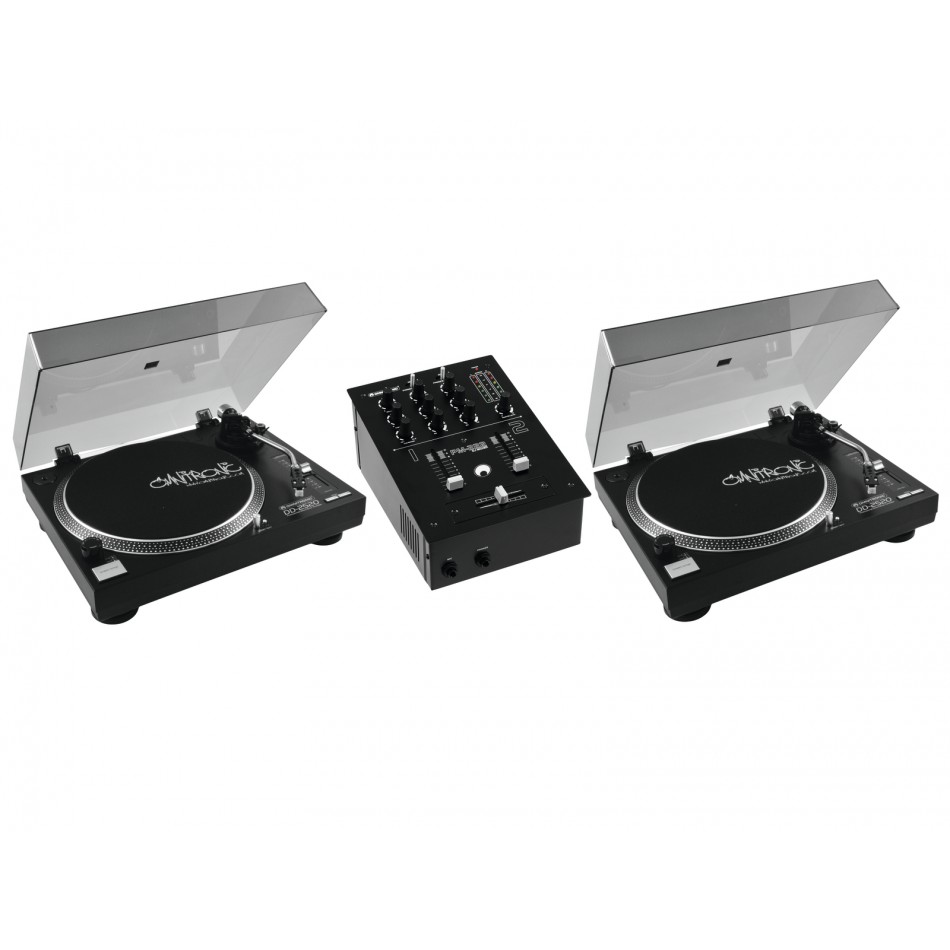

 Set consisting of:
1x 10006819: OMNITRONIC PM-222 2-Channel DJ Mixer
2x 10603060: OMNITRONIC DD-2520 USB Turntable bk

10006819 OMNITRONIC PM-222 2-Channel DJ Mixer

2-channel DJ mixer

    2 input channels with gain control, 2-way equalizer and phono/line switching
    DJ microphone input with level control
    Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control
    Replaceable crossfader for crossfading between both channels
    6-digit stereo LED level meter and master level control
    Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
    Outputs: master and record (stereo RCA)

10603060 OMNITRONIC DD-2520 USB Turntable bk

Direct-drive DJ turntable with switchable phono/line output

•     Built-in USB port and additional phono preamplifier, for a high-quality and convenient digitization of analog vinyl records
•     Driver installation not required, unit is identified automatically
•     Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits
•     Incl. software for recording and editing
•     Precision direct drive
•     Delivery includes pick-up system
•     2 speeds, pitch control ±10 %
•     Large start/stop button
•     Strobe lamp for exact speed adjustment
•     Target lamp
•     Delivery includes removable dustcover
•     Adjustable anti-skating
•     Shock-absorbing feet
•     Switchable output phono/line
•     USB 1.1 support
•     Suitable for Windows XP, Vista, 7 and Mac OS X

• 0006819 OMNITRONIC PM-222 2-Channel DJ Mixer
• Power supply:    100-240 V AC, 50/60 Hz
• Inputs:
• DJ microphone:    6.3 mm jack
• Minimum input voltage:    3 mV RMS/ 47 kohms
• LINE:    stereo RCA
• Minimum input voltage:    150 mV RMS/ 47 kohms
• PHONO:    stereo RCA
• Minimum input voltage:    3 mV RMS/ 47 kohms
• Outputs:
• MASTER:    stereo RCA
• Max. output level:    +19 dBu
• Output voltage:    7 V RMS
• REC:    stereo RCA
• Output voltage:    2.4V RMS
• Headphones output:    6.3 mm stereo jack (min. 32 ohms)
• Tone control:
• 2 x High:    -24 dB to +15 dB/ 12 kHz
• 2 x Low:    -24 dB to +15 dB/ 100 Hz
• S/N ratio:    >70 dB
• Distortion:    <0.025%
• Dimensions (L x W x H):    260 x 190 x 137 mm
• Weight:    2 kg
• Power consumption:    30.00 W
• Frequency range:    20 - 20000 Hz
• Height:    13,7 cm
• Depths:    26 cm
• Width:    19 cm
• 10603060 OMNITRONIC DD-2520 USB Turntable bk
• Power supply:    115/230 V, 50/60 Hz
• Type:    Manual turntable
• Drive method:    Direct drive
• Motor:    Brushless 24 V DC motor
• Speed:    33 1/3 RPM and 45 RPM
• Change time between speeds:    33 ->45 RPM in <1 sec
•     45 ->33 RPM in <1 sec
• Pitch adjustment:    ±10 % via fader
• Initial torque:    >1.0 kg/cm
• Start time:    <1 sec
• Stop time:    <1 sec
• Wow and flutter:    <0.15 %
• Rumble:    55 dB DIN B
• Platter:    Outer diameter 330 mm
• Tonearm:    S-shape with Cardan's suspension
• Tonearm length:    230.5 mm
• Overhang:    16 mm
• Adjustable stylus pressure    0-4 g
• Anti-skating range:    0-7 g
• Phono output level:    1.5-3.6 mV/ 1 kHz 5 cm/sec
• Line output level:    90-216 mV/ 1 kHz 5 cm/sec
• Channel separation:    >15 dB
• Output connectors:    RCA, USB type B
• Dimensions:    450 x 350 x 155 mm
• Weight:    11 kg
• Power consumption:    12.00 W
• Drive type:    Direct drive
• Frequency range:    20 - 20000 Hz
• Height:    15,5 cm
• Depths:    35 cm
• Width:    45 cm
