Active 10" PA speaker with DSP presets, limiter, 300 W RMS
- Active PA speaker system for touring applications and permanent installations
- 2-way bassreflex enclosure with 25 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 300 watts power
- 3 EQ presets with indicators (DJ, monitor, flat)
- Switchable low cut (120 Hz, 90 Hz)
- Switch-on delay and limiter for overload protection
- Master control, limit, signal and power LED
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- XLR output for linking further active speaker systems
- Optimized for combination with PAS subwoofers
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- M8/M10 threaded inserts for suspended installation
- Dual flange with 0? and 5? tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- DSP: Digital signal processor
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 350 W |
| Output power: | 300 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 65 - 20000 Hz |
| Max. SPL: | 121 dB |
| DSP: | Digital signal processor |
| Dispersion angle: | 90? x 60? |
| Color: | Black painted |
| Attachment: | Flange system ? 35mm variable tilt |
| Circuitry: | Class D |
| Connections: | Input: via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| link: via 3-pin XLR | |
| input channels: | 1 x Mono with Mic/line button via XLR, channel control via Rotary knob |
| Speakers: | 1 x Tweeter highs (1") approx 2,5 cm with Ferritmagnet basket material Aluminum |
| Voice coil tweeter (1.5") approx 4 cm | |
| Horn vent (1") approx 2,5 cm | |
| 1 x woofer (10") approx 25 cm with Ferritmagnet | |
| Voice coil lows (2.5") approx. 6.35 cm | |
| Material: | Birch multiplex |
| Flying points: | 4 x M10; 5 x M8 |
| Width: | 32 cm |
| Height: | 30 cm |
| Depth: | 52.5 cm |
| Weight: | 15.00 kg |

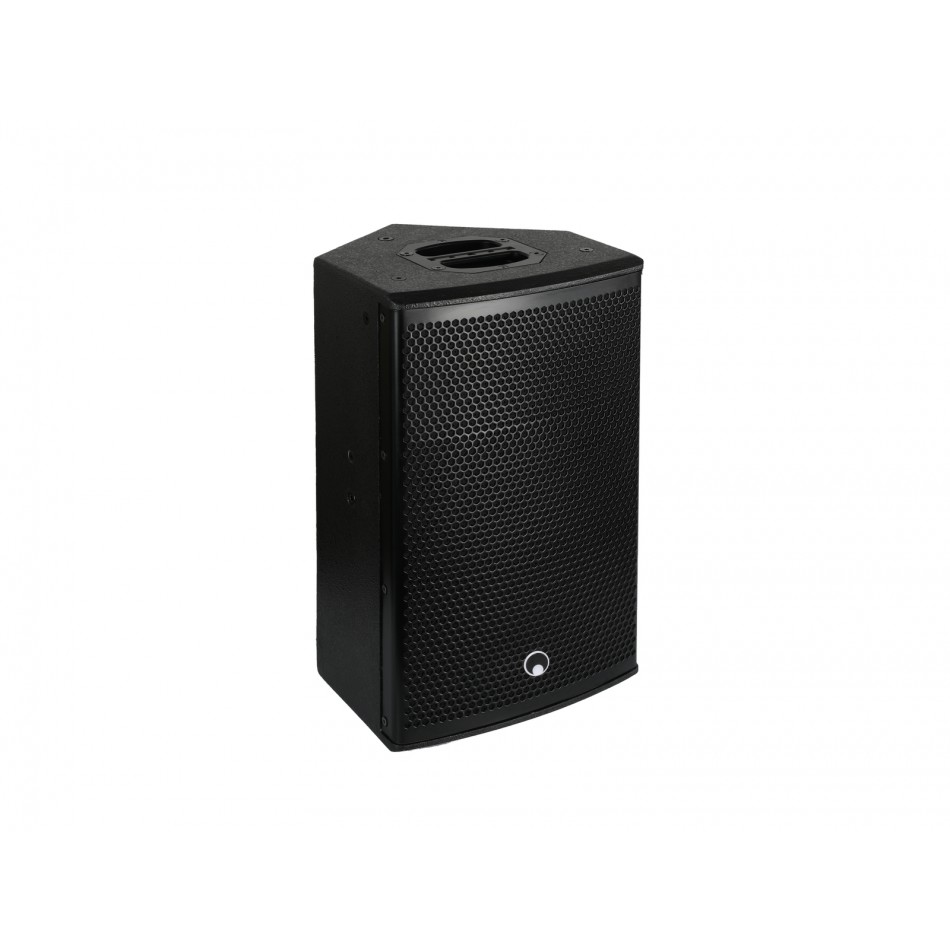

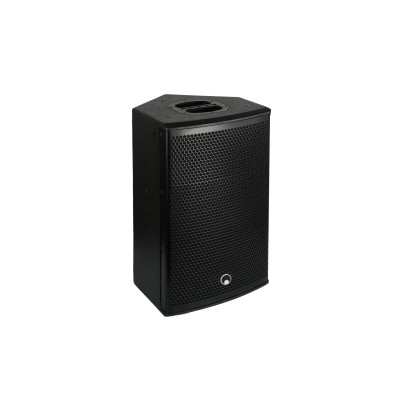

OMNITRONIC PAS-210A MK3 2-Way Top, active, DSP
- Gamintojas: OMNITRONIC
- Prekės kodas: 11039475
- Pristatymas: Išparduota
- 352.94€
