13072230 OMNITRONIC WMT-1M UHF Transmitter, mono
Wireless mono audio transmission system, 823-832 MHz
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Duplex gap 823-832 MHz
- Parallel use of up to 4 transmitters possible
- Compatible with MOM-10BT4 system
- 16 channels selectable
- Audio line input (3.5?mm jack) and microphone input (mini XLR)
- Volume level control
- Operation via 2 batteries or rechargeable batteries size AA
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip
- Incl. USB charging cable and 3.5 mm audio cable
- License-free and approved in large parts of the EU
13072231 OMNITRONIC WMR-1M UHF-Receiver, mono
Wireless mono audio transmission system, 823-832 MHz
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Duplex gap 823-832 MHz
- Parallel use of up to 4 transmitters possible
- Compatible with MOM-10BT4 system
- 16 channels selectable
- Audio line output and earphone connection via 3.5?mm jack
- Volume level control
- Operation via 2 batteries or rechargeable batteries size AA
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip
- Incl. USB charging cable and 3.5 mm audio cable
- License-free and approved in large parts of the EU
| Weight: | 0.41 kg |
| 13072230 OMNITRONIC WMT-1M UHF Transmitter, mono | |
| Power supply: | 5 V DC |
| 3 V DC | |
| Power connection: | Mains input Micro USB (F) mounting version included |
| Battery/battery pack | |
| Battery: | 2 x Mignon (AA) included |
| S/N ratio: | >90 dB |
| Connector type: | 3.5 mm jack (stereo) mounting version; Mini XLR (M) 3-pin |
| Color: | Black |
| Frequency band: | UHF 823 - 832 MHz |
| Frequency selection: | Switchable frequencys |
| Range: | 50 m |
| switch: | on/off switch |
| Material: | Plastic |
| Width: | 6.7 cm |
| Height: | 11.2 cm |
| Depth: | 3.0 cm |
| Weight: | 0.20 kg |
| Type: | 16-channel PLL audio transmitter |
| Transmitting power: | <10 mW |
| Modulation: | FM |
| Frequency stability: | 10 ppm |
| Pilot frequency: | 32,768 kHz |
| Microphone input: | 3-pin mini XLR jack (supplies 2.5-3 V) |
| Max. input voltage: | 3.5 V (audio unit), 1V (microphone) |
| 13072231 OMNITRONIC WMR-1M UHF-Receiver, mono | |
| Power supply: | 5 V DC |
| 3 V DC | |
| Power connection: | Mains input Micro USB (F) mounting version included |
| Battery/battery pack | |
| Battery: | 2 x Mignon (AA) included |
| S/N ratio: | >80 dB |
| Connector type: | 3.5 mm jack (mono) mounting version |
| Color: | Black |
| Frequency band: | UHF 823 - 832 MHz |
| Frequency selection: | Switchable frequencys |
| Range: | 50 m |
| switch: | on/off switch |
| Material: | Plastic |
| Width: | 6.7 cm |
| Height: | 11.2 cm |
| Depth: | 3.0 cm |
| Weight: | 0.21 kg |
| Type: | 16-channel PLL audio receiver |
| Modulation: | FM |
| Frequency stability: | 10 ppm |
| Pilot frequency: | 32,768 kHz |
| Line/earphone input: | 3.5 mm jack |
| Max. output voltage: | 1 V |

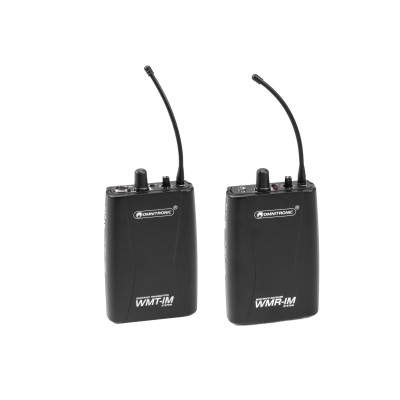

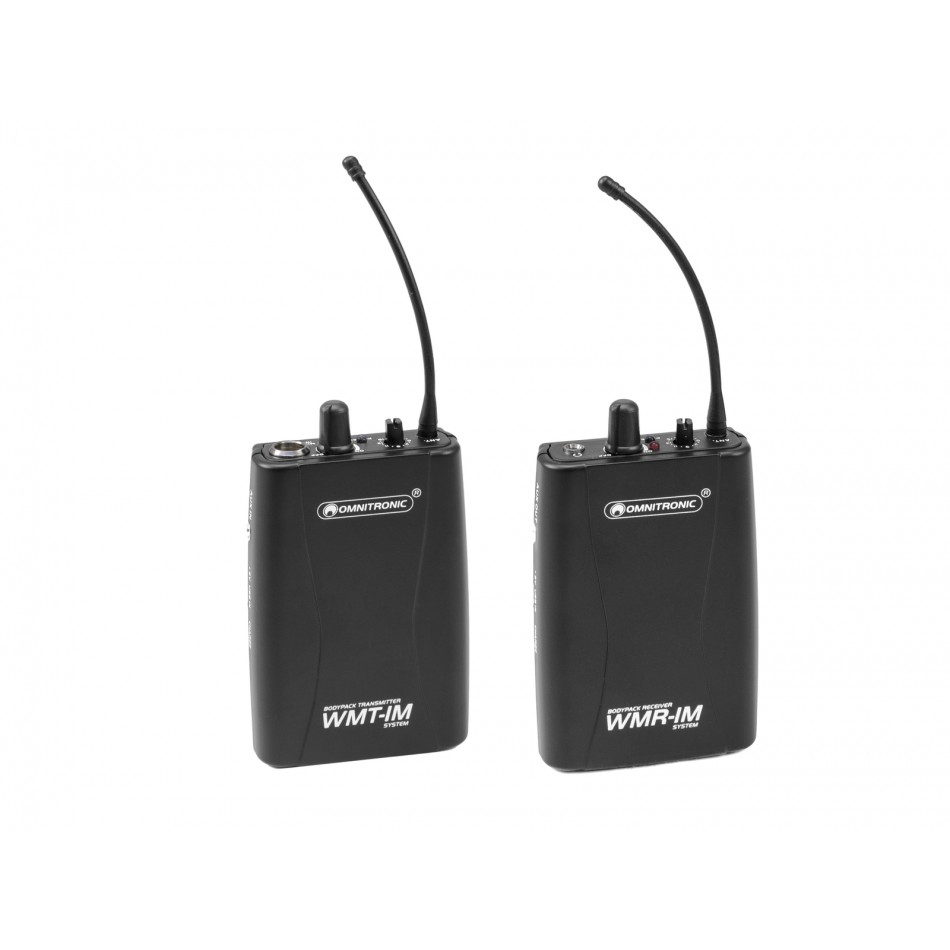

OMNITRONIC Set WMT-1M UHF Transmitter + WMR-1M UHF Receiver
- Gamintojas: OMNITRONIC
- Prekės kodas: 20000667
- Pristatymas: Išparduota
- 135,330.97€
