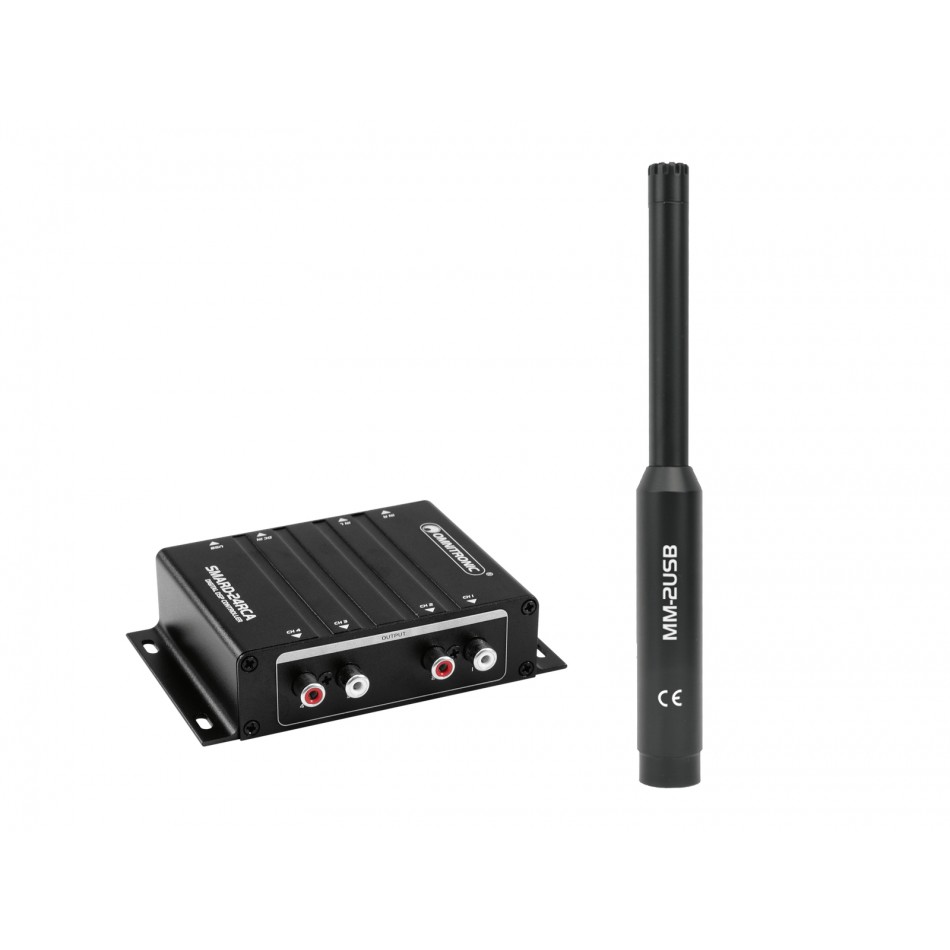

10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller

Digital signal processor (DSP) in miniature format, software included

• Flexible routing configurations for all standard mono and stereo output operating modes
• 2 analog RCA inputs
• 4 analog RCA outputs
• 10-band parametric EQ per input and output
• Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
• Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
• The intelligent software for PC and Mac allows convenient control with a computer
• Up to 50 user presets storable in the device via software
• Up to 10 ms signal delay adjustable for the inputs and outputs
• Limiter and compressor for each input and output
• Switchable phase per output (180?)
• Lock function for protecting the program settings
• 24-bit AD/DA converter
• 48 kHz sampling rate
• FIR filters
• Real-Time-Analyzer function (RTA)
• Incl. control software for programing and remote control via computer through micro USB interface
• Wall mounting
• Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
• Digital signal processor FIR Filter
• The device can be connected via USB to the PC in connection with DXO Software
  The firmware can be updated via the PC connection

13030923 OMNITRONIC MIC MM-2USB USB Condenser Measurement Mic

Precise USB measuring microphone with flat frequency response

• USB measuring microphone for high-grade audio measurements with a computer
• Plug & play: connects to PC and Mac without driver installation
• Designed for measuring PA systems, speakers and room acoustics
• Perfect complement to any real-time analyzer
• Flat frequency response for high precision
• True omnidirectional pattern
• Sturdy all-metal construction and narrow design
• Power supply via USB
• Incl. USB A/B cable, microphone clip, thread adapter (9 mm/3/8") and windscreen
• Polar pattern: Omnidirectional
• The device can be connected via USB to the PC
