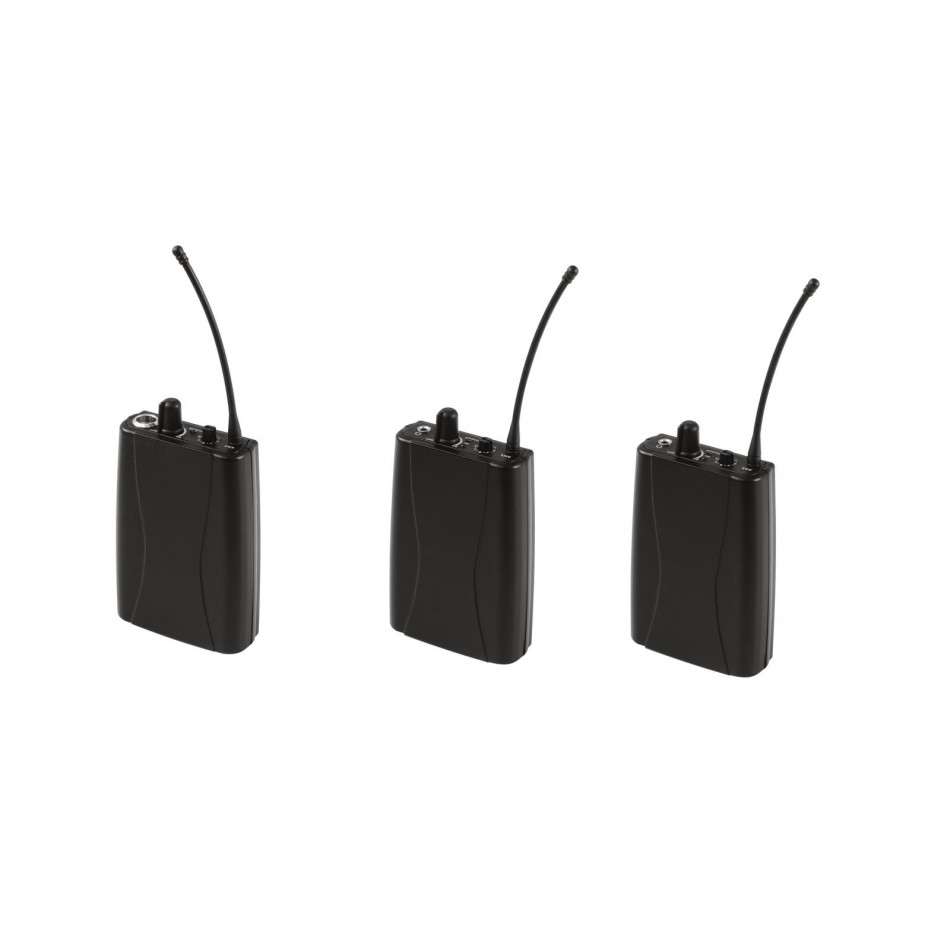

13072230 OMNITRONIC WMT-1M UHF Transmitter, mono

Wireless mono audio transmission system, 823-832 MHz
• Wireless audio transmission system with UHF PLL technology
• For wireless transmission of audio line and microphone signals (mono) with one transmitter and one or more receivers
• Duplex gap 823-832 MHz
• Parallel use of up to 4 transmitters possible
• Operating range up to 50 m
• Audio line input via 3.5 mm mono jack
• Microphone input via mini XLR jack
• 16 channels selectable
• Volume level control
• LED battery indicator
• Robust metal fixing clip
• Power supply via 2 x 1.2 V NiMH rech. battery AA size (not included)
• Micro USB charging port
• License-free in large parts of the EU

13072231 OMNITRONIC WMR-1M UHF-Receiver, mono

Wireless mono audio transmission system, 823-832 MHz
• Wireless audio transmission system with UHF PLL technology
• For wireless transmission of audio line and microphone signals (mono) with one transmitter and one or more receivers
• Duplex gap 823-832 MHz
• Parallel use of up to 4 transmitters possible
• Operating range up to 50 m
• Audio line output and earphone connection via 3.5 mm mono jack
• 16 channels selectable
• Volume level control
• RF reception indicator
• LED battery indicator
• Robust metal fixing clip
• Power supply via 2 x 1.2 V NiMH rech. battery AA size (not included)
• Micro USB charging port
• License-free in large parts of the EU

13072230 OMNITRONIC WMT-1M UHF Transmitter, mono

Type:   16-channel PLL audio transmitter
Frequency range:   823-832 MHz
Transmitting power:   <10 mW
Range:   min. 50 m
Modulation:   FM
Frequency stability:   10 ppm
Pilot frequency:   32,768 kHz
S/N ratio:   >90 dB
Line input:   3.5 mm mono jack
Microphone input:   3-pin mini XLR jack (supplies 2.5-3 V)
Max. input voltage:   250 mV (audio unit), 50 mV (microphone)
Power supply:   2 x 1.2 V rechargeable NiMH battery or 2 x 1.5-V battery (type AA)
Battery operation:   approx. 6 hours
Charging time:   approx. 3 hours
Dimensions:   110 x 65 x 27 mm (w/o antenna)
Weight:   80 g (w/o batteries)

13072231 OMNITRONIC WMR-1M UHF-Receiver, mono

Type:   16-channel PLL audio receiver
Frequency range:   823-832 MHz
Range:   min. 50 m
Modulation:   FM
Frequency stability:   10 ppm
Pilot frequency:   32,768 kHz
S/N ratio:   >80 dB
Line/earphone input:   3.5 mm mono jack
Max. output voltage:   500 mV
Power supply:   2 x 1.2 V rechargeable NiMH battery or 2 x 1.5-V battery (type AA)
Battery operation:   approx. 6 hours
Charging time:   approx. 3 hours
Dimensions:   110 x 65 x 27 mm (w/o antenna)
Weight:   93 g (w/o batteries)
