Stereo PA amplifier with integrated limiter
- Class AB circuitry
- 3 operating modes can be selected (stereo, parallel bridged)
- Limiter, switchable
- Speaker switch-on delay
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and 7-fold output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Groundlift switch against humming
- Selectable input sensitivity
- Fan cooling
- Speaker outputs via lockable Speaker jacks and pairs of screw terminals
- Signal inputs via XLR or 6.3 mm mounting jacks
- Additional Speaker plug for 8-ohm bridge operation
- 8-ohm bridge operation via screw terminals or additional Speaker plug
- Rack installation
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption: | 1700 W (1/8 power) |
| Power output sine: | |
| Stereo 4 ohms | 2 x 1000 W |
| Stereo 8 ohms | 2 x 650 W |
| 8 ohms bridged | 1 x 2000 W |
| Frequency range: | 10-50000 Hz, ± 1.5 dB |
| Damping factor: | >250 |
| Distortion factor: | 0.1 % |
| Slew rate: | 30 V/µsec |
| S/N ratio: | >90 dB |
| Input sensitivity: | 0.77 V/1.0 V/1.4 V |
| Input impedance: | 20 kohms |
| Input voltage: | max. 21 dBV/9V |
| Input connectors: | 2 x XLR, 6.3 mm jack |
| Output connectors: | 2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals |
| Control elements: | power switch, level control per channel, mode switch, limiter |
| Protection circuits: | short-circuit, overheat, DC voltage, power on/off transients, |
| Construction: | steel chassis with aluminum front panel |
| Dimensions (DxWxH): | 425 x 482 x 106 mm (19", 2 U) |
| Weight: | 15.5 kg |
| Shipping weight: | 17.00 kg |

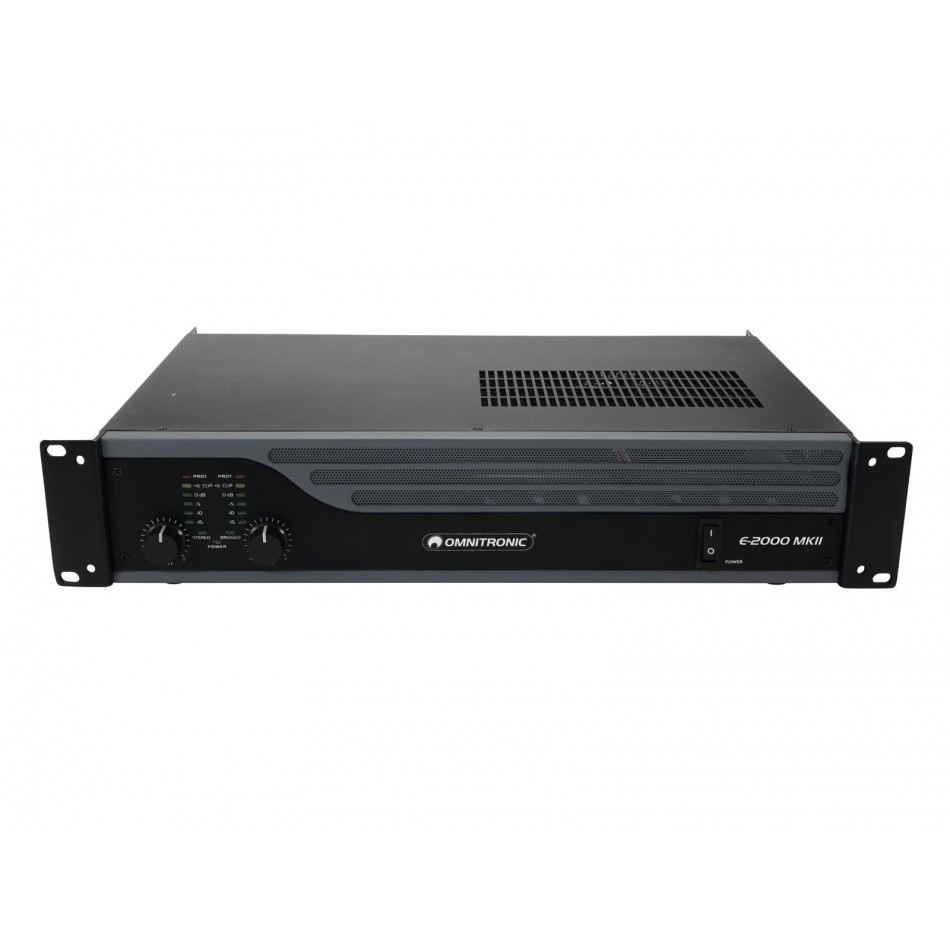

Stiprintuvas OMNITRONIC E-2000 MK2 amplifier
- Gamintojas: OMNITRONIC
- Prekės kodas: 10451069
- Pristatymas: Išparduota
- 654.83€
