Wireless mono audio transmission system, 823-832 MHz + 863-865 MHz
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Compatible with wireless modules and microphones of the MOM and DAD series
- 16 channels selectable
- Parallel use of up to 4 transmitters possible
- Volume level control
- Operation via 2 batteries or rechargeable batteries size AA (not included)
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip
- Incl. USB charging cable and 3.5 mm audio cable
- Incl. lavalier microphone
- WM-2M camera tripod optional
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
| Type: | Bodypack with microphone |
| Power supply: | 3 V DC |
| or 5 V DC | |
| Power connection: | Battery/battery pack |
| Mains input Micro USB (F) mounting version included | |
| Battery: | 2 x Mignon (AA) (not included) |
| Color: | Black |
| Connections: | Input: 1 x line via 3.5 mm jack (stereo) mounting version |
| Input: 1 x Microphone via Mini XLR (M) 3-pin mounting version | |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | Switchable frequencys |
| Range: | 50 m |
| switch: | on/off switch |
| Material: | Plastic |
| Width: | 6.7 cm |
| Height: | 11.2 cm |
| Depth: | 3.0 cm |
| Weight: | 0.15 kg |
| Transmitter | |
| Type: | Pocket transmitter |
| Weight: | 0.08 kg |
| Microphone | |
| Type: | Lavalier microphone |
| Power connection: | Mini XLR (F) 3-pin |
| Capsule type: | Condenser |
| Type: | 16-channel PLL audio transmitter |
| Transmitting power: | <10 mW |
| Modulation: | FM |
| Frequency stability: | 10 ppm |
| Pilot frequency: | 32,768 kHz |
| S/N ratio: | >90 dB |
| Microphone input: | 3-pin mini XLR jack (supplies 2.5-3 V) |
| Max. input voltage: | 7 V (audio unit), 1.8 V (microphone) |

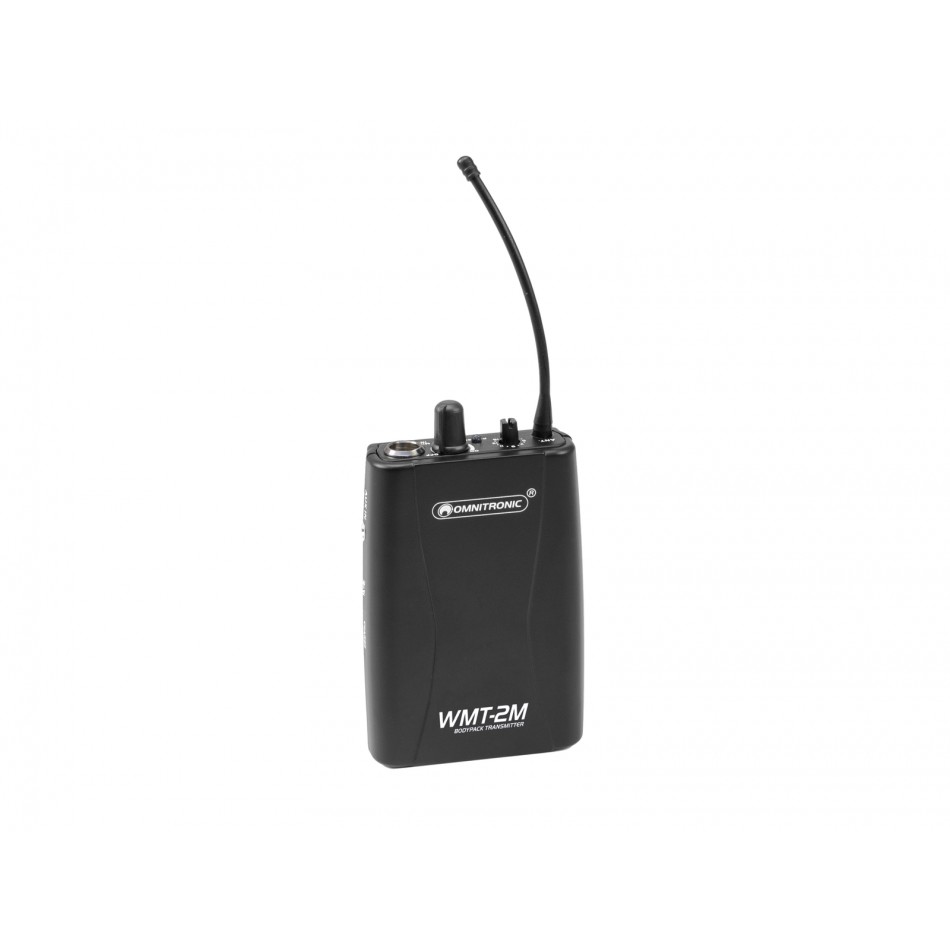

OMNITRONIC WMT-2M UHF Transmitter, mono
- Gamintojas: OMNITRONIC
- Prekės kodas: 13072227
- Pristatymas: Išparduota
- 67,590.22€
