Wireless mono audio transmission system, 823-832 MHz + 863-865 MHz
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Compatible with wireless modules and microphones of the MOM and DAD series
- 16 channels selectable
- Parallel use of up to 4 transmitters possible
- Audio line output and earphone connection via 3.5?mm jack
- Volume level control
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip
- Incl. USB charging cable and 3.5 mm audio cable
- WM-2M camera tripod optional
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
| Type: | Audio transmission |
| Power supply: | 3 V DC |
| or 5 V DC | |
| Power connection: | Battery/battery pack |
| Mains input Micro USB (F) mounting version included | |
| Battery: | 2 x Mignon (AA) (not included) |
| Connector type: | 3.5 mm jack (mono) mounting version |
| Color: | Black |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | Switchable frequencys |
| Range: | 50 m |
| switch: | on/off switch |
| Material: | Plastic |
| Width: | 6.7 cm |
| Height: | 11.2 cm |
| Depth: | 3.0 cm |
| Weight: | 0.13 kg |
| Receiver | |
| Weight: | 0.08 kg |
| Type: | 16-channel PLL audio receiver |
| Modulation: | FM |
| Frequency stability: | 10 ppm |
| Pilot frequency: | 32,768 kHz |
| S/N ratio: | >80 dB |
| Line/earphone input: | 3.5 mm jack |
| Max. output voltage: | 1 V |

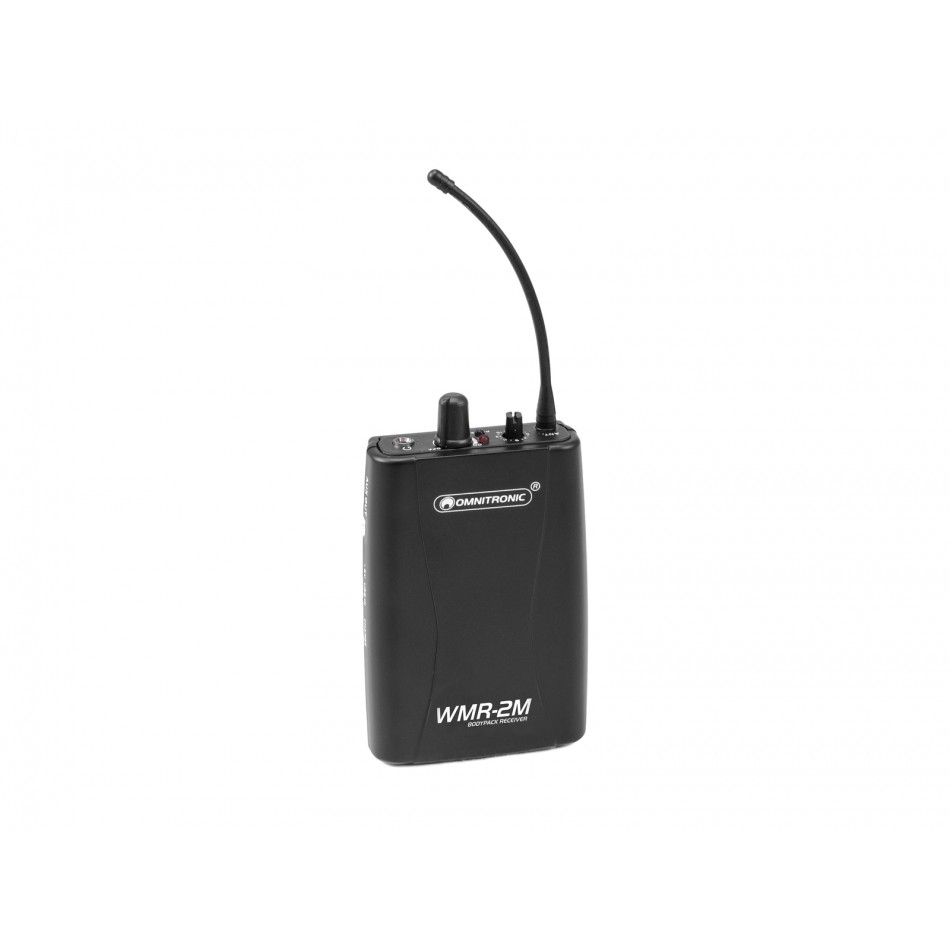

OMNITRONIC WMR-2M UHF Receiver, mono
- Gamintojas: OMNITRONIC
- Prekės kodas: 13072228
- Pristatymas: Išparduota
- 67,590.22€
