LED switching power supply IP67, 320 W / 24 V DC / 13.34 A
- Constant voltage, constant current
- Especially for LED lighting installations with high power requirements
- Full-range AC input
- Low-noise according to EMC standard EN 61000-3-2 class C
- Built-in active PFC filter
- Overload protection by shutdown, auto recovery
- Rugged metal housing
- The device is cooled by passive convection cooling
- MEANWELL Power supply
- Suitable for outdoor use IP67
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP67 |
| Protection class: | Protection class I |
| Power connection: | Fixed supply cord with open wires |
| Cable construction: | 3 x 1 mm² H05RN-F; 2 x 2.08 mm² power cable |
| Cable length: | Approx. 0.3 m |
| Power output: | No connector/cable only |
| Cooling: | Passive convection cooling |
| Housing color: | Silver |
| Controls: | Overheat; overload; Overvoltage; short-circuit |
| Output: | 24 V DC; 13.34 A; 320 W |
| Use of brands: | MEANWELL Power supply |
| Material: | Aluminum |
| Dimensions: | Length: 24.42 cm Width: 6.8 cm Height: 3.88 cm |
| Weight: | 1.80 kg |

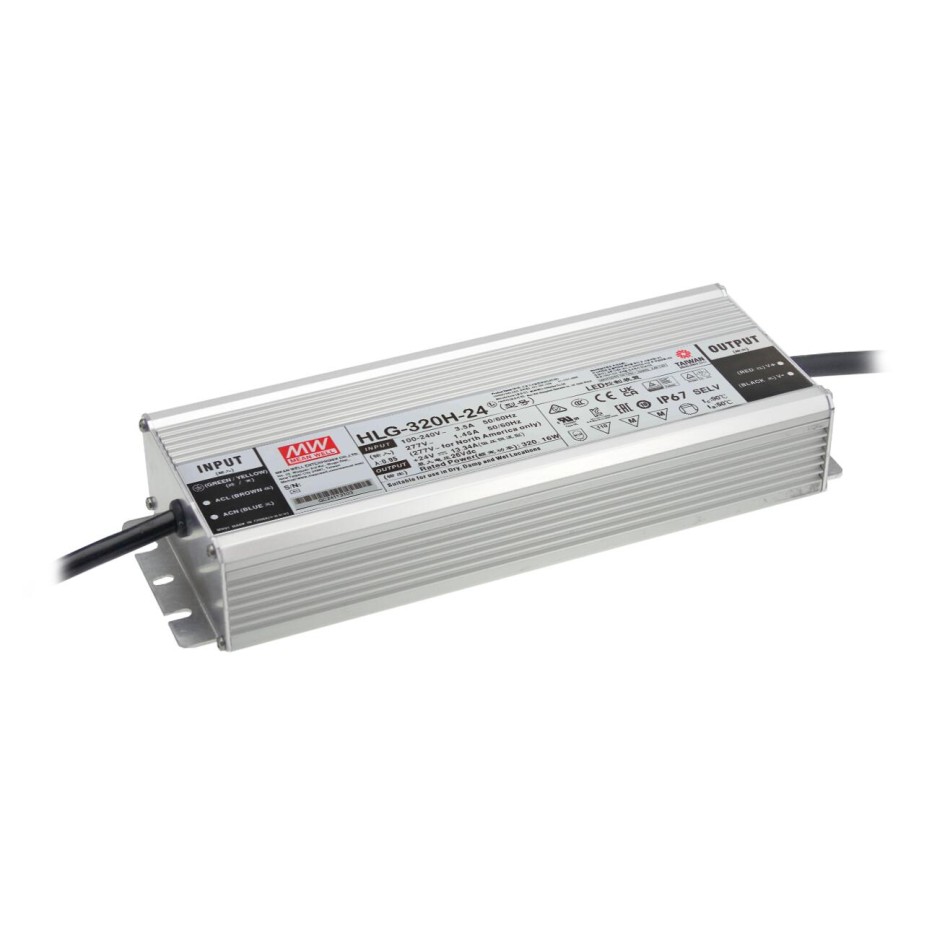

MEANWELL LED Power Supply 320W / 24V IP67 HLG-320H-24
- Gamintojas: MEANWELL
- Prekės kodas: 51405008
- Likutis: 5
- Pristatymas: Iki 9 - jų darbo dienų
- 180.29€
