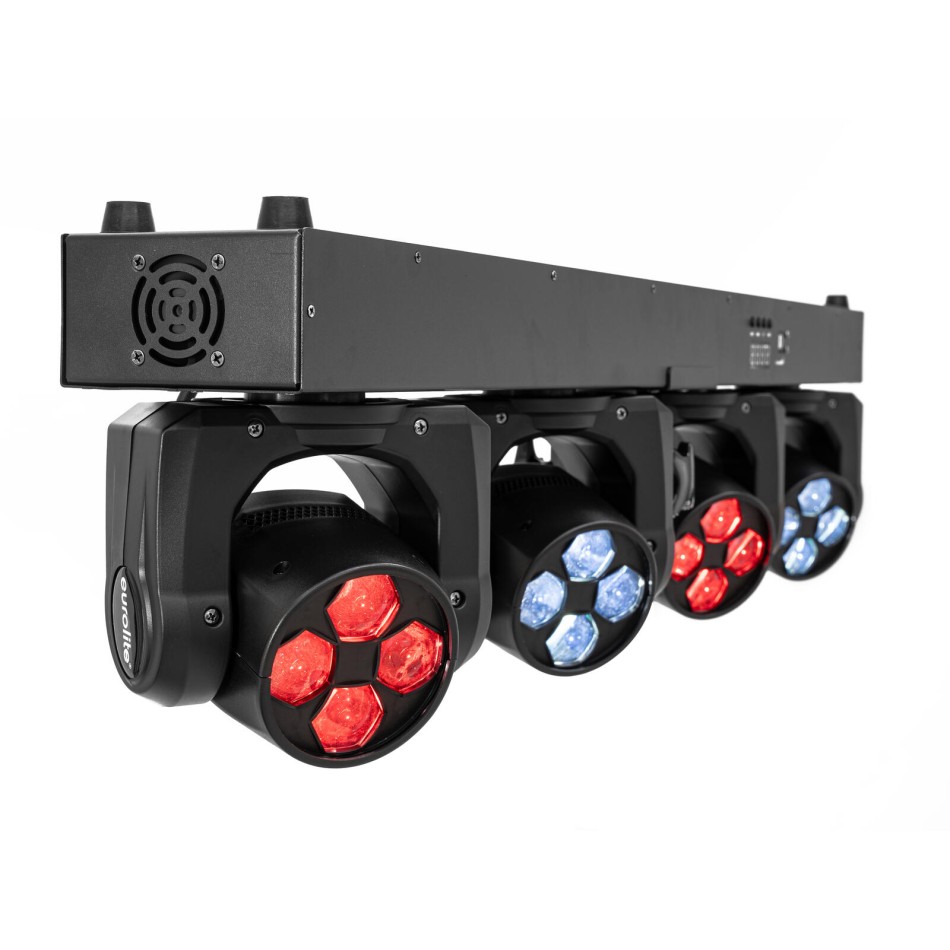

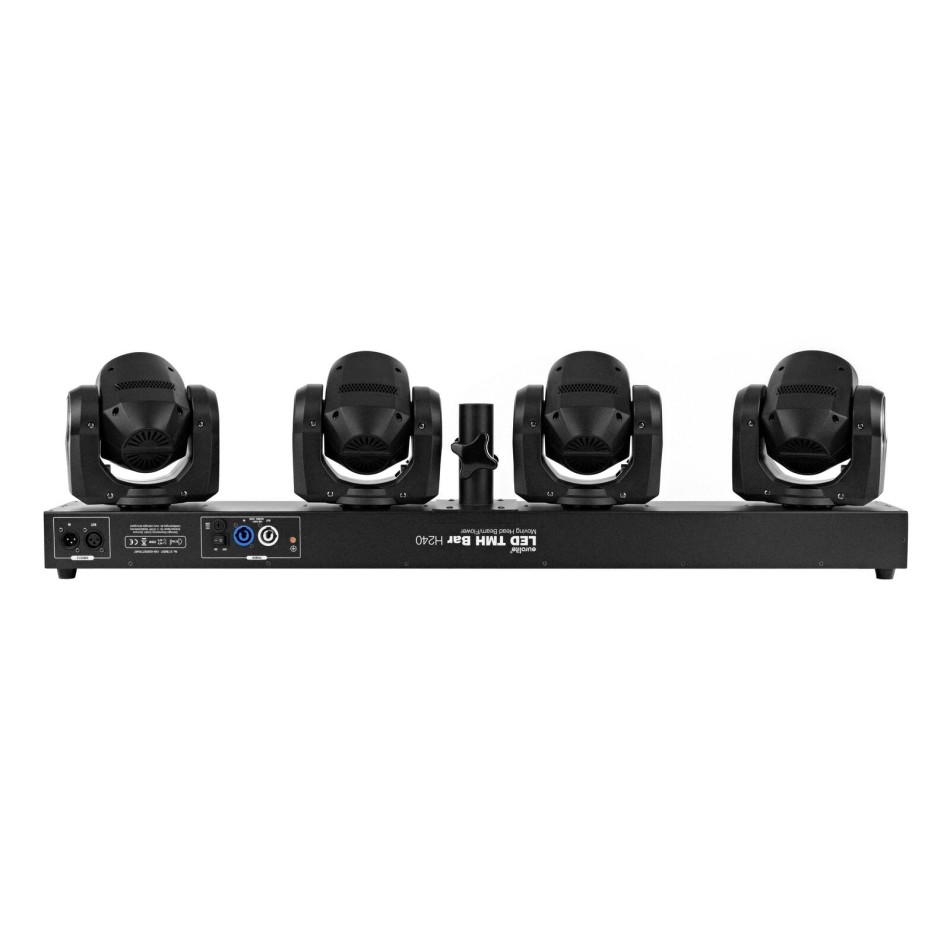

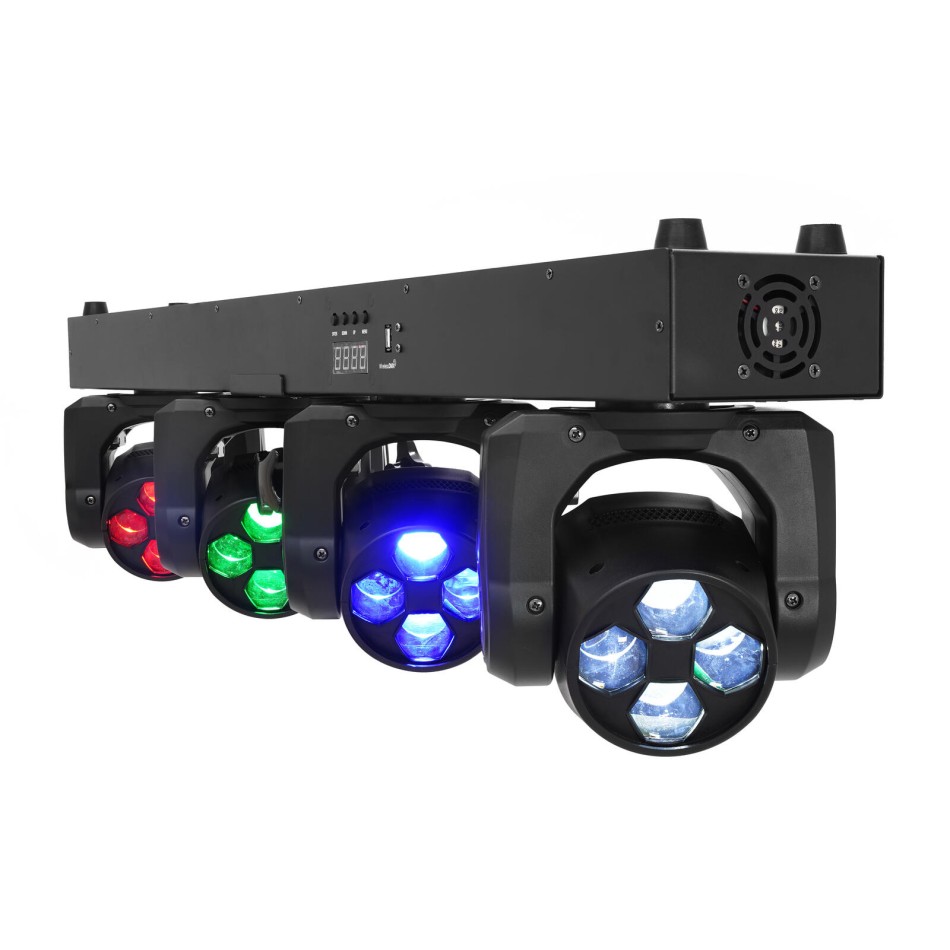

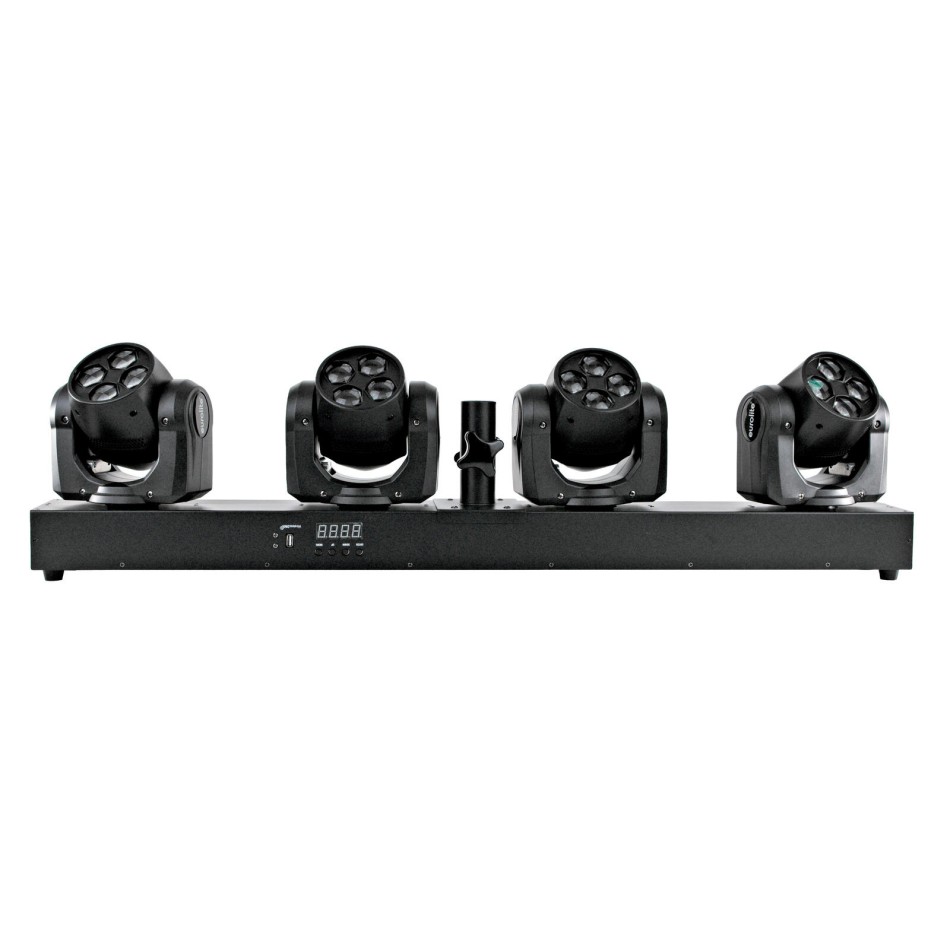

This bar combines four fully featured moving heads in a single system. Each unit is equipped with four 15 W LEDs with RGBW color mixing, allowing for both tight beams and room-filling flower effects.The bar can be used flexibly: mounted on a stand, placed on the floor, or suspended from a truss. Special attention has been paid to ease of control, ensuring that even smaller DMX controllers can operate the bar efficiently. Dedicated modes are available that allow a wide range of positions, movements, chases, and effects to be created using only a few DMX channels. A great example of a suitable controller is the Eurolite Color Chief, which pairs perfectly with this bar.

LED lighting system with 4 individually controllable 60 W moving heads with flower effect in RGBW

  • 16 LEDs 15 W SMD 6065 4in1 RGBW
    4 moving lights effects controlled separately
  • Positioning within 540° PAN, 180° TILT
  • Exact positioning (16 bit resolution)
  • Lens rotation
  • Dimmer electronic; Motion macros adjustable; color selection; color macros adjustable
  • Flower effect; beam effect
  • 22 integrated show programs
  • The device is cooled by cooling fan at the base; cooling fan at the head
  • Control via stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 2°
  • With omega bracket
  • Monochrome 4 digit 7-segment LED display
  • 4 x rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; stage; mobile djs / entertainer; restaurants, bars and hotels; party room
  • Application possibility: Standing; suspended
  • Can be operated in 5; 9; 14; 16; 25; 29; 44; 52 CH mode


Scope of delivery
  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket
  • 2 x safety eyelet


Power supply:100-240 V AC, 50/60 Hz
Power consumption:225 W
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:3 x 1.0 mm² H05VV-F
Power output:P-Con (grey), mounting version
Fuse:5 x 20 mm, T 2 A fuse replaceable
Lamp type:LED lamp
LED type:16 x 15 W SMD 6065 4in1 RGBW
Max. TILT movement:180° exact positioning (16 bit resolution)
Max. PAN movement:540° exact positioning (16 bit resolution)
Flash rate:2 - 15 Hz
Equipment:Lens rotation
DMX channels:5; 9; 14; 16; 25; 29; 44; 52
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:2 x cooling fan at the base
4 x cooling fan at the head
Control:Stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:Light´J; Light Captain; Colorchief
Projection:Flicker-free
PWM frequency:11000 Hz
DMX fail mode:Hold; blackout
Beam angle:2°
Beam angle (1/2 peak):2
Beam angle (1/10 peak):6
Lamp life:20000 h
Housing color:Black
Attachment system:Tube: Ø 35mm
2x omega bracket

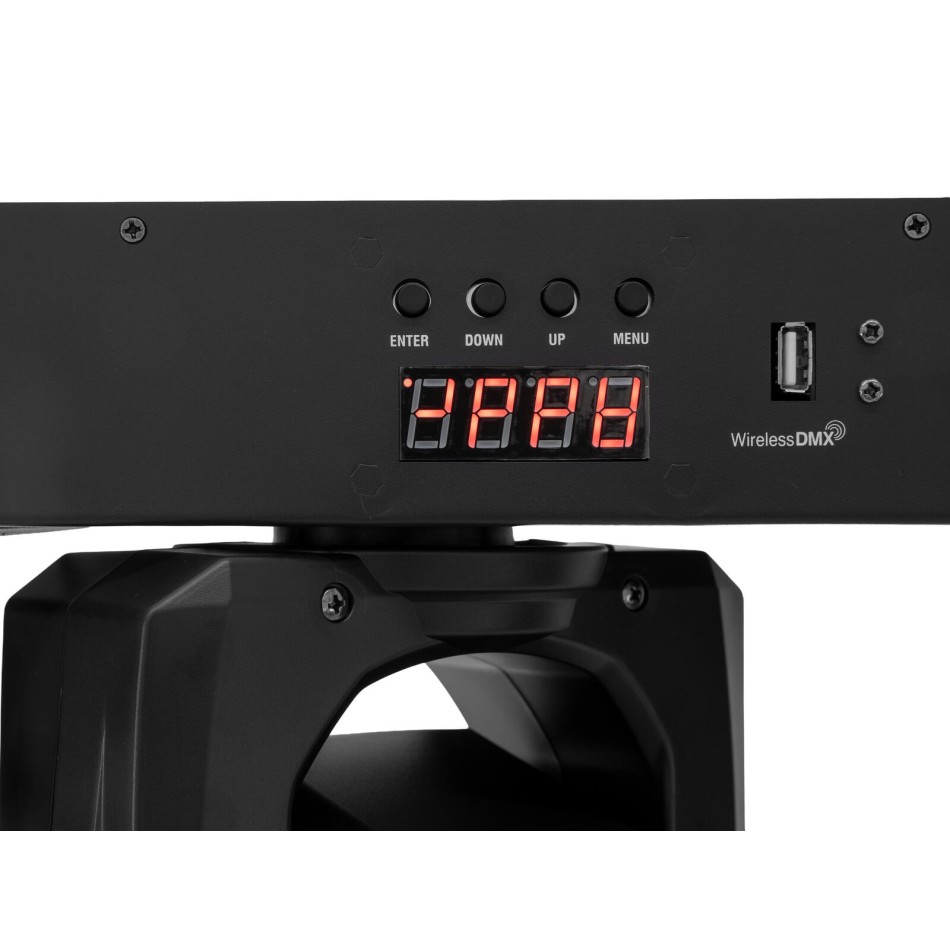

Display type:Monochrome 4 digit 7-segment LED display
Control elements:Power switch
USB port:Type A
Transport aid:4 x rubber feet
Diameter mounting holes:2 x Ø10mm
Material:Metal
Dimensions:Width: 100 cm
Depth: 17.5 cm
Height: 26.0 cm
Weight:12.70 kg
Noise classification:Class 2 (slight noise)
