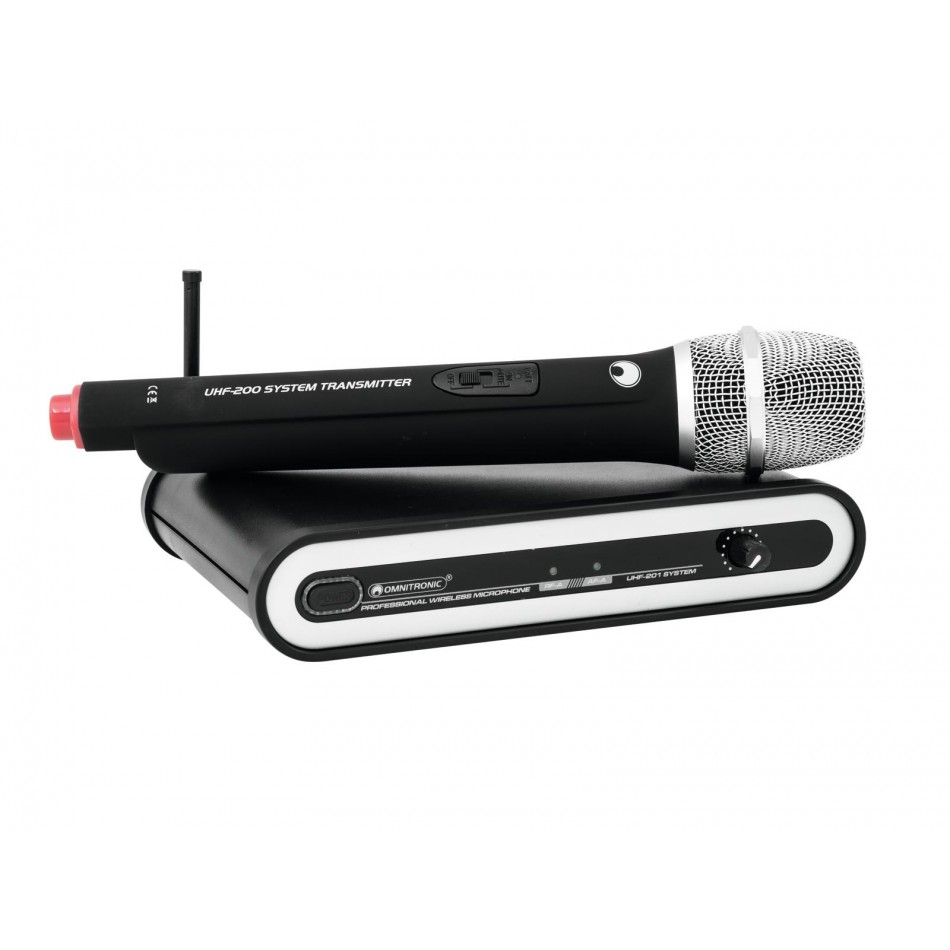

Wireless microphone system with UHF PLL technology
- Receiver unit and hand-held microphone with UHF PLL technology
- Operation in the low-interference UHF band
- Parallel operation of up to 4 sets is possible without any interference
- Volume control
- XLR and 6.3 mm output
- Jack cable included
- LEDs for power, carrier and audio signal
- Microphone with mute switch and color indication
- Matching pocket transmitter can be ordered separately
- License-free and approved in the EU
| System: | Non-Diversity |
| Carrier frequency: | 863.420 MHz |
| Coverage: | 50 m (with line-of-sight) |
| RF power output: | 10 mW |
| Modulation method: | F3F |
| Frequency range: | 40-18000 Hz |
| S/N ratio: | >105 dB |
| Selectivity: | >80 dB |
| T.H.D.: | <0.5 % at 1 kHz |
| Audio outputs: | 400 mV, 2.2 kohms (XLR, bal.) |
| 200 mV, 2.2 kohms (6.3 mm jack, unbal.) | |
| Power supply | |
| Receiver: | 100-240 V AC, 50/60 Hz via supplied power unit |
| Power consumption: | 10 W |
| Microphone: | 2 x 1.5 V battery, type AA |
| Battery life: | approx. 10 hours |
| Dimensions, weight: | |
| Receiver: | 155 x 210 x 45 mm (W x D x H), 1 kg |
| Microphone: | 50 x 265 mm (D x L), 280 g |

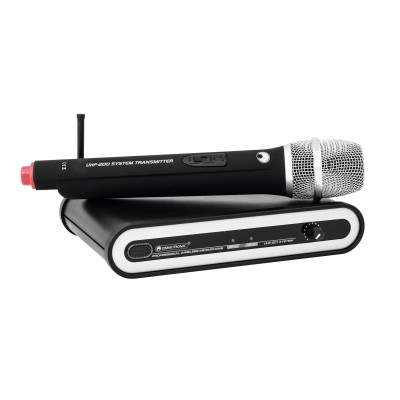

OMNITRONIC UHF-201 Wireless Mic System 863.420MHz
- Gamintojas: OMNITRONIC
- Prekės kodas: 13063211
- Pristatymas: Išparduota
- 133.98€
