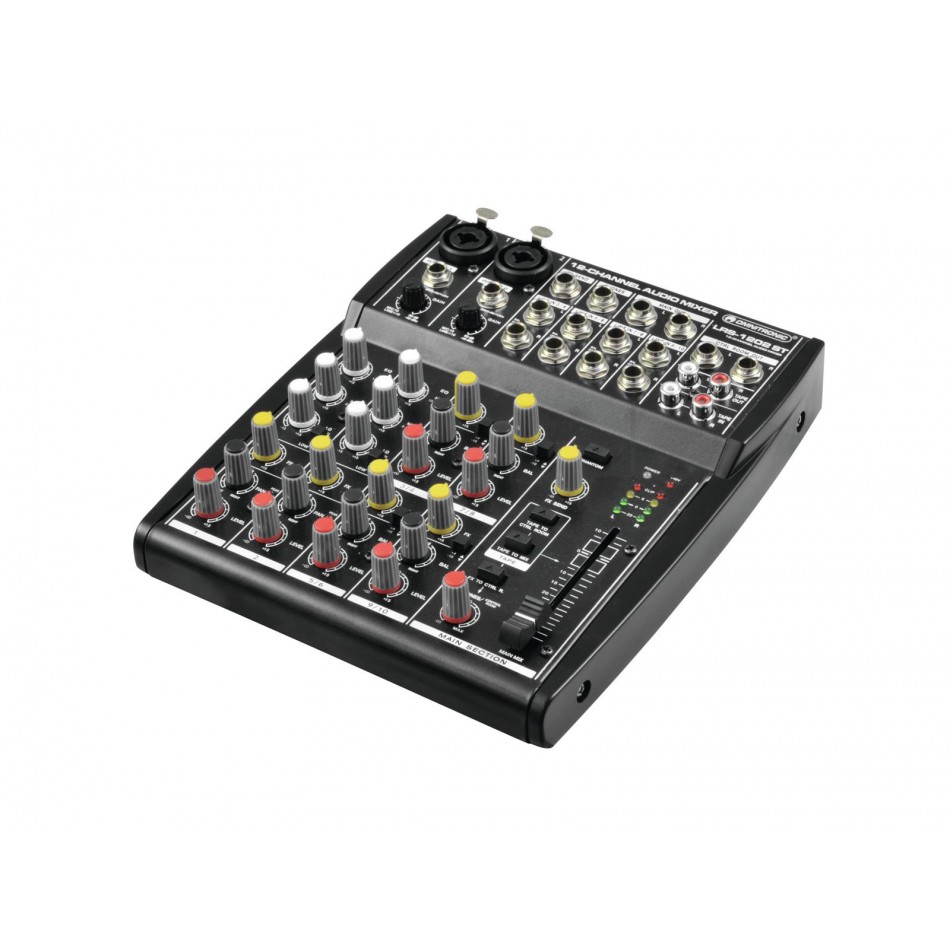

Mikšerinis pultas OMNITRONIC LRS-1202ST Live recording mixer
Live recording mixer with 12 inputs
- 2 mono input channels with gain control, 3-way EQ, low cut and pan control
- 4 stereo input channels with balance control
- Adjustable FX send output
- Inserts for the mono input channels
- Tape input and output
- Separate main mix and control room outputs
- Adjustable headphones output
- Master fader
- +48 V phantom power, can be switched centrally
- Precise 4-digit stereo LED level display
- Operation via supplied power unit
| Power supply: | 2 x 18.5 V AC, 350 mA |
| via supplied PSU | |
| Power consumption: | 10 W |
| Inputs/sensitivity: | |
| Mic, mono | 0.5 mV, combined XLR/6.3 mm jack bal. |
| Insert | 140 mV, 6.3 mm jack unbal. |
| Line In, stereo | 38 mV/150 mV, 6.3 mm jack L/R bal. |
| Tape In | 400 mV, RCA L/R |
| Outputs/level: | |
| Main Out | 800 mV, 6.3 mm jack L/R unbal. |
| Control Room Out | max. 3 V, 6.3 mm jack L/R unbal. |
| FX Send | max. 10 V, 6.3 mm jack unbal. |
| Tape Out | 60 mV, RCA L/R |
| Headphones | 6.3 mm jack unbal. |
| Headphones impedance: | >8 ohms |
| Frequency range: | 20-20000 kHz |
| Distortion: | <0.04 % |
| S/N ratio: | 94 dB |
| Tone control/channel: | |
| Treble: | ±15 dB at 12 kHz |
| Middle: | ±15 dB at 2.5 kHz |
| Bass: | ±15 dB at 80 Hz |
| Dimensions (WxDxH): | 225 x 190 x 50 mm |
| Weight: | 1.6 kg |
| Shipping weight: | 1.90 kg |
Mikšerinis pultas OMNITRONIC LRS-1202ST Live recording mixer
- Gamintojas: OMNITRONIC
- Prekės kodas: 10040226
- Pristatymas: Išparduota
- 149.03€
