A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.
Multifrequency wireless receiver, True Diversity
- Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception
- Operation in the low-interference UHF band
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- System expandable to up to 16 receivers with 16 microphones
- Automatic frequency scan
- Output level control
- Lock function for prevents undesired changes to settings
- Mute mode when signal is absent or too weak
- Rugged metal housing
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- Operating range up to 100m with line-of-sight
- UHF 740 - 764 MHz License-free and approved in large parts of Europe
- Charge status indicator
- Desktop console housing
- (19") 48.3 cm rack installation possible

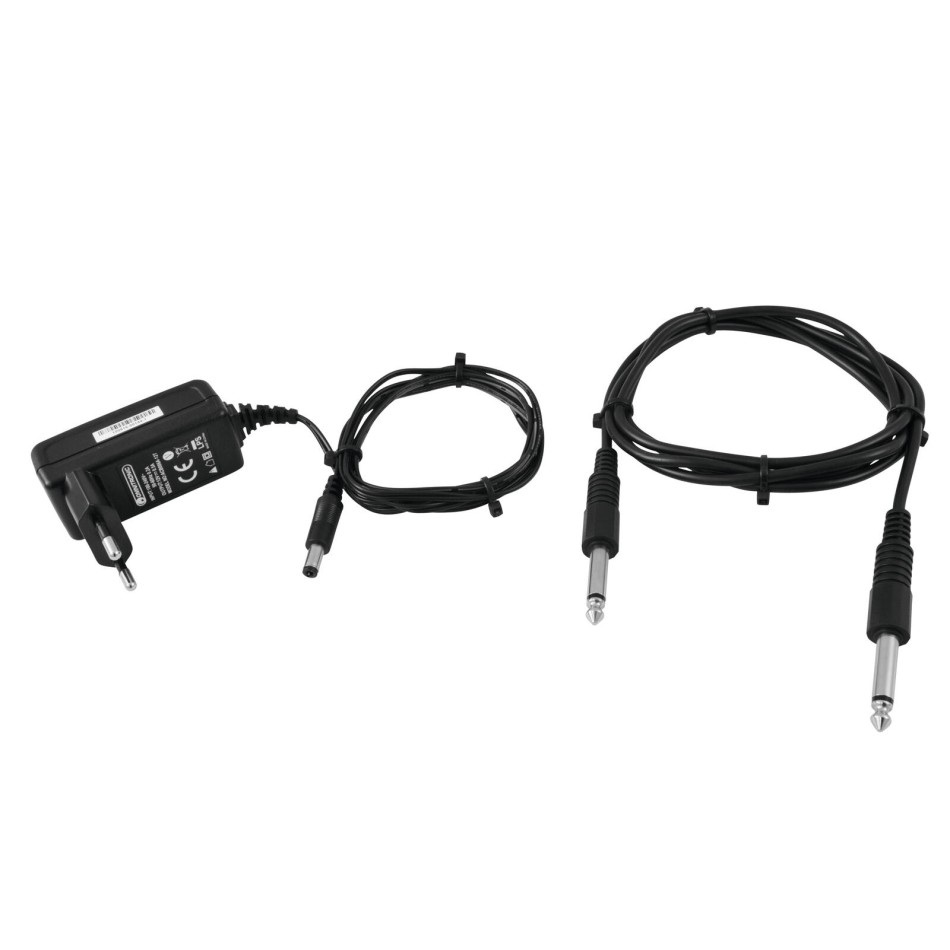

Scope of delivery
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 6.00 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| THD: | <0.6 % at 1 kHz |
| Range: | Range up to 100m with line-of-sight |
| Frequency band: | UHF 740 - 764 MHz |
| Diversity: | True diversity |
| Switching bandwidth: | 24 MHz |
| Frequency stability: | ± 0.0005 % |
| Modulation: | FM |
| Frequency selection: | 192 switchable frequencies |
| Display reading: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency |

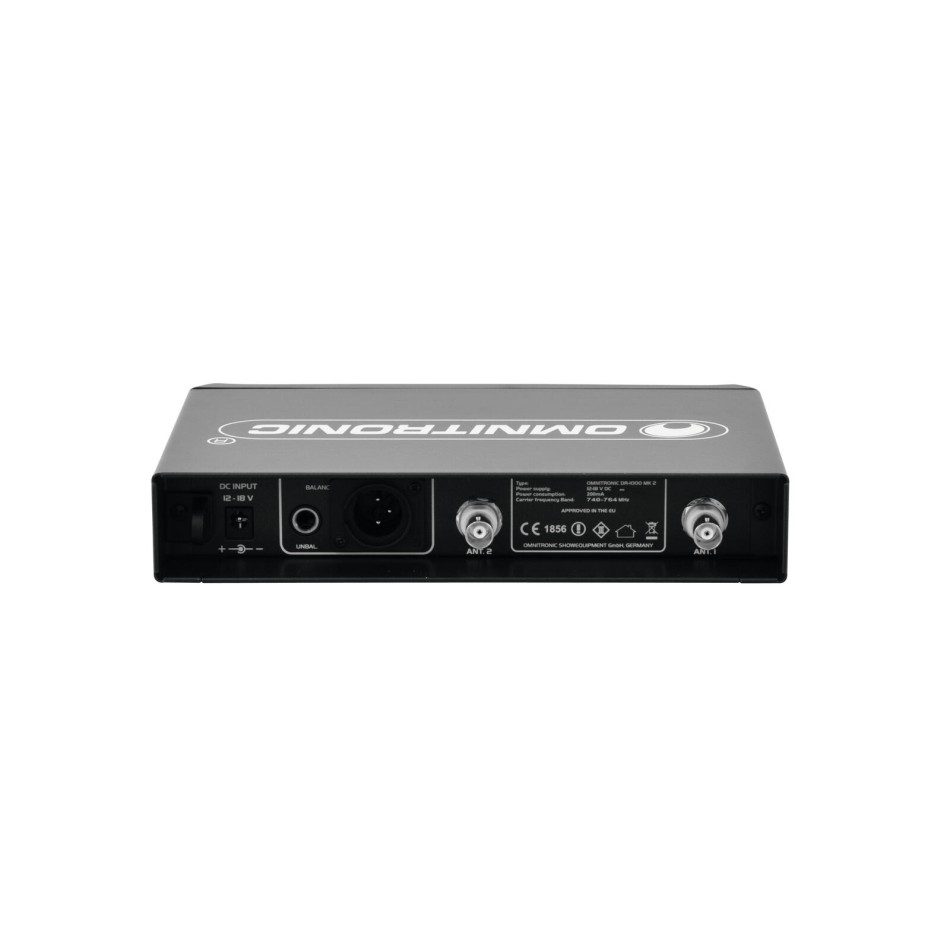

| Connections: | Output: microphone via 1 x 3-pin XLR Output: microphone via 1 x 6.3 mm jack socket (stereo) mounting version |
| Switch: | On/off switch |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible |
| Dimensions: | Width: 21.3 cm Depth: 15 cm Height: 4 cm |
| Weight: | 1.33 kg |

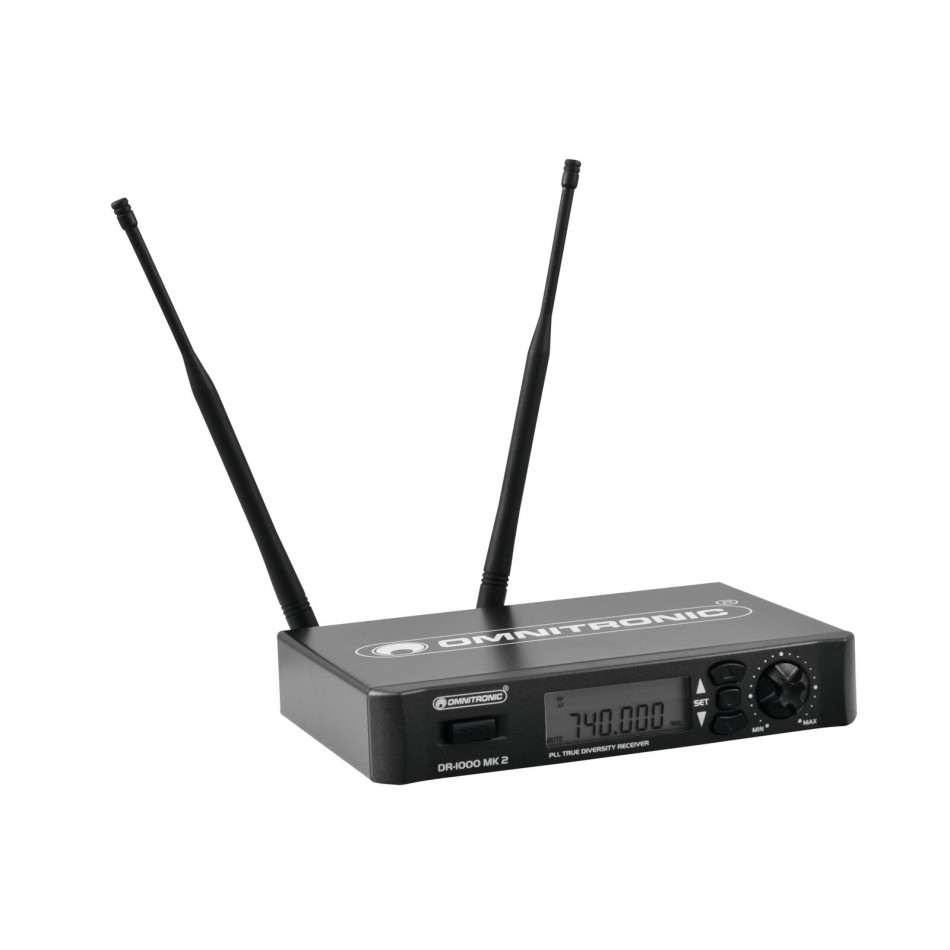

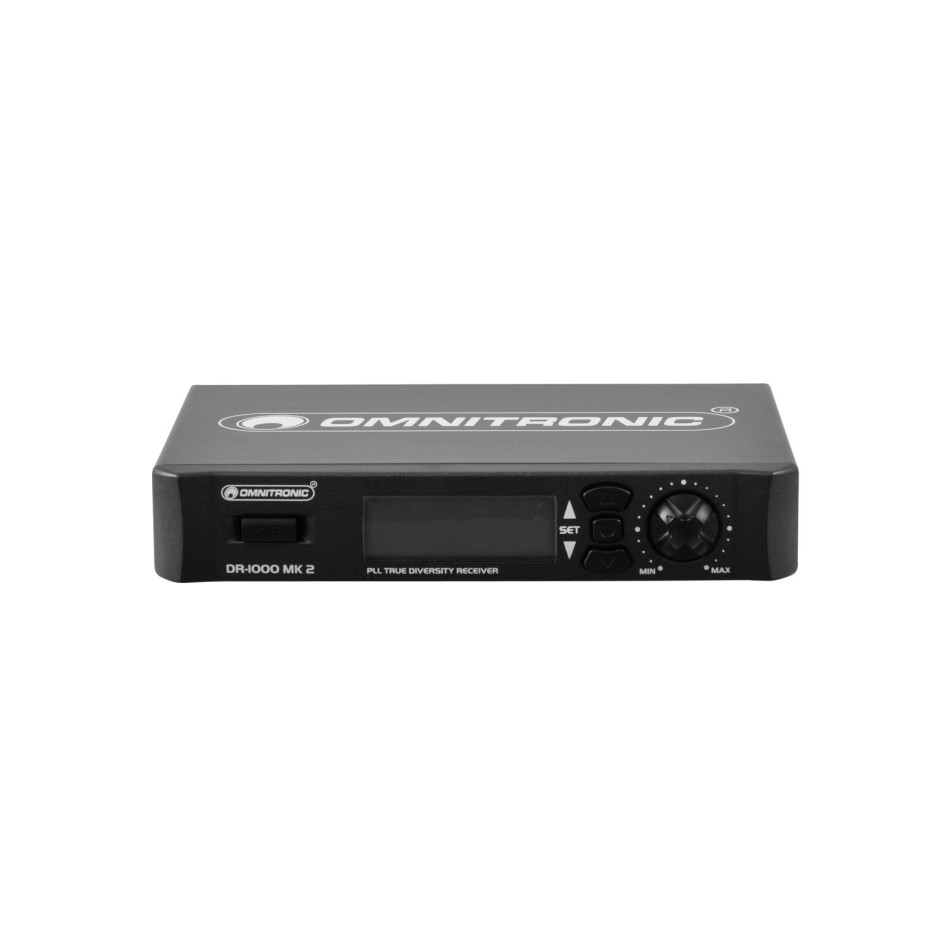

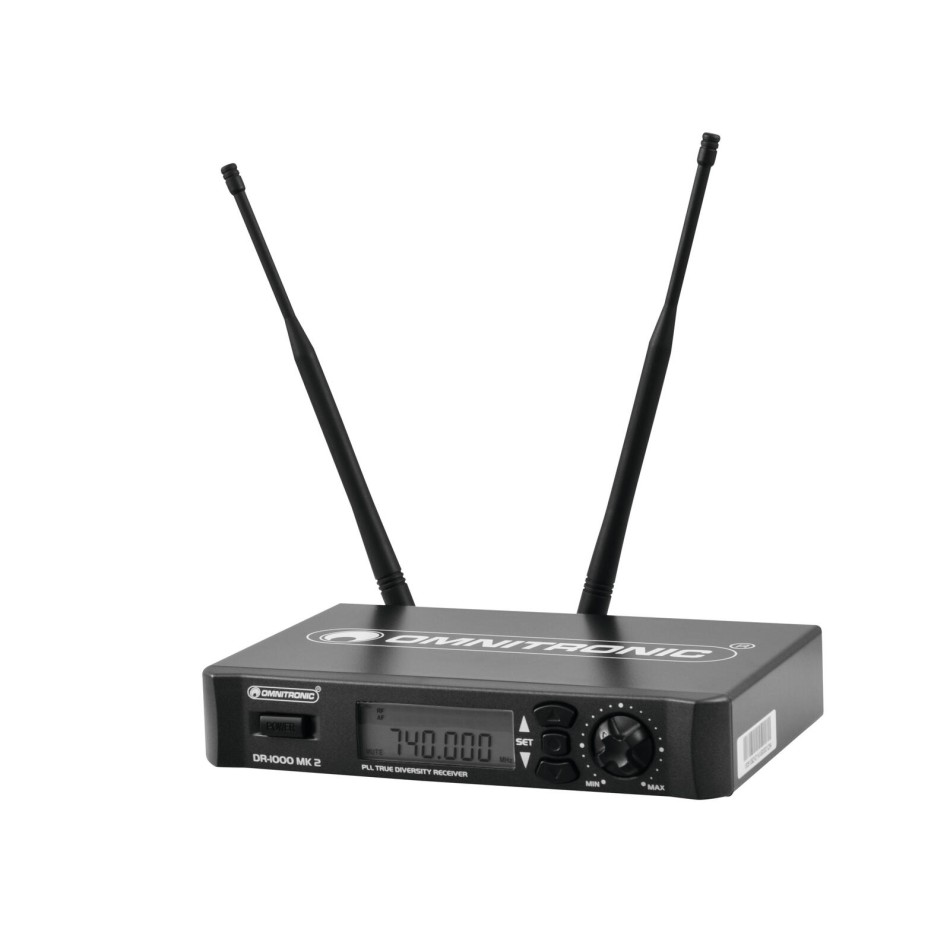

OMNITRONIC DR-1000 MK2 Wireless Receiver
- Gamintojas: OMNITRONIC
- Prekės kodas: 13061092
- Pristatymas: Išparduota
- 308.55€
