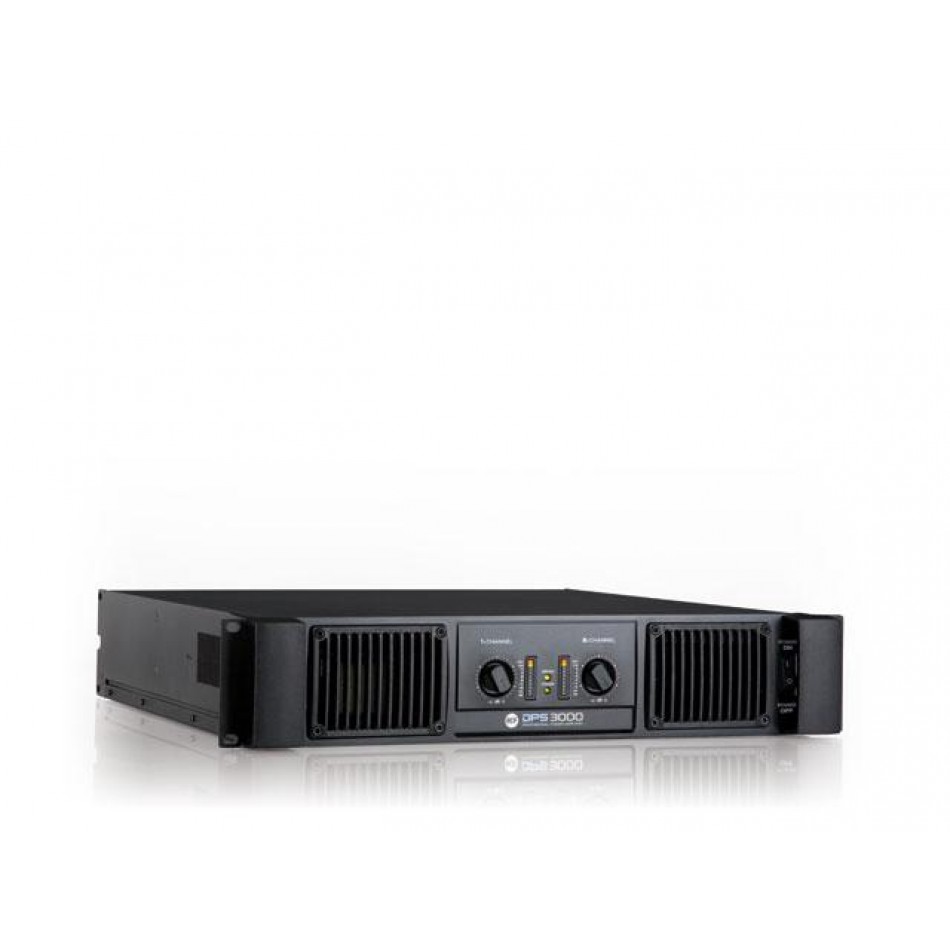

HD klasės stiprintuvas RCF DPS 3000  2x1700 W RMS @ 2 ohm

DPS 3000 is a 2 channel power amplifier that can handle exceptionally high power ratings in a compact and lightweight 2 rack units space.

Thanks to the class HD technology, this amplifier delivers up to 2 x 1700 W RMS @ 2 Ohm (3400 W RMS bridged @ 4 Ohm), weighting just 14 kg.
It comes with a ‘PFC’ (‘Power factor correction’) switched mode power supply which ensures that a predominantly
resistive load is presented to the mains power supply; this also leads to an improved amplifier performance at high output levels. Thanks to its high efficiency heat sinks and variable speed DC fans, the DPS 3000 can withstand the hardest heat conditions ensuring great reliability.

•     Fast response and low distortion
•     Easy to configure in stereo / mono / bridge modes
•     Extensive protective circuits ensure high reliability and operating safety
•     Front panel signal / clip / protect LED indicators
•     Minimum load impedance (stereo / mono): 2 Ohm
•     XLR input connectors
•     SPEAKON output connectors
•     Switchable limiter
•     PFC (Power Factor Corrector)
•     2 unit 19" rack, low weight for easy transportation

Amplifier Specifications

•     Power output stereo 2Ω: 2 x 1700 W rms
•     Power output stereo 4Ω: 2 x 1200 W rms
•     Power output stereo 8Ω: 2 x 800 W rms
•     Power output bridged 4Ω: 3400 W rms
•     Power output bridged 8Ω: 2400 W rms
•     Frequency Response +/- 0.25dB: 20 Hz ÷ 20 kHz
•     Signal/noise rate: 108 dB
•     Damping factor: > 1000
•     Slew rate: 55V/μS

Input Section

•     Input connector: xlr
•     Input sensitivity: 1.4 dBm/V RMS

Output Section

•     Output connector: Speakon

System Parameters

•     Cooling: Temperature-controlled fan
•     Protections: Temp., DC, RFI, short-circuit
•     Voltage gain: 32 – 26 dB
•     Amplifier class: HD

Power Requirements

•     Operating voltage: 90 ÷ 245 V (50 / 60 Hz) V ~ Hz
•     Power consumption: SMPS W
•     Power factor (cos φ): 0.95 from 200 W to full power

Physical Specifications

•     Height: 88/3.4 mm/inch
•     Width: 482/18,9 mm/inch
•     Depth: 420/16.5 mm/inch
•     Net Weight: 14/30.8 kg/lbs
